레이저 트리 20W 광학 파워 헤드 에어 어시스트 키트 CNC TTL 모듈 절단 조각 공작 기계
通常価格 2,117,100ウォン
販売価格 1,037,370ウォン
韓国内配送料 国内送料無料
オプション


商品購入についてのご案内


・こちらで紹介している商品はワンモアが販売する商品ではありません。

・この商品の詳細情報、原産地、などは下記の【元の商品ページで開く】をクリックすると通販サイトで確認できます。

・この商品は韓国通販サイト【Auction.co.kr】の情報提携によって掲載しています。

・掲載されている商品のすべてが購入代行可能な商品ではなく、国際発送ができない商品や輸入ができない商品もあります。

・こちらで紹介している商品のイメージや詳細内容につきましては一切責任を負いません。

・購入希望の場合は販売サイト情報をご確認の上、「購入代行サービスお申し込み」よりご依頼ください。



[01]LT-4LDS-V2-EU

[02]LT-4LDS-V2-US

[03]Air Pump-EU

[04]Air Pump-US








고출력 20W 광 파워 레이저 헤드

By LASER TREE

Enjoy the Fun of DIY

1. 4-Beam compression technology, real 20W optical power laser module.


2.Cut 10mm bass plywood: 3mm/s, 100% power,  by one pass

Cut 8mm black acrylic:     3mm/s, 100% power,  by one pass

   Cut 5mm MDF:                   3mm/s, 100% power,  by one pass


3. With professional air assist to get clean-cut edges, improve cutting performance


4. Excellent heat dissipation design, keep stable cutting ability and extend service life


5. Only 300~400mw power decrease with 100% power output in 30mins


6. New eye protective cover design, can effectively filter blue light


7. Upgrade 40mm fixed focus , cutting ability is stronger


8. Support digital（TTL/PWM）and analog modulation


9. Compatible with Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.


4-Beam Compressed Technology

Built-in 4pcs 5W beam compressed laser diodes, 20W optical power laser module


Professional Air Assist

With air assist to get clean-cut edges, and improve cutting performance




Note:


Please ensure that the air pump is turned on before you start cutting.
If not, the smoke will contaminate the lens.


High Precision Engraved Resolution 0.08mm

Use innovative compression technology to make the spot smaller and powerful


Stainless Steel Cutting


New Protective Cover Design

With a laser protective cover, it can effectively filter blue light when engraving or cutting

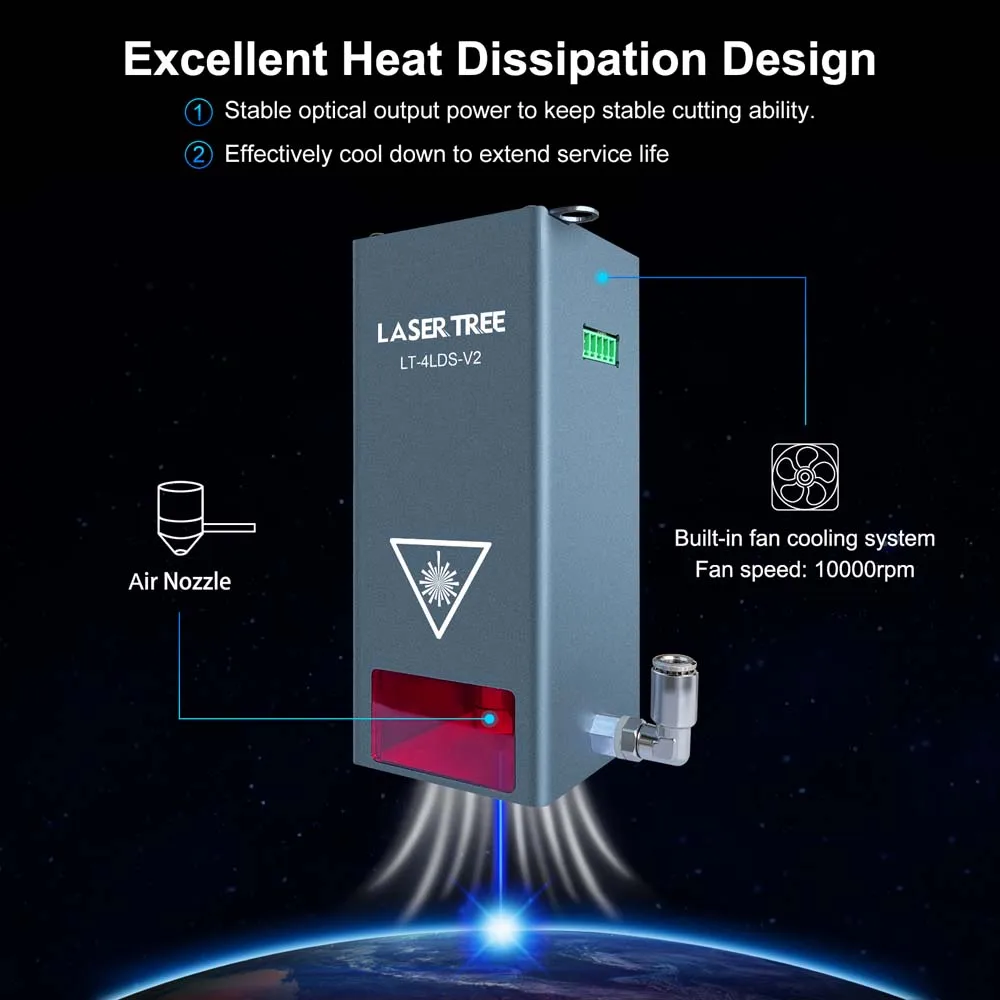

Excellent Heat Dissipation Design

?Stable optical output power to keep stable cutting ability

?Effectively cool down to extend service life


High Stable 2EDG3.81 Connector

Up to 7A Operating Current


Support Digital(TTL/PWM) and Analog Modulation

Reference Settings for Cutting

For cutting work, the ideal position of the focal point is in the middle of the material, the cutting focal point of LT-4LDS-V2 is 40mm, the length of the air nozzle is 32mm, so the focal point position is 8mm below the air nozzle.
For example, if you want to cut 10mm plywood, the distance from the air nozzle to the surface of the material should be 8mm-10mm/2=3mm
Put a 3mm thick focus fixing plate between the nozzle and the board for the best cutting point(Because the focus fixing plate we provide does not have a 3mm specification, the picture shows 4mm)

Cutting Reference Data


Note:


With driver adapter and power adapter, compatible with various 12V 24V DIY cutting engraving machines.

LT-4LDS-V2 Instruction Manual: https://www.aliexpress.us/item/3256804891736180.html

Air Pump:


Description

The air pump is an essential part of the laser module with air assisted.
It provides a steady high-pressure airflow to blow away smoke and obtain clean-cut edges.
In addition, it can improve the efficiency of laser processing and thus save your time.


Features：

1. High-quality materials: metal nozzle, resisting high temperature

2. Large and steady air output: Adjustable airflow of 0-30L/min, blowing away smoke and residue produced during laser processing, cut deeper、 faster and cleaner

3. Low Noise & Low Vibration: Anti-slip& damping feet keep the body stable and reduce the vibration noise effectively

4. Rapid Heat Dissipation: Aluminum alloy shell, strong heat dissipation, long lasting and more durable

5.Wide Compatibility: With two sizes of nozzles (PC6-M8 & PC8-M8)and hoses( φ8x6mm & φ6x4mm), compatible with most of the laser module‘s nozzle interfaces on the market. If it is a special size module air inlet nozzle just need to replace the appropriate air tube and air outlet nozzle.

6. Plug and Play: please select the correct version of EU/US/AU plug.


Note:

If you need product instruction manual, please contact us, thank you!


Because the air pump is close to 2kg, we sell it separately from the laser module. Please confirm that you have selected the laser module or air pump you need. Thank you!
