FTTH CATV 광 리시버 하이 레벨 파이버 WDM 컨버터 듀플렉스 커넥터 미니 모드 2 출력 RF 인치
|
|||||||||||||||||
| 商品購入についてのご案内 | |||
|
|||

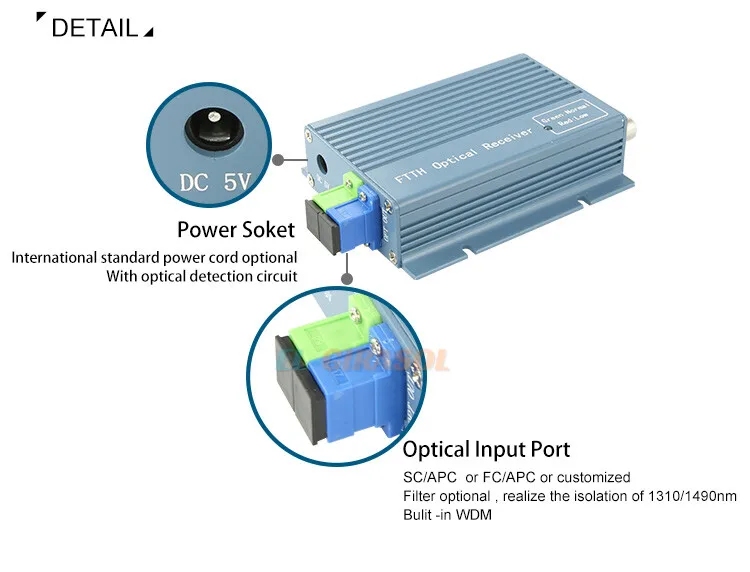

FTTH CATV Optical Receiver High Level Fiber WDM Converter Duplex Connector Mini Mode With 2 Output RF Inch
-
Type: FTTH optical receiver
-
Input optical power (analog signal): -9~+2dBm
-
Input optical power (digital signal): -18~0dBm
-
Output level: >80dBuV
-
Optical connector: SC/APC,SC/UPC
-
Type: FTTH optical receiver
-
Wavelength: 1490/1310/1550nm
-
RF Frequency range: 40~862&1006MHz
-
Applications: FTTP,FTTH
| Item |
Parameter |
Supplement |
|
| Wavelength |
(nm) |
1260~1620 |
|
| 1540~1560 |
WF/WD |
||
| Optical output |
(nm) |
1310,1490 |
WD |
| Optical input range |
(dBm) |
+2~-10 |
Analog TV |
| +2~-18 |
Digital TV |
||
| Return loss |
(dB) |
≥45 |
|
| Bandwidth |
(MHz) |
47~862 |
|
|
|
(dB) |
±0.75 |
|
| AGC range |
|
0--9dBm |
Pin:-7.0~+2.0dBm |
| AGC character |
dB |
≤±0.5 |
|
| Output level |
(dBuv) |
≥79 |
OR20A 1 port Pin:0~-9.0dBm |
| ≥75 |
OR20A 2 ports Pin:0~-9.0dBm |
||
| Output level control |
(dB) |
0-20 |
MGC |
| Return loss |
(dB) |
≥14 |
47-862MHz |
| Output impendence |
(Ω) |
75 |
|
| Output port |
1/2 |
|
|
| CNR |
(dB) |
≥51 |
Pin=-2dBm |
| CTB |
(dB) |
≥61 |
Pin=-2dBm |
| CSO |
(dB) |
≥60 |
Pin=-2dBm |
| Supply voltage |
(V) |
+8VDC |
|
| Consumption |
(W) |
≤3 |
+DC8V,250mA |
| Work temperature |
(℃) |
-20~+60 |
|
| Dimension |
(mm) |
79*98*25.5 |
|
