Wireless Remote Control RF 433mhz Relay Receiver DC 3.6V 6V 12V 24V 1CH Module With 2buttons Transmi
通常価格 48,600ウォン
販売価格 17,010ウォン
韓国内配送料 国内送料無料
オプション


商品購入についてのご案内


・こちらで紹介している商品はワンモアが販売する商品ではありません。

・この商品の詳細情報、原産地、などは下記の【元の商品ページで開く】をクリックすると通販サイトで確認できます。

・この商品は韓国通販サイト【Auction.co.kr】の情報提携によって掲載しています。

・掲載されている商品のすべてが購入代行可能な商品ではなく、国際発送ができない商品や輸入ができない商品もあります。

・こちらで紹介している商品のイメージや詳細内容につきましては一切責任を負いません。

・購入希望の場合は販売サイト情報をご確認の上、「購入代行サービスお申し込み」よりご依頼ください。



QAR
KT05
QAR KT05

Wireless Remote Control RF 433mhz Relay Receiver DC 3.6V 6V 12V 24V 1CH Module With 2buttons Transmitter For LED Lamp Light DIY

?Technical Data Of Transmitter:

? ?Operating frequency: 433MHz
Power by 2 Pcs 3V CR2016 Battery ?(Battery ?included )
Material: PVC;
Button: 2 buttons;
Size: 60mm x 30mm;
Operating voltage: 3V ;
Operating Current: 12mA;
Transmitting power: 10mw;
Modulation mode: ASK (AM).
Encoding type: Learning.
Transfers distance: 20~50m

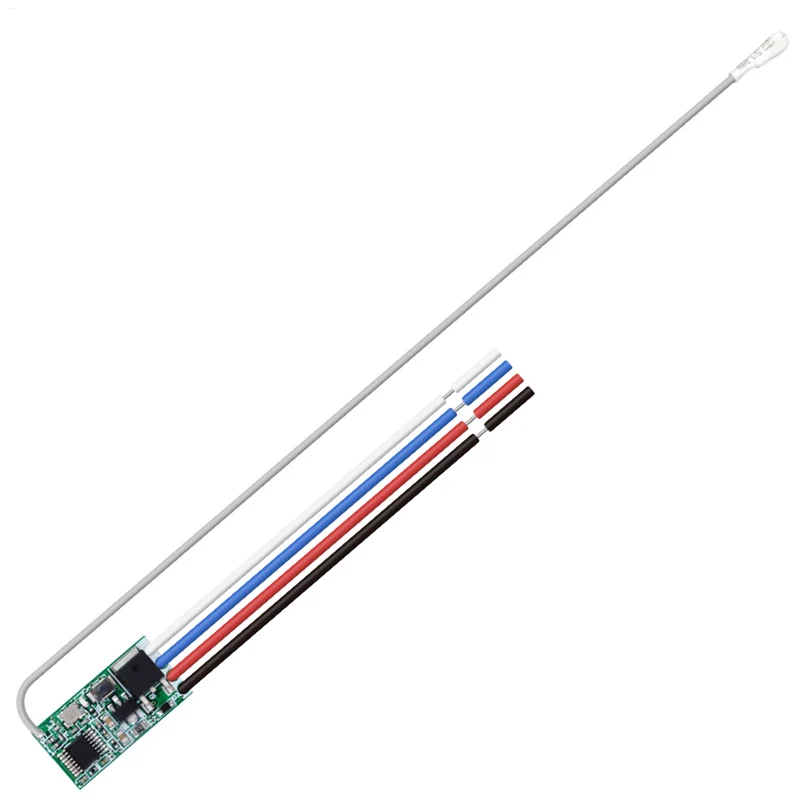

Technical Data Of Receiver Module:

? ? ?Input?Power:DC 3.6~24V
Max current:3 A
RF?Frequency:?433Mhz
Working temperature:-30~+80
RF?working?mode:superheterodyne
Receive?sensitivity:?>97dbm
Transmitting?distance:?more than 50 m?(?open?space)
Remote?storage:10pcs
Support?remote?type:?Learning?code?1527code,?Fixed?code(Rolling?code?can?be?design)
Working?mode:Momentary,?Toggle,?Latching
Wiring?type:fixed?termina
Dimension?of?PCB: 22.5 x 11?(mm)

Note:The products in our store all work in 433Mhz.We can not make sure that different frequency product can connect with each other.If you have any questions about our products,please ask our customer service.We are always willing to help.

Perfect Craft & Detail Control





choose 3 options to place a order

Package? 1 include: Only 1 Pcs? *DC 3.6~24V Receiver Module

Package 2 include: Only 1 Pcs? *1?pcs? 2Buttons Learning mode Remote control

Package 3 include: 1 Pcs? *DC 3.6 V~24V Receiver Module
1 Pcs? *Remote control(include battery)

Wiring Diagram


operating mode

You can match the Transmitter?with the Relay Receiver?Module? in 3?modes.

Momentary Mode:

1. Press and hold one button, relay will turn on;

2. Release the button, this relay will turn off.

Toggle Mode:
1. Press button "A", relay will turn on;

2. Press button "A" again, this relay will turn off.

Latched mode:

1. Press button "A", relay will turn on;

2. Press button "B", this relay will turn off.

Delete the existing data about operating modes

Press the learning button (on the Receiver) 8 times. The existing data will be deleted succeed.

Note:

1. When you receive our products, it may set in one remote mode randomly, that because each product was tested before it can be arranged to shipment. So, please delete the existing data to first use.

2. After deleted the data, all the remote controls cannot work any more.



Set up

Set up(Momentary)

1. Press the learning button(on the Receiver) once. Wait for 3 seconds;


2. Press one button on the remote control. Wait for 3 seconds. Succeed.

Set up(Toggle)

1. Press the learning button(on the Receiver) twice. Wait for 3 seconds;


2. Press one button on the remote control. Wait for 3 seconds. Succeed.

Set up(Latched)

1. Press the learning button(on the Receiver) third times. Wait for 3 seconds;


2. Press button "A" on the remote control. Wait for 3 seconds.


3. Press button "B" on the remote control. Wait for 3 seconds. Succeed.

*If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*


*We have our own factory.Please let us know if you have some OEM projects.We are willing to get a cooperation with you.*
