Product introduction:?

RXC6 Superheterodyne decoding learning code wireless receiving module, is a high cost performance of receiver module of ISM frequency band.Built-in data decoding circuit, can easily achieve the development of wireless products.Output way point move, self-locking, interlocking, adapted to different users.USES the mode of code matching with the remote control, can be input2260, 2262, 2240, 1527, etcMany chips of the remote control, easy to form a complete set.

Product features:

(1)Receiving sensitivity to 110DBm.(2) working frequency: 315 MHZ;433.92 MHz.330 MHZ.390 MHZ.418 MHZ (special frequency can be customized according to customer requirements)

(3) the power supply voltage input range: 3.3 V to 5.5 V.

(4) low power consumption, 5.0 V @ 433.92 MHz, 3.8-4.1 mA;5.0 V @ 315 MHZ,

2.5-2.8 mA;Continuous data transfer rate to 2.4 K (Manchester code)

(5) good selectivity and stray radiation inhibition ability, easy to through international CE/Fcc certification;

(6) good capable of suppressing the vibration radiation, can work with multiple receiving module (that is, the single charge) and do not interfere with each other together use does not affect the receiving distance.

(7) temperature range: - 30-85 ℃, even under the harsh environment temperature can work normally;

(8) 28 * 12.5 * 5.00 (mm).

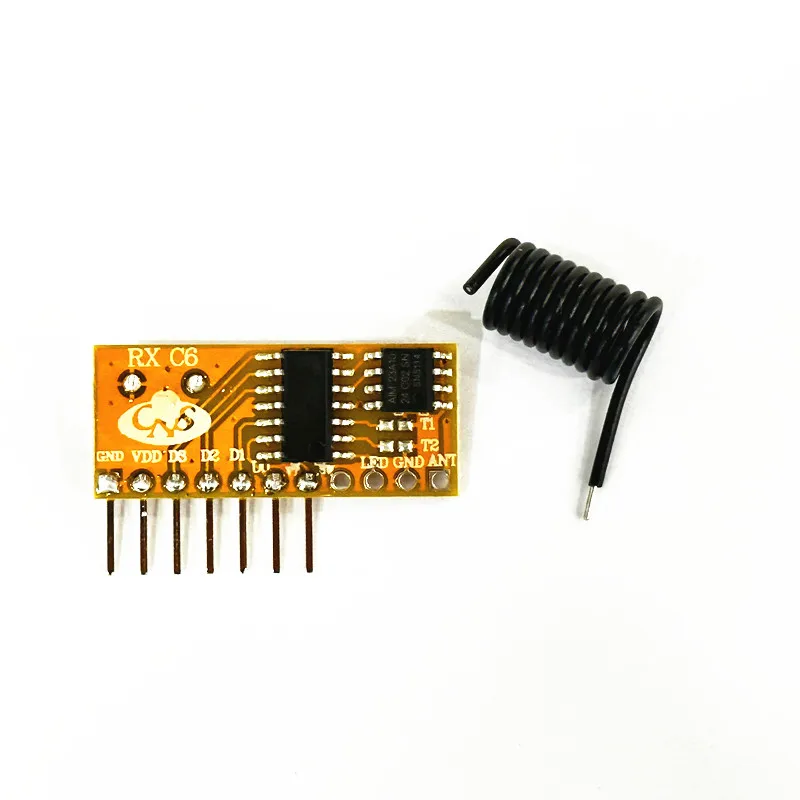

From left to rightANT,GND,LED,SW,VT (Can don't),D0,D1,D2,D3,VDD,GND

ANT:The antenna

GND:The power to

LED:But the external light

SW:An external study button

VT:Remote signal instructions, data public end

D0 - D3 Feet: data

VDD:positive

GND: the power to

(10)Output:pointsPoint move, self-locking, interlocking is optional;

1.By default,T2 and T1 dangling)Is inching mode, have the effective signal input, the corresponding output signal output, automatic stop when no output signal effectively.

2. The plate on the back of the grounding (T2 and T1 dangling) is the lock mode.Have effective signal input, the corresponding outputTurn signal state, before the output into a high level of low level, and vice versa.

3.Plate suspended (T2, T1 grounding) is on the back of interlock pattern.Have effective signal input, the corresponding outputSignal output, the other closed.The signal;When there is a valid signal input,VT output high level, effective signals disappear after VT is the output low level.

The method of code:

Short pressLearn key for 2 seconds,learningIndicator lightatSaid, has entered the study status;Any learning release button, press the remote control- aKey indicator flashes4Time says learning success, and exit the learning mode.

Methods the qing code:

Continue to hold the key study.Indicator lightwillNormally on, hold down about8 seconds after lights out,Code has been removedsuccessful.

Scope of application:

(1) auto remote control door switch (RKE);(2) remote control door machine,(3) wireless security alarm system;(4) remote control curtain machine;(5) wireless industrial controller;(6) wireless data transmission.

Remark:

The antenna as far as possible unbend, away from the screenClothing, high pressure, and the interference sources;

Receive frequency when using, decoding way should be matched with the launch
