범용 무선 원격 제어 스위치 릴레이 수신기 모듈 및 RF 433 Mhz 원격 제어 AC 85V 250V 110V 220V 2CH 433
|
|||||||||||||||||
| 商品購入についてのご案内 | |||
|
|||
1 Piece KR2202
1 Remo Control KT05
KR2202 and KT05
433Mhz Universal Wireless Remote Control Switch AC 85V~250V 110V 220V 2CH Relay Receiver Module and RF 433 Mhz 1527 encoding Remote Controls
Application areas:
Remote control garage door Remote control house door Remote control Lamp Remote control curtains Remote control Fun and other remote control device.
Order Package Include:(3 order model can be chosen)
Order Model 1:
1 Piece KR2202
Details:
Receiver Switch Module (KR2202)1 Piece with Plastic Shell
Order Model 2:
1Piece Remote Control KT05
Details:
Remote Control Learning Code EV1527 1 Piece
Order Model 3:

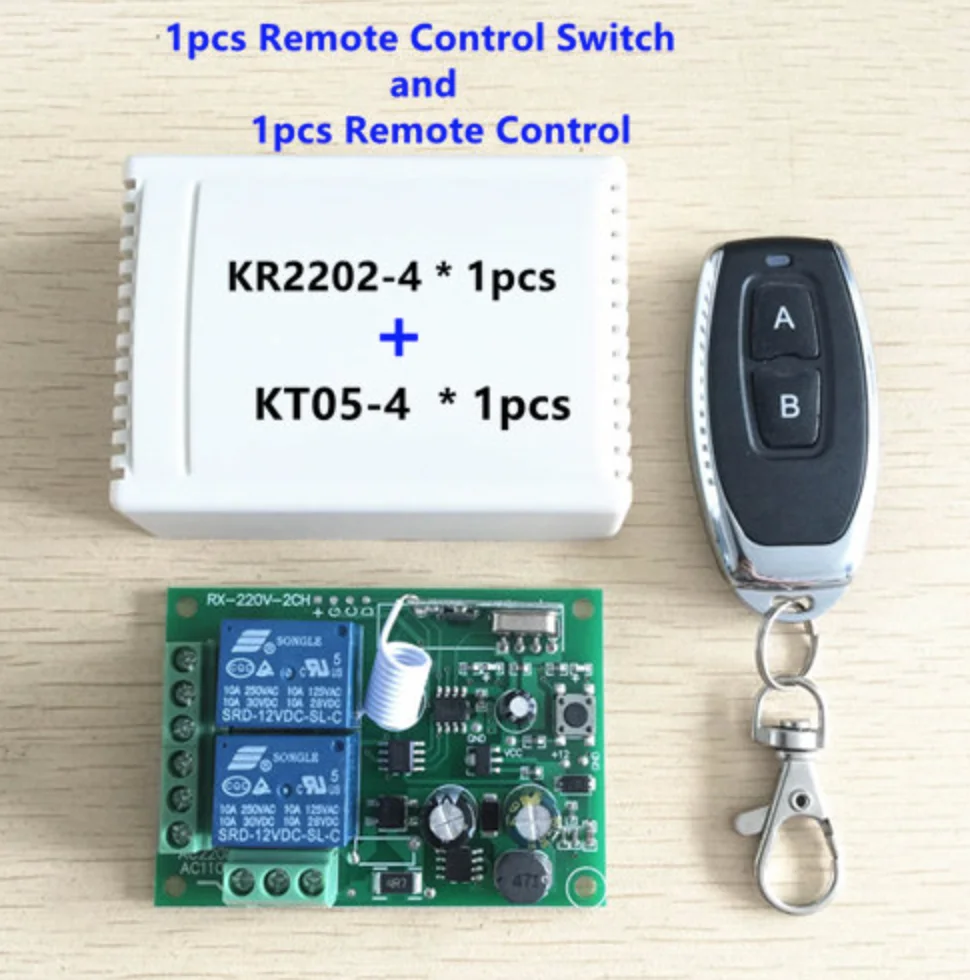

KR2202 and KT05
1Piece KR2202 + 1Piece Remote Control
Details:
Receiver Switch Module (KR2202-4)1 Piece with Plastic Shell
Remote Control Learning Code EV1527 1 Piece

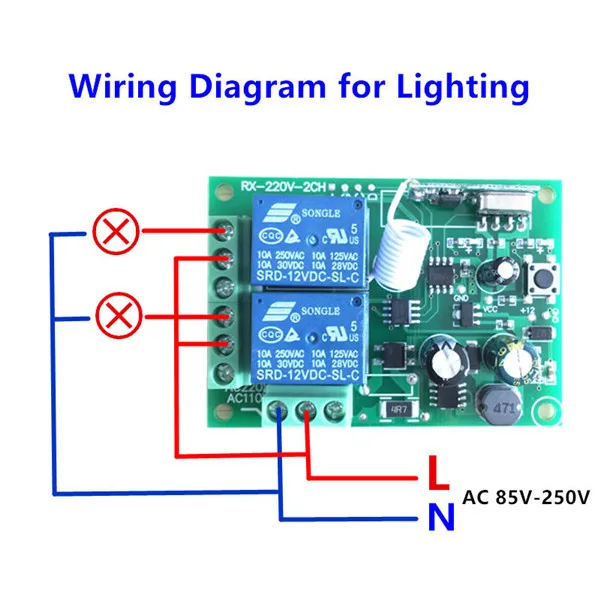

The way of Circuit Connection:
Please Note: the Receiver Switch Module part number KR2202-4 have 2 ways of working mode.The OUTPUT signal have 2 Voltage Level. It decided by the IMPUT of the COM pin.
OUTPUT mode 1:
Connect the COM to the Power Supply by AC85-250V, the Output pin will create AC85-250V Signal. Please check below diagram for better understanding.
OUTPUT mode 2:
Connect the COM pin with any other Additional Power Supply,the output will create the same Voltage signal as the Additional Power Supply. it can be Direct Current or Alternating Current. Decided by the Additional Power Supply.
BUT, Please note: the additional Power Supply should be in the range of the Receiver Switch Module-(DC5-12V, AC 85-240V).
Please check below diagram for better understanding.

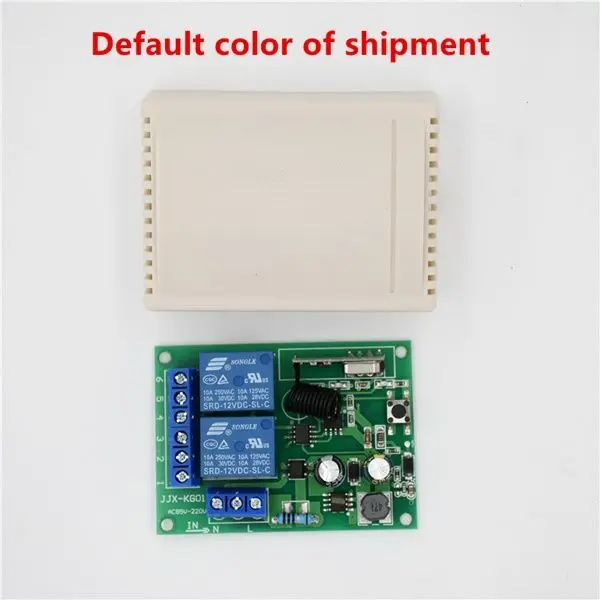

Product Photo:
Please note that:
The color of the default shipment is shown in the figure. If you need another color, please contact customer service.
IMPORTANT INFORMATIONS:
You can match the Remote Control with the Receiver SwitchModule (KR2202-4) in 2 mode.
Remote mode 1:
Momentary/Jog
Press and hold one key->ON; Release the key->OFF
Details:
Hold one key , the corresponding channel is working /ON;Then Release your finger the channel turns to stop/OFF .
Remote Mode 2:
Toggle/Self-Lock
Press one Key->ON; Press the same key again->OFF
Details:
Press one key once , the corresponding channel turn working/ON;
Press the same key once again the same channel turn to stop/OFF .
Remote Mode 3:
Latched/Inter-Lock
Press one Key once->ON; Press another key once->OFF
Details:
Press one key once( take A key for example), the corresponding channel (like channel 1) turn to working/ON;
Press another key once(take B key for example), the same channel turn to stop/OFF. At the same time, another corresponding channel(like channel 2) turn to working / ON .
How to set the remote mode:

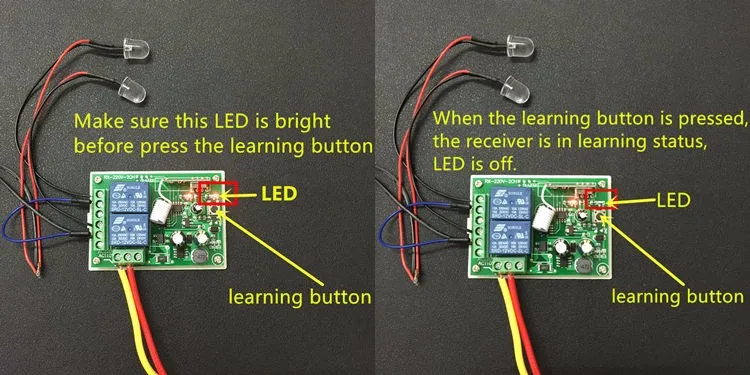

Please find the Learning Key of the Receiver Switch Module by checking below photo:
Note: When you receive the product, it maybe set in one remote mode randomly, that because each product got test when it can be arranged to shipment.So, if you want to select the remote mode you like, please Delete the existing data for the first step:
How to
Delete the existing remote controls data?
Press the learning key
on the Receiver Switch Module board
8 times
, then wait for the LED indicator on the board flash for 7 times, the existing data are deleted successfully. ( if the LED indicator on the board doesn"t Flash, Please check the Power Supply status, make it right, and try more times)
How to
Set the Remote Mode:
1-Momentary/Jog Mode:
STEP 1
Push and release the learning
on the
Receiver Switch Module board RS2202-4
ONCE.
Wait for a moment , the LED Indicator on the board will
turn off
, indicating you entered the learning state.
STEP 2
Push and release ONE KEY
(any key you like) on your
Remote Control
, the
LED
Indicator
on the
Receiver Switch Module board RS2202-4
will flash on then off indicating the remote control"s key was learned.
STEP 3
Press and release the other Key
on the
Remote Control
, watching the
LED
Indicator
on the
Receiver Switch Module board RS2202-4
on and off again.
Wait 3 seconds, the on-board LED will turn on again , indicating system is ready for use.
2-Toggle/Self-Lock:
STEP 1
Push and release the learning
on the
Receiver Switch Module board RS2202-4
Twice.
Wait for a moment , the LED Indicator on the board will
turn off
, indicating you entered the learning state.
STEP 2
Push and release ONE KEY
(any key you like) on your
Remote Control
, the
LED
Indicator
on the
Receiver Switch Module board RS2202-4
will flash on then off indicating the remote control"s key was learned.
STEP 3
Press and release the other Key
on the
Remote Control
, watching the
LED
Indicator
on the
Receiver Switch Module board RS2202-4
on and off again.
Wait 3 seconds, the on-board LED will turn on again , indicating system is ready for use.
Product SPECIFICATION:
Electronics Character:
Input Power:AC 85V-250V
Output voltage: Decided By the COM PIN INPUT
Standby Current:<8.5MA
RF Frequency: 433M
RF working mode: superheterodyne
Receive sensitivity: > 97 dbm
Transmitting distance: More than 15 meters
Decoding mode: MCU software decoding
Learnable Transmitters: 1-16 transmitters
Support remote type: Learning code (1527)
Switching Modes:
Both Momentary & Toggle
Wiring type:fixed terminal
Switch Output : normally open & normally closed.
Dimension of PCB
(L,W,H)
35*30*18mm
1 3/8 * 1 3/16 * 11/16"

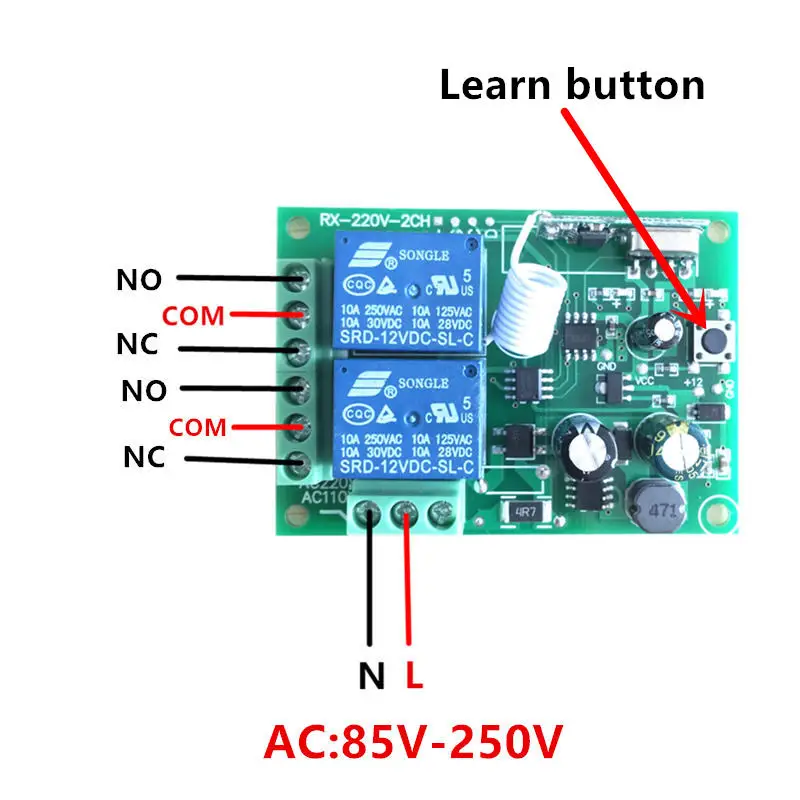

Pin functions:
NO: normal open
COM: common
NC: normal close
**Notice**
Two button transmitters can only be used as toggle or momentary.
One mode per 2 button transmitter.
IMPORTANT INFORMATIONS For Buyers:
1. For the 5 stars Comments:
Dear Customer, you are welcome to Angry Monkey!!If you feel very satisfied when you received your product, please give us 5 stars good comments. it can encourage us to provide better service to you.
Please follow the guide to do so:
Unfortunately, in the case you don"t feel satisfied, please feel free to contact with us. We will try our best to make you satisfy.
BUT, please DO NOT
give us bad comments before you let us know what can we do? The Bad comments
CAN NOT
be modified. Even we make you satisfy finally.
2. Special Note:
Any problem, please contact our customer service, we will do our best to help you.The dispute can not solve the problem, it only lead to everyone"s unfriendly. So we suggest that: PLEASE contact us before making any disputes.
Matters need attention:
Safety considerations:
1. Please Make sure all wires are connected properly, before turn on the power supply, or it may cause damage to the product.
2. Be sure to place it where children can not touch it.
3. Make sure that the work environment is out of contact with water, wet and dusty. It should be placed in an environment suitable for electronic products. Regular inspection maintenance is necessary.
4. When it comes to the use of alternating current with high voltage and high current, the installation and debugging must pay attention to personal safety or seek professional electrician"s help, otherwise it will cause significant personal injury.
Service information:
1. Logistics processing:
Orders will be shipped within 7 days after the payment, if you find the goods are not arrange to the shipment more than 7 days ,please contact the customer service staff.
2. Packing standard:
Packaging photos:
3. Return rule:
Non quality problems will not be adjusted or refund. Please check product information carefully before placing an order to avoid unnecessary loss.When the product quality problems occur, please consult the customer service for more details first.
