※Technical Parameter

1.New AC Receiver
Input Power:AC 85V-250V
Channel:2
Standby Current:<8.5MA
RF Frequency: 433M
RF working mode: superheterodyne
Receive sensitivity: > 97 dbm
Transmitting distance: 20m-50m ( open space)
Remote storage: 20 pcs
Support remote type: Learning code (1527 encoding )
Working mode: Momentary, Toggle,Latch
Wiring type:fixed terminal

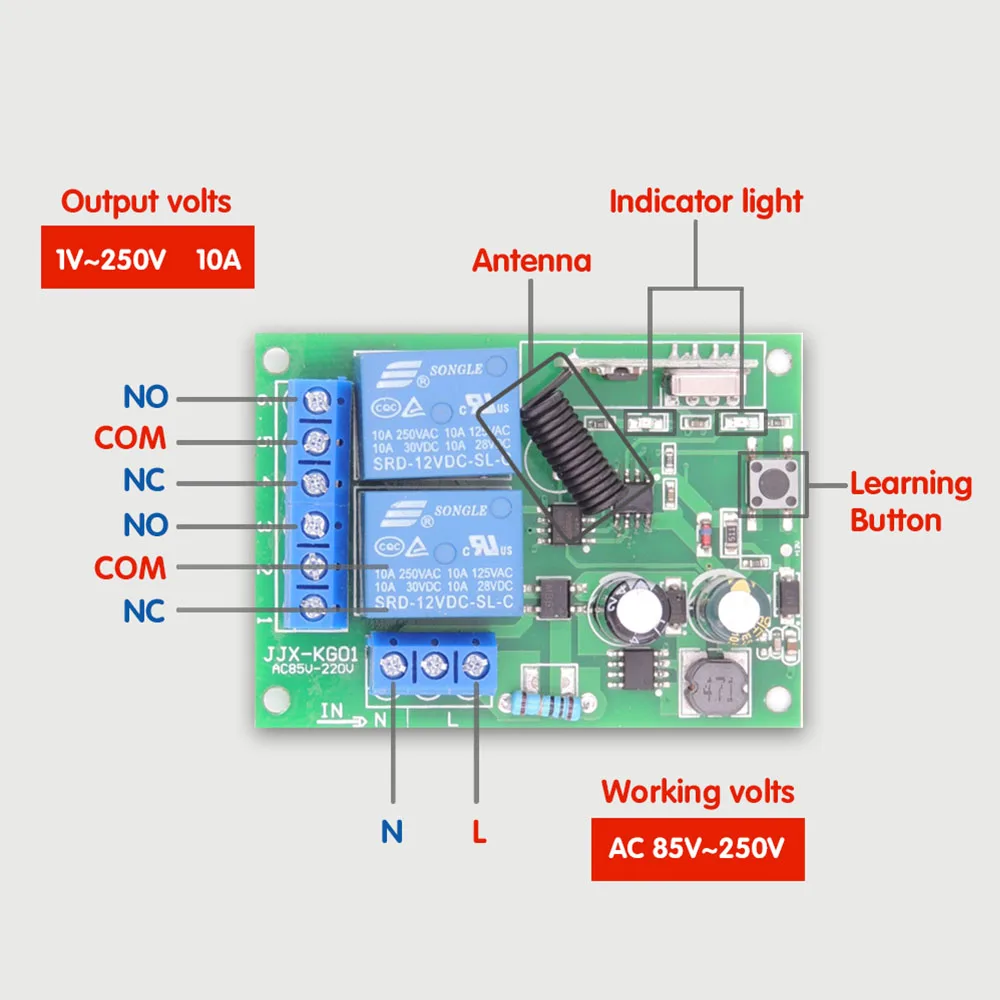

Output Terminal :NO(Normal Open Output) , NC(Normal Close Output) , COM( Common port )

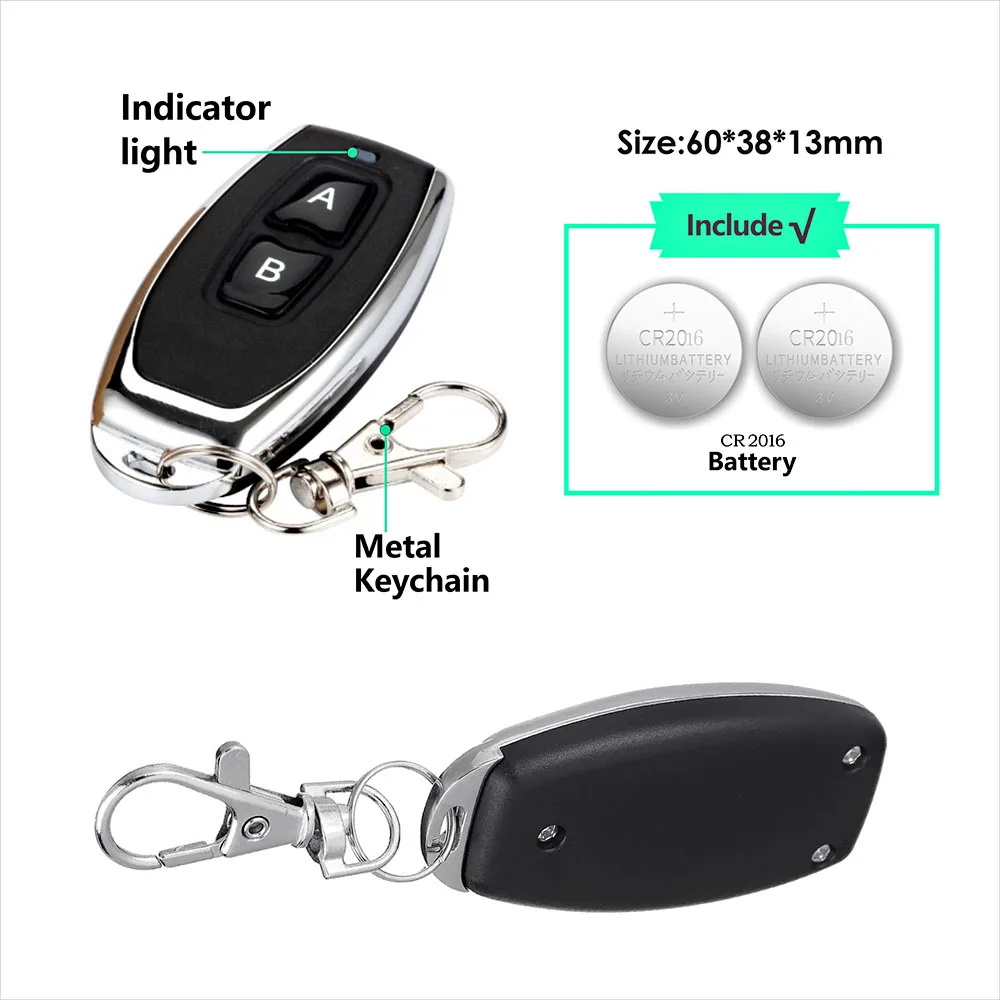

2.Remote Control

2. Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on.You can remotely operate every device connect with the relay receiver through the remote control. such as, garage door, electric door, shutter door, expansion door and electric curtain, Motor, Lamp, lighting, ventilation device, Signal transmission and so on.

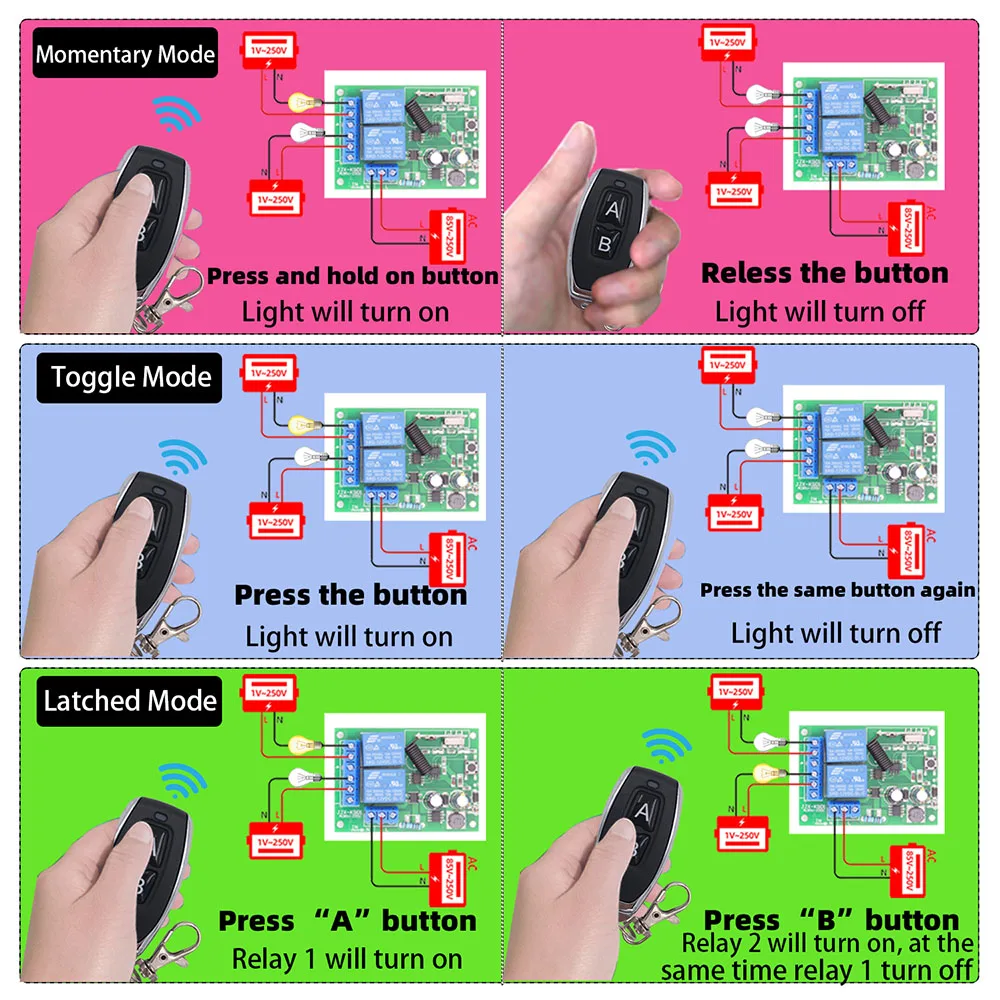

3. Usage(Operation Mode):
Momentary Mode:
1. Press and hold one button, relay "1" will turn on;
2. Release the button, this relay "1" will turn off.
Toggle Mode:
1. Press "A" key, relay "1" will turn on;
2. Press "A" key again, this relay "1" will turn off.
Latched mode:
1. Press "A" key, relay "1" will turn on;
2. Press "B" key, relay "2" will turn on, at the same time relay "1" will turn off.

※How to set up
1.Memontary Mode: Press learning button on the switch 1 time,press any remote button 1 time,succeed
2.Toggle Mode: Press learning button on the switch 2 times,press any remote button 1 time,succeed
3.Latched mode: Press learning button on the switch 3 times,press A button 1 time,press B button 1 time,succeed
※Reset
1.Press learning button 8 times to clean data,then all remotes can not control this receiver
※Note
1,Reset the receiver before you want to change the operating mode of one remote control.
2, After reset, all the remote controls cannot work any more.

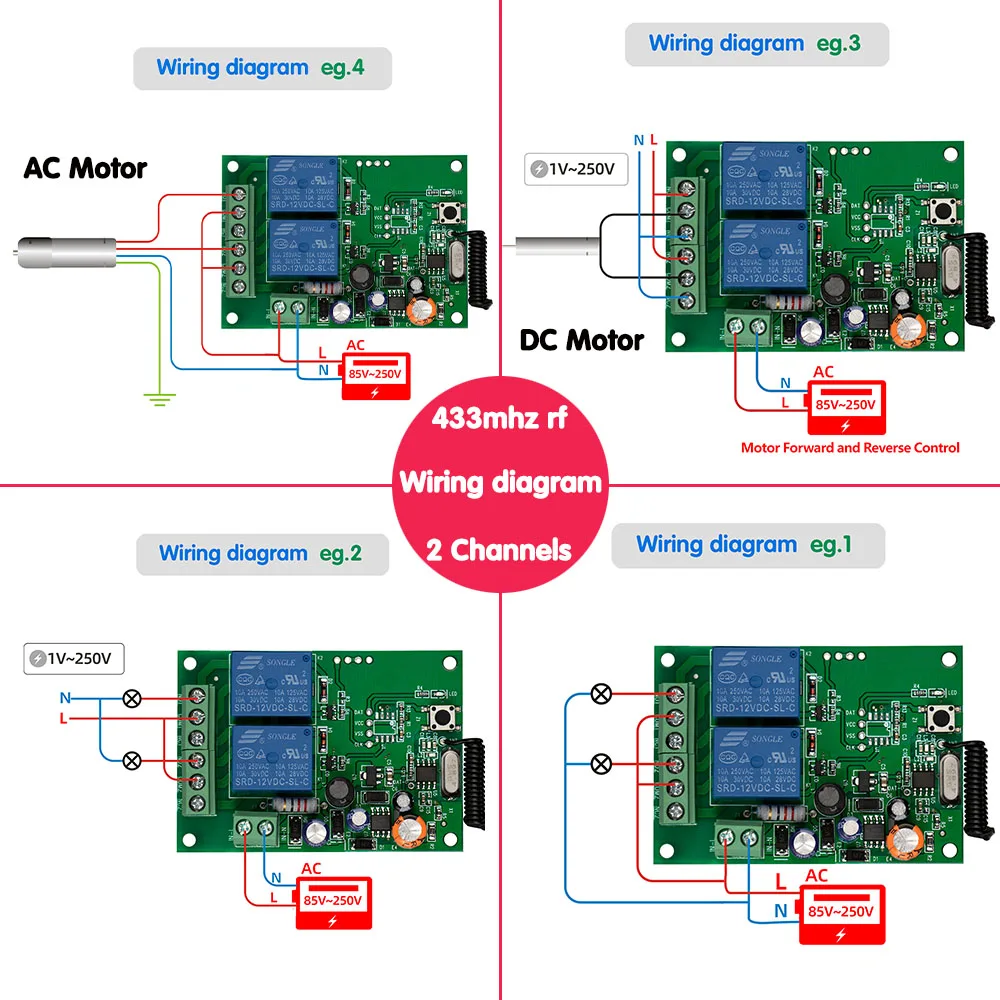

※Circuit Diagram

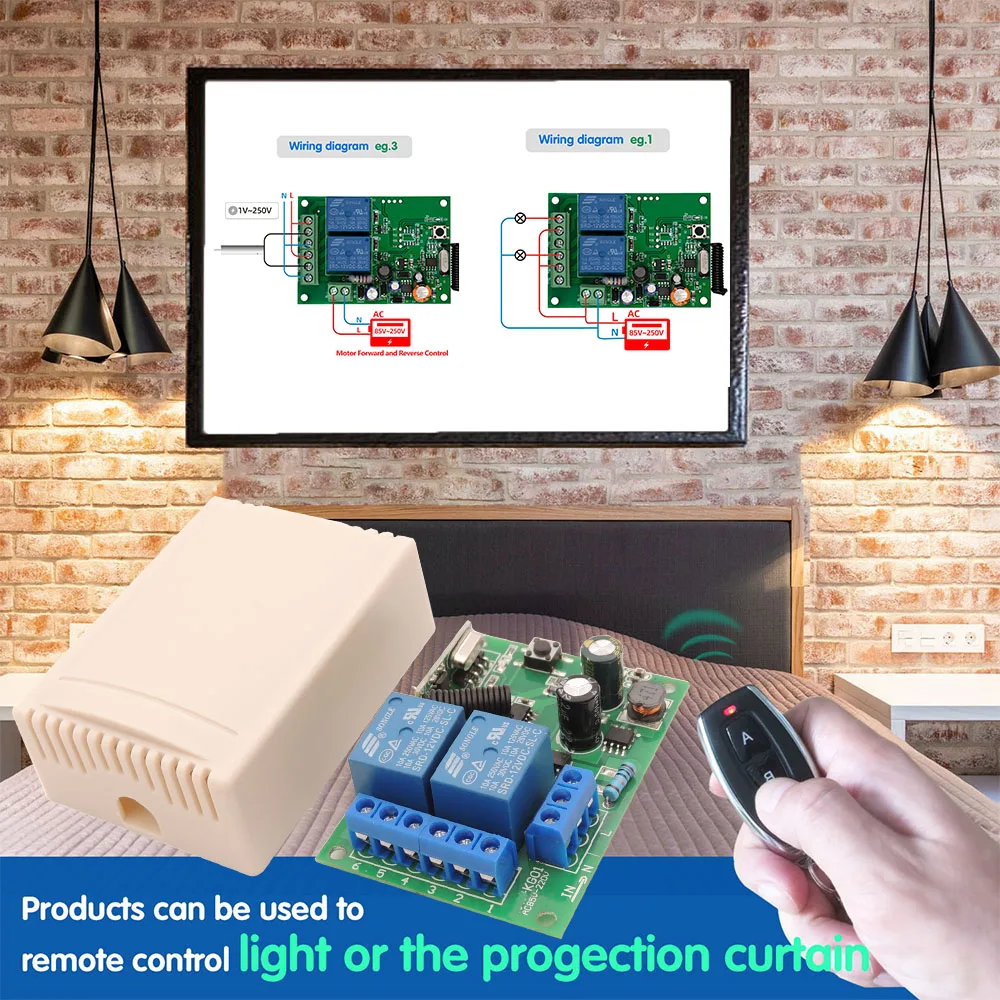

1.The product can be connected with light bulbs, fans and other products

※Package Include
1.AC receiver
2.remote control
(The specific product quantity depends on the option you choose)
