The main function
1.433mhz RF remote control switch set, You can remotely operate every machine connect with the relay receiver through the remote control.
2.The equipment is very small, only 40mm*36mm*25mm,
3.Strong signal can pass walls, floors, doors.It can be controlled within 50 meters distance with no obstacle.
4.Extremely easy to set up and reset. There are 4 operating mode(momentary/toggle/latched/delay mode) can be chose.
5. This receiver contain 1 7A relays, and there are 3 terminals(normally open, common, normally closed) for the relay.
6.This is a potential-free contacts relay. Passive output. Dry contacts.
7.The receiver is suitable for AC 100V~250V voltage, it is more flexible to use. fitable for 220V 230V 240V 110V.
8.Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on
9.such as  expansion door and Lamp, lighting, ventilation device, Signal transmission and so on.

Product display

Product details

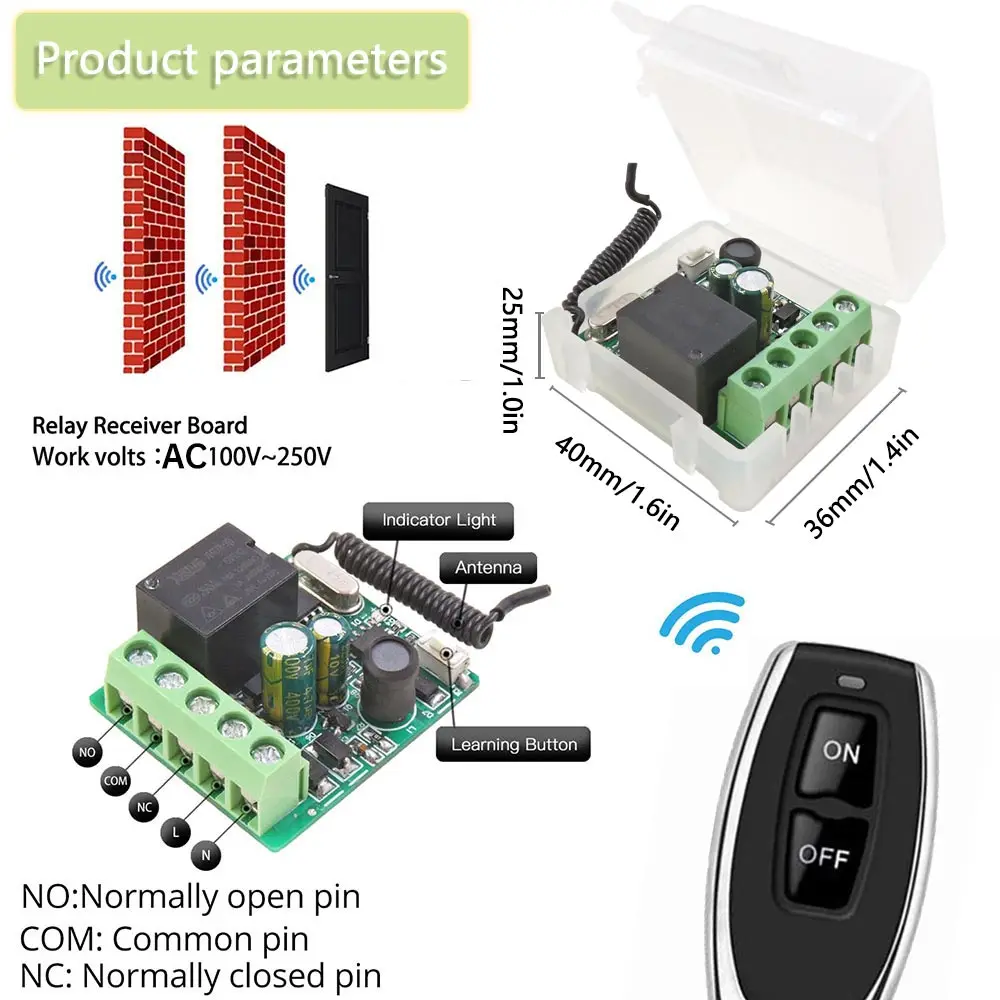

----NO : Normal open           COM  :  Common            NC : Normal closed
---Deal with every minute detail to ensure perfect quality

1.receiver
Working Voltage  :  AC100V-250V
Output vlotage  : 1~250V
Quiescent Current  : <5MA
Max current  :  7A
RF frequency  : 433MHz
Working temperature  : -30~+80
Receiving Sensitivity  : >97dbm
Amount of storage remote controls  : 25 pieces
Support encoding  : 1527 Leaning code/2262 fixed code
RF Operating mode  : ASK superheterodyne wireless reception
Receiving range  : Open space is more than 50 meters
Remote operating mode  : Momentary Mode /Toggle Mode/Lactch Mode/Dalay Mode

2.remote control
Working voltage: DC 3V
Battery: 2pcs CR2016(Include)
Size: 68*38 mm
Range: Up to 50m
Code: 1527 learning
Material: PVC
Button: 2
Modulation: ASK

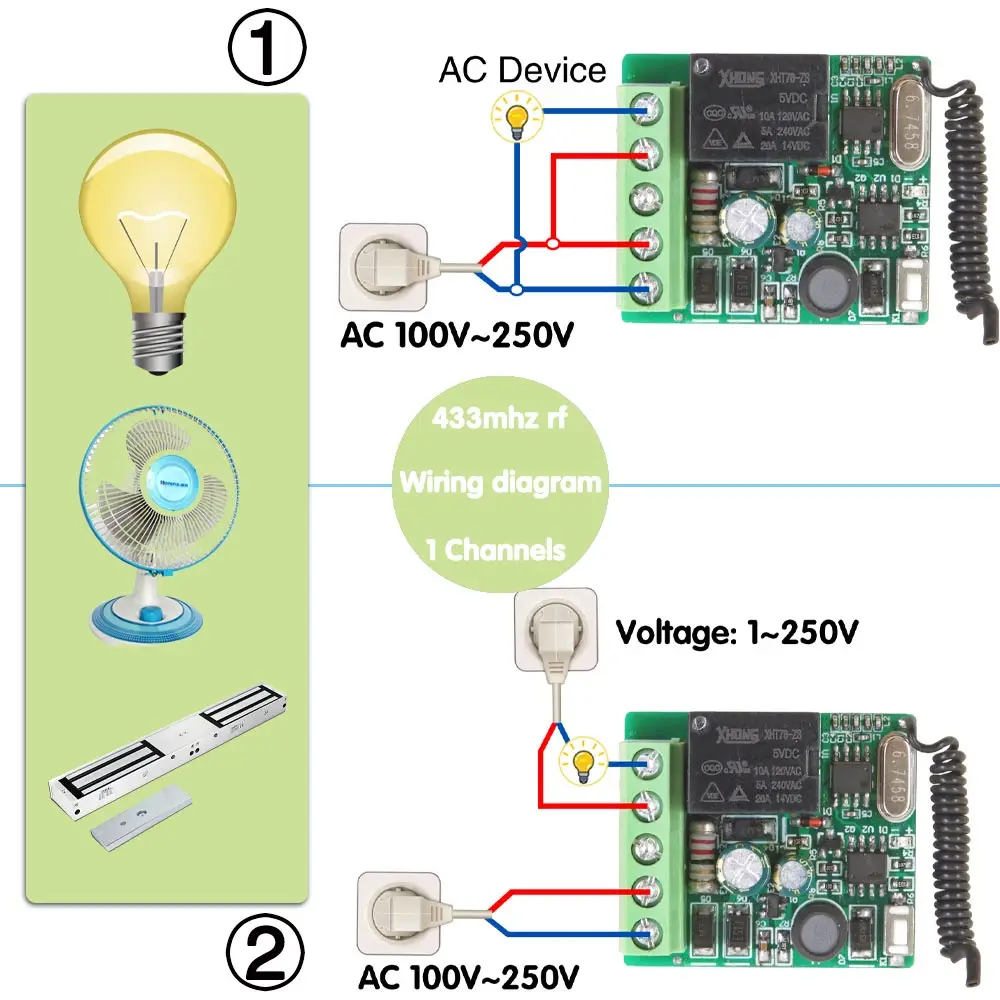

  Wiring Diagram
Note:If you do not understand anything about the circuit diagram, please feel free to contact our customer service staff

 Operating Mode

1.Momentary mode:
Press and hold A button,this relay will work;Release A button,this relay will stop.
2.Toggle mode:
Press A button,the relay will work;press A button again,this relay will stop.
3.Latch mode:
Press A button,the relay will work;press B button ,this relay will stop.
4.Dealy mode
Press A button,the relay will work;after 5/10/15/20 seconds,this relay will stop.

How to Set up
1.Momentary mode:
Press learning button once,press A button once,succeed.
2.Toggle mode:
Press learning button twice,press A button once,succeed.
3.Latch mode:
Press learning button 3 times,press A button once,and then press the B button once,succeed.
4.Delay mode:
Press learning button 4/5/6/7 times,press A button once,succeed.
5.Clean data:
Press learning button 8times,the data will be cleaned.All remotes cannot control this receiver.
If u want to change modes,u need to clean the data first.

Package include

1.New Receiver module ( include Shell )
2.Remote Control (include battery )
3.Product Manual

On this products details page, there is a demonstration video available.

*If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*
