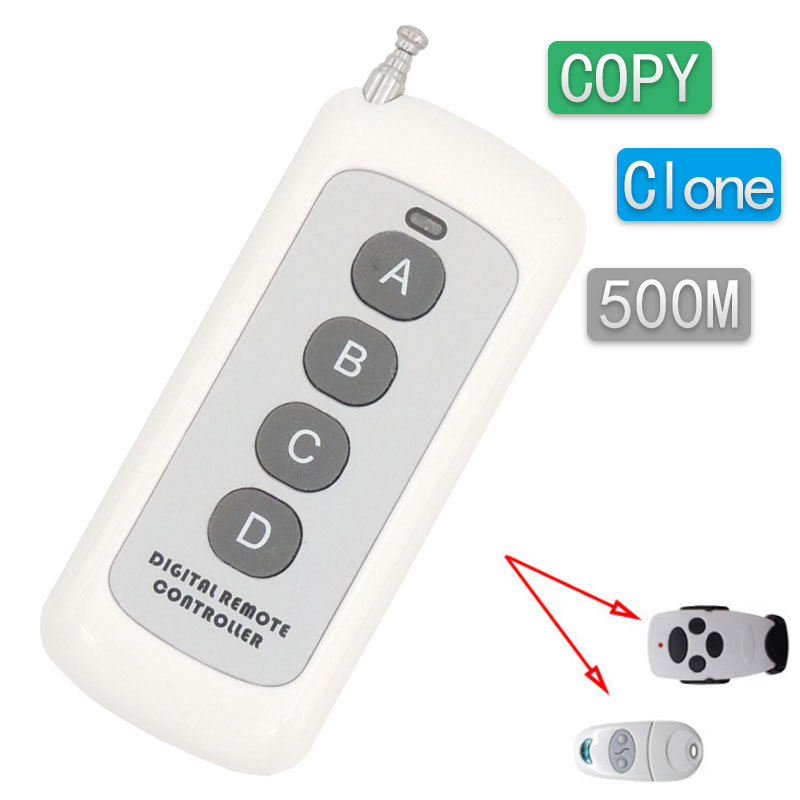

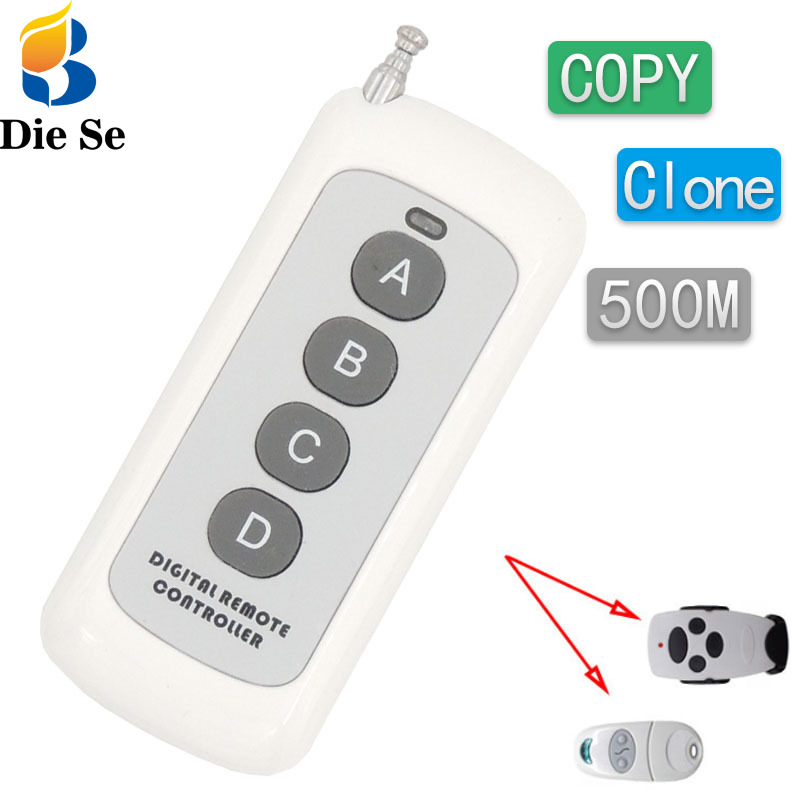

433Mhz Rf 복사 원격 제어 500m 4 버튼 송신기 복제 고정 학습 코드 가제트 게이트 차고 문 도어한 좋은 온
|
|||||||||||||||||
| 商品購入についてのご案内 | |||
|
|||
Transmitter Parameter
--RF frequency : 433.92MHz
--Operating voltage : DC12V
--Product Type: Copying/Duplicating Remote Control Transmitter Key Fob.
--Match Code Way: Copying while attached to another remote control (One to One Copying).
--Channel Supported: 4 Channel.
--Encoding Type: Learning Code (Example: 1527), Fixed Code (Example: 2262).
--Modulation System: ASK.
--Operating Current:<25mA.
--Transmission Power: +13dbm.
--Support encoding : A lot of code
--Transmitting range : Open space is more than 500 meters
--Battery : 23A 12V battery ( include 1 battery)
--Main Item Size:90mm*40mm
1.This is an ultra-long-distance copy remote control, up to 500m (in the open area)
2.Many types of remote controls can be copied, such as CAMETOP432EE, CAMETOP432EV, DOORHANTRANSMITTER-2/4, etc. Please see the picture below for details.
3.Easy to copy and easy to use
1:The original remote control is good.
2:The frequency: 433.92Mhz
3:The chip Code(Encoder Chip) as listed below
2260(all manufactures ,such as PT2260,SC2260,HS2260, LX2260, HX2260 ,etc),
2262(all manufacturers,such as PT2262,SC2262,HS2262, LX2262, HX2262 , etc),
1527(EV1527, HS1527, HX1527,SC1527,GP1527,CP1527,AD1527,SCL1527,TL1527,ZX1527)
PT2264,PT2240(LX2240,LX2241,SCL2240),CS5211,SMC918,AX5026,SMC926,AX5326-3,AX5326-4,FP527,HT600,HT680,HT6207,HT6010,HT6012,HT6013,HT6014,HT12D,HT46F49E,PIC16F630,ULN2003
Ohter chips compatible with the chip can also be copied.Although different chip manufacture has different chip model prefix, it will be OK, as long as the chip model numbers are same.
How to determine your remote control model
Programming
1-Reset
Press and Hold "A" and "B" buttons together---Led will flash 3 times.
2-clone your original remote
1. Put both remotes into "back to back" position. Make sure they have direct contact. Or the two remote controls should be placed as closely as possible( put the two remote controls on the desktop side by side with zero distance)
2. Press and hold one button on your original remote , and then press and hold one button on your clone remote. Keep holding until LED will make 2 blinks( Note: LED 2 blinks not to release button) Then 3 blinks then into steady and you have successfully cloned. ( each buttons follow the same above operation)
Note
If for some reason the clone does not go further then 2 blinks, it means the signal does not go through, please shift the remote slowly up and down until you get the point where it will go through.
For the presence of noise, it should avoid interference to operate, if the copy is not successful, it should recopy after clearing code.
Product Application Area
Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on.
Remote control garage door Electric door house door shutter door expansion door gate door road gate
Remote control Electric curtain Water pump Fan Lamp LED light bulb ventilation device Signal transmission
Remote control motor positive and negative rotation motor switch DIY
It is a ultra-strong Duplicating & Cloning transmitter. It can copy your original remotes(transmitter).
If you have any questions, please feel free to contact us.
If you also purchased this base, you can also place the remote on the wall
Package include
500m Remote Control Transmitter (with battery)
Product Manual
