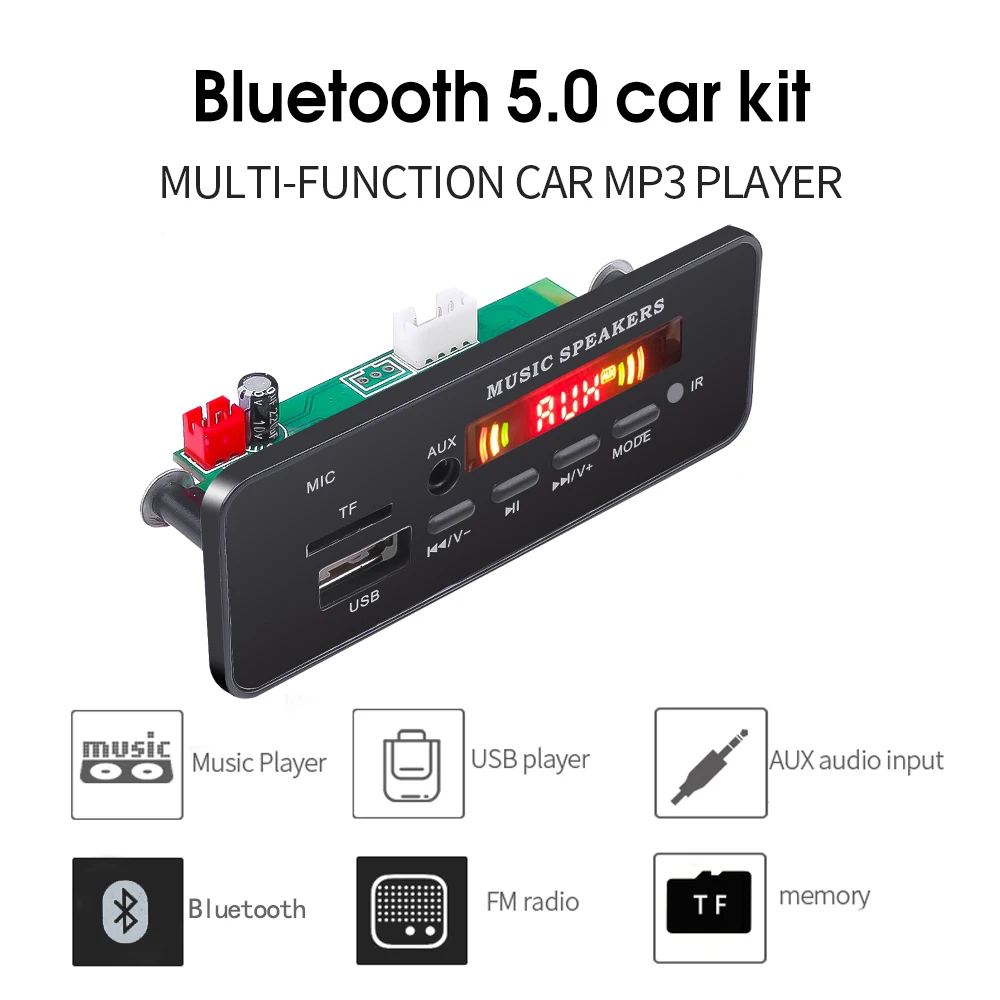

kebidu Recording Car USB Bluetooth V5.0 Hands-free MP3 Player Integrated 5-12V MP3 Decoder Board Module Remote Control USB FM Aux Radio

Description:

With bluetooth audio receiver module, when cell phone and bluetooth module matching contion, the MP3 or nondestructive APE files via bluetooth sent to the product of the bluetooth receiver module to play, which has greatly helped the function of the product and entertainment. This product also be like ordinary MP3 decoder board,play U disk or TF card MP3 files, as well as the radio broadcast.

Feature:

USB: Connect to U disk (maximum support 32GB,not included)

LED Color Screen: Digital Screen Display, Red Screen Display

Infrared receiving module

TF: Connect to TF memory card (maximum support 32GB,not included)

AUX: Audio Input Interface

VOL-: Short press is the last song; Long press is to reduce the volume

PLAY/PAUSE: Short press is the switch between pause and playback; Long press is the radio FM automatic station.

VOL+: Short press is to choose the next song; Long press is to increase the volume.

MODE: Switchover of USB/TF/FM/LINE IN/BLUETOOTH Voice

Master IC: AC6926

Bluetooth IC: AC6926 Bluetooth 5.0

Music format: MP3/WMA/WAV/FLAC/APE

Power: 2*3W, connected to two 3W speakers

Radio FM Frequency: 87.5-107.5 MHZ

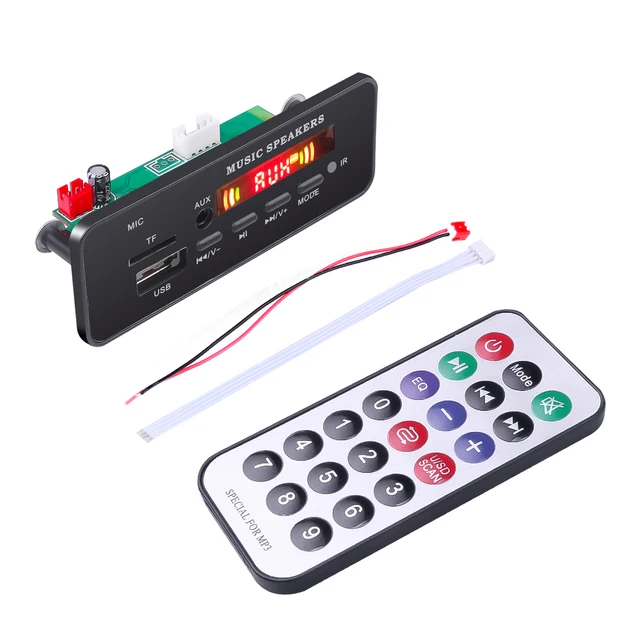

Introduction of Support Functions: Support MP3/USB/TF/LINE IN/FM/BLUETOOTH/Remote Control/DC 12V

About structure: panel size: 107 * 25 MM, panel corner and screw hole position, then cover surface, the depth of the board is 32 MM

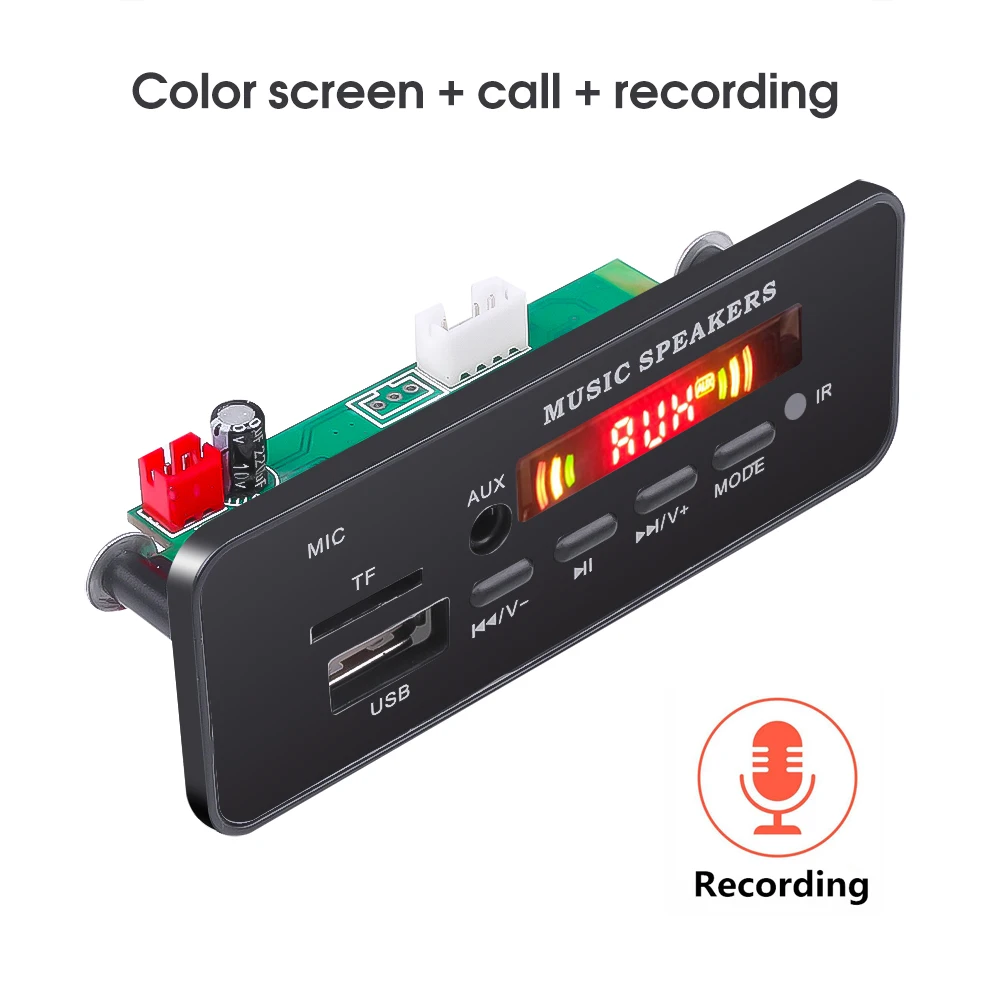

Description of recording function

1. Press the MODE button for a long time to start recording, and then press the MODE button for a long time to cancel recording function.

2. Press the PLAY/PAUSE key to play the recording file.

3. When recording, it is more necessary to connect a storage device, such as a U disk or a TF card.
