TFT 디스플레이 0.96 1.3 1.77 1.8 인치 IPS 7P SPI HD 65K 풀 컬러 LCD 모듈 ST7735 ST7789 드라이브 IC
|
|||||||||||||||||
| 商品購入についてのご案内 | |||
|
|||

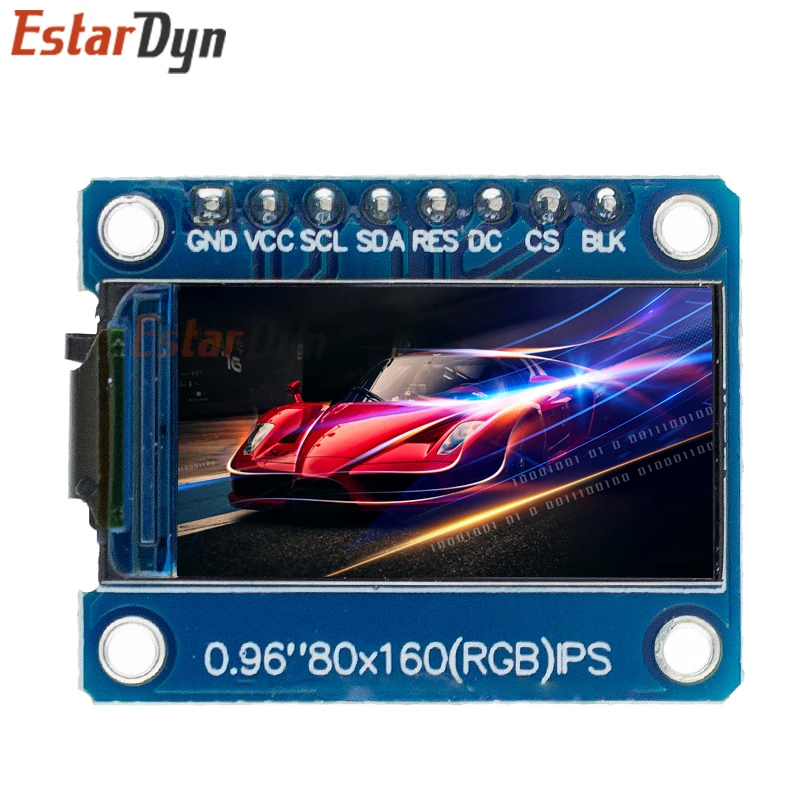

0.96 TFT Display

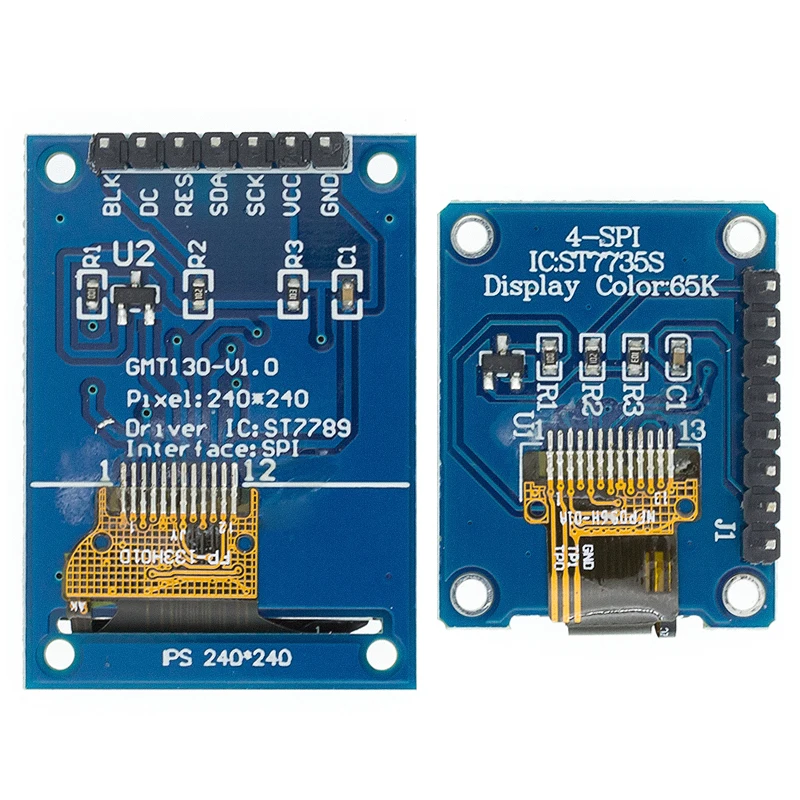

1.3 TFT Display

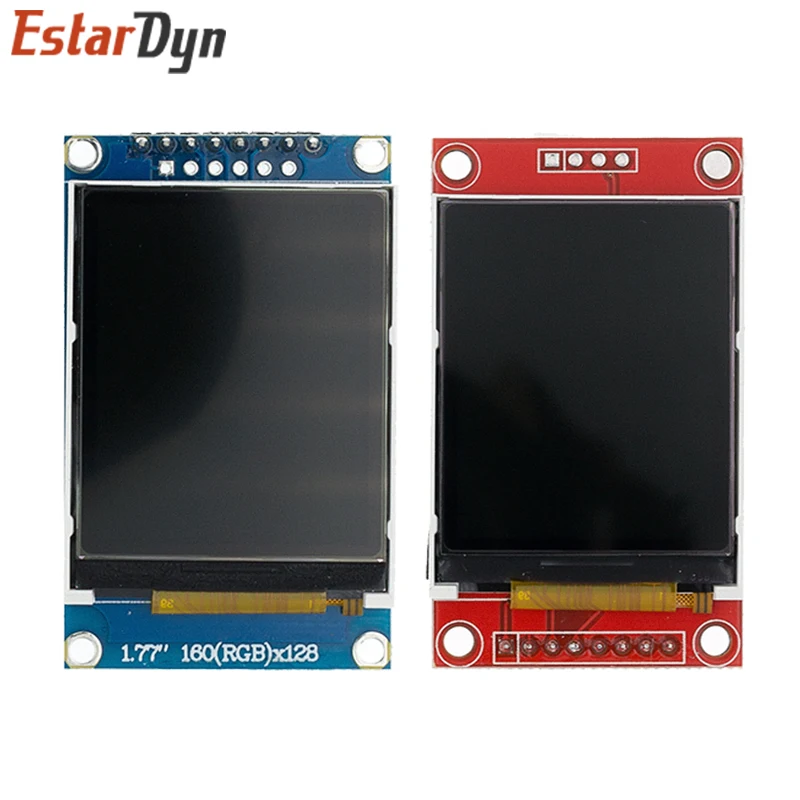

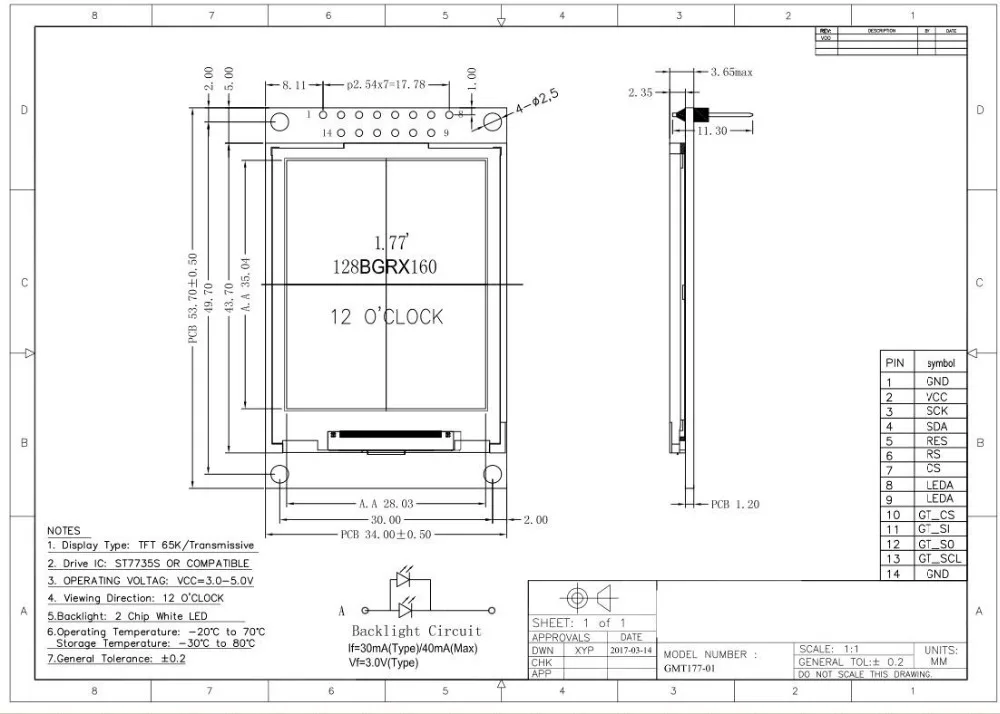

1.77 TFT Display
1.8 TFT Display
1.Features
SIZE:0.96inch
Display ModeNormally black IPS
Display FormatGraphic 80RGB*160 Dot-matrix
Input DataSPI interface
Drive ICST7735S
Dimensional outline24(W)*30 (H)*2.8+/-0.1(T)mm
Resolution80RGB*160 Dots
LCD Active area10.8 (W)*21.7 (H)
Dot pitch0.135(H) x 0.1356(V) mm
Viewing DirectionAll View
Operating Temperature-20～70°C
2.Pin Descriptions:
PIN NoSymbolDescription
1GNDGround
2VCCPower 3.3V
3SCLSerial clock pin.
4SDASerial data input
5RESLCM Reset pin
This pin is reset signal input. When the pin is low, initialization of the chip is
executed. Keep this pin pull high during normal operation.
6DCData/Command Control
7CSChip Select
8BLKBacklight control pin

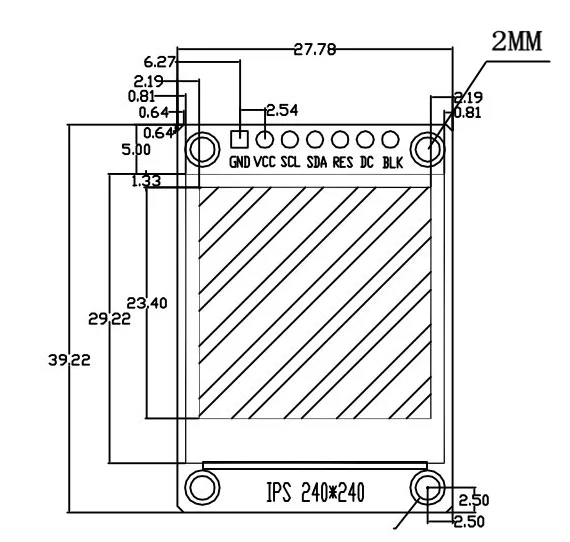

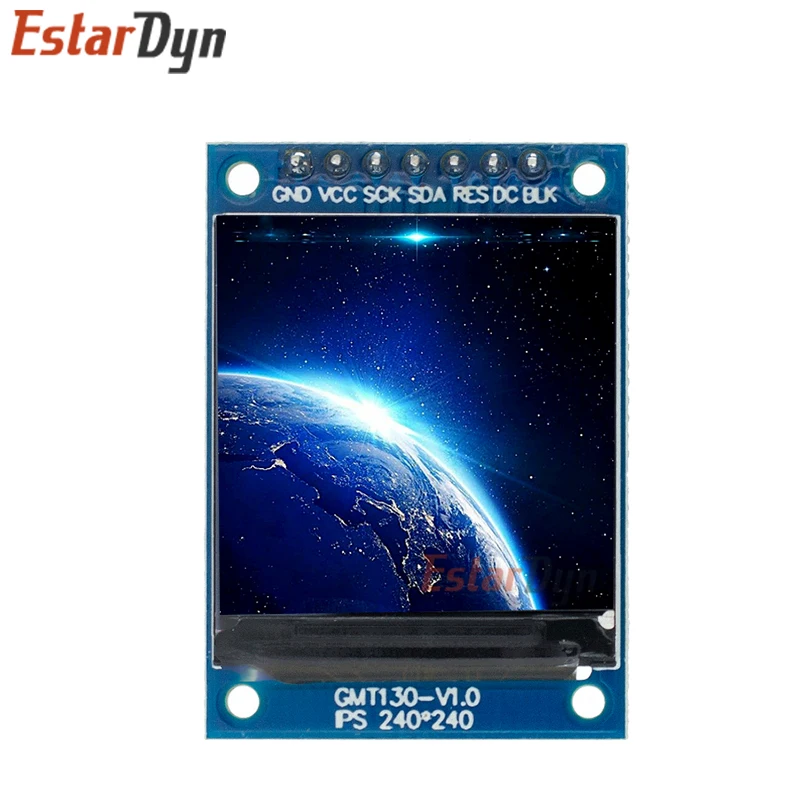

1.3 inch
1.Features
SIZE:1.3inch
Display ModeNormally black IPS
Display FormatGraphic 240RGB*240 Dot-matrix
Input DataSPI interface
Drive ICST7789VW
Dimensional outline27.78(W)*39.22 (H)*3.0+/-0.1(T)mm
Resolution240RGB*240 Dots
LCD Active area23.4 (W)*23.4 (H)
Dot pitch0.0975(H) x 0.0975(V) mm
Viewing DirectionAll View
Operating Temperature-20～70°C
2.Pin Descriptions:
PIN NoSymbolDescription
1GNDGround
2VCCPower 3.3V
3SCLSerial clock pin.
4SDASerial data input
5RESLCM Reset pin
This pin is reset signal input. When the pin is low, initialization of the chip is
executed. Keep this pin pull high during normal operation.
6DCData/Command Control
7BLKBacklight control pin

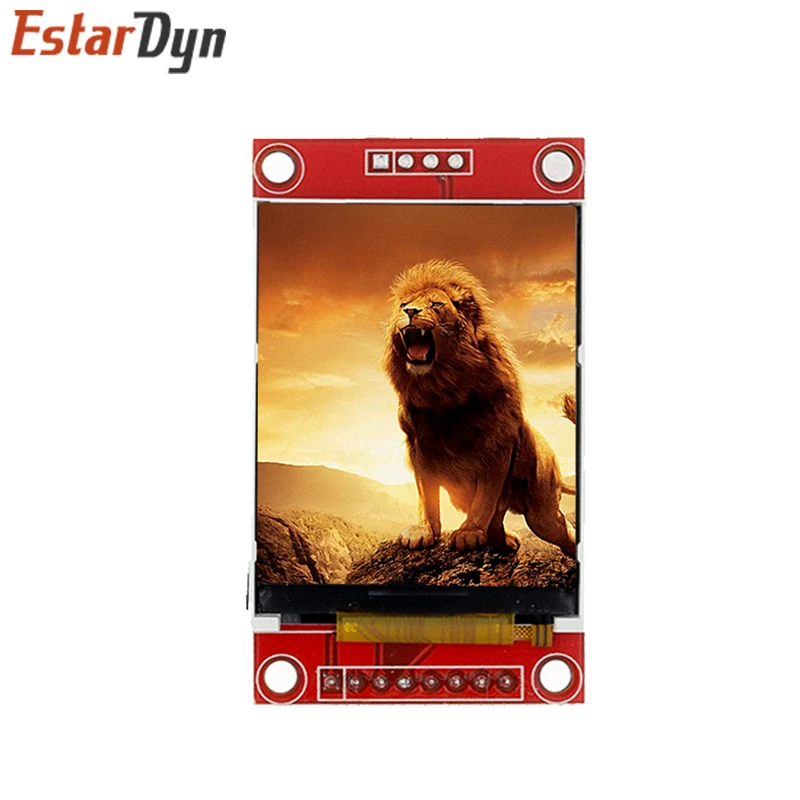

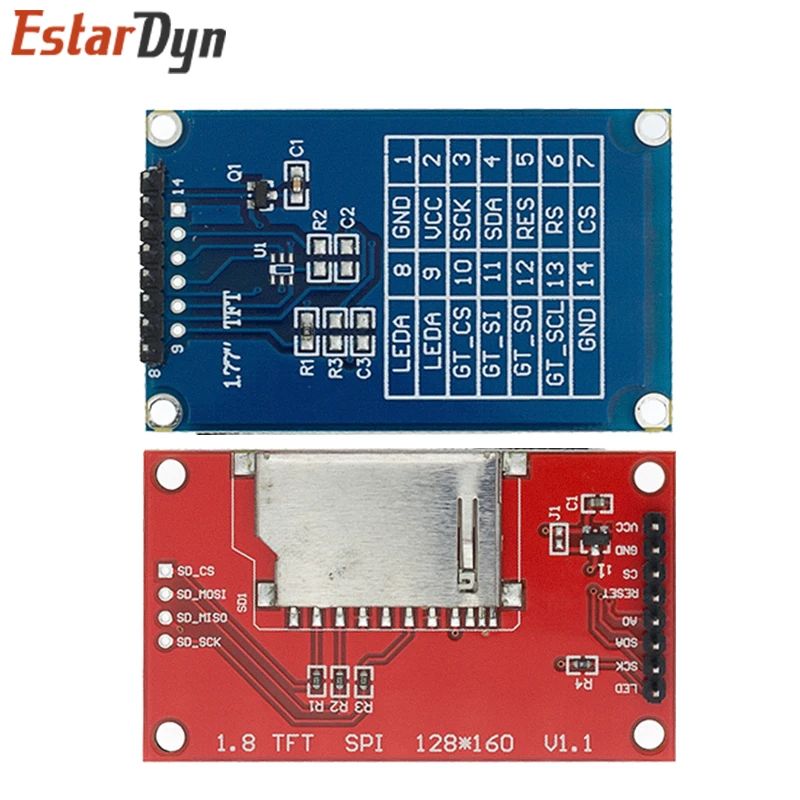

1.8 inch
SPI serial, less I/O port need
Controller: ST7735S
pcb adapter for lcd
one sd card socket
can be driverd by 8051 / AVR / PIC /ARM/STM32 ....
Resolution: QVGA 128*160 Dots
