ESP32 Development Board Microcontroller 2.8inch LCD TFT Touch Screen Development Module Dual Core MCU RGB Smart Display Screen
Feature:

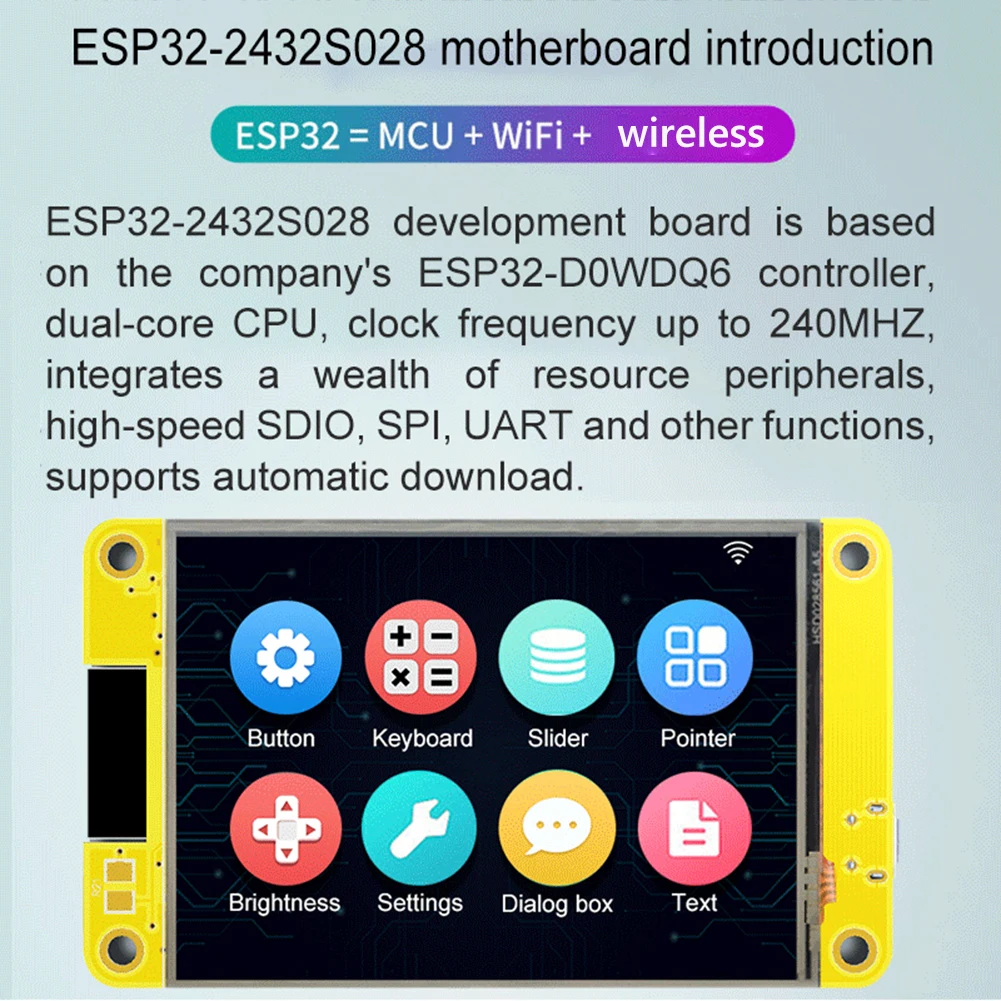

1. Dual-Core MCU: Equipped with an ESP32-WROOM-32 module as the main controller, this development board boasts a dual-core MCU capable of reaching up to 240MHz. It also integrated Wi-Fi and Bluetooth functions, with 520KB SRAM, 448KB ROM, and 4MB flash memory.

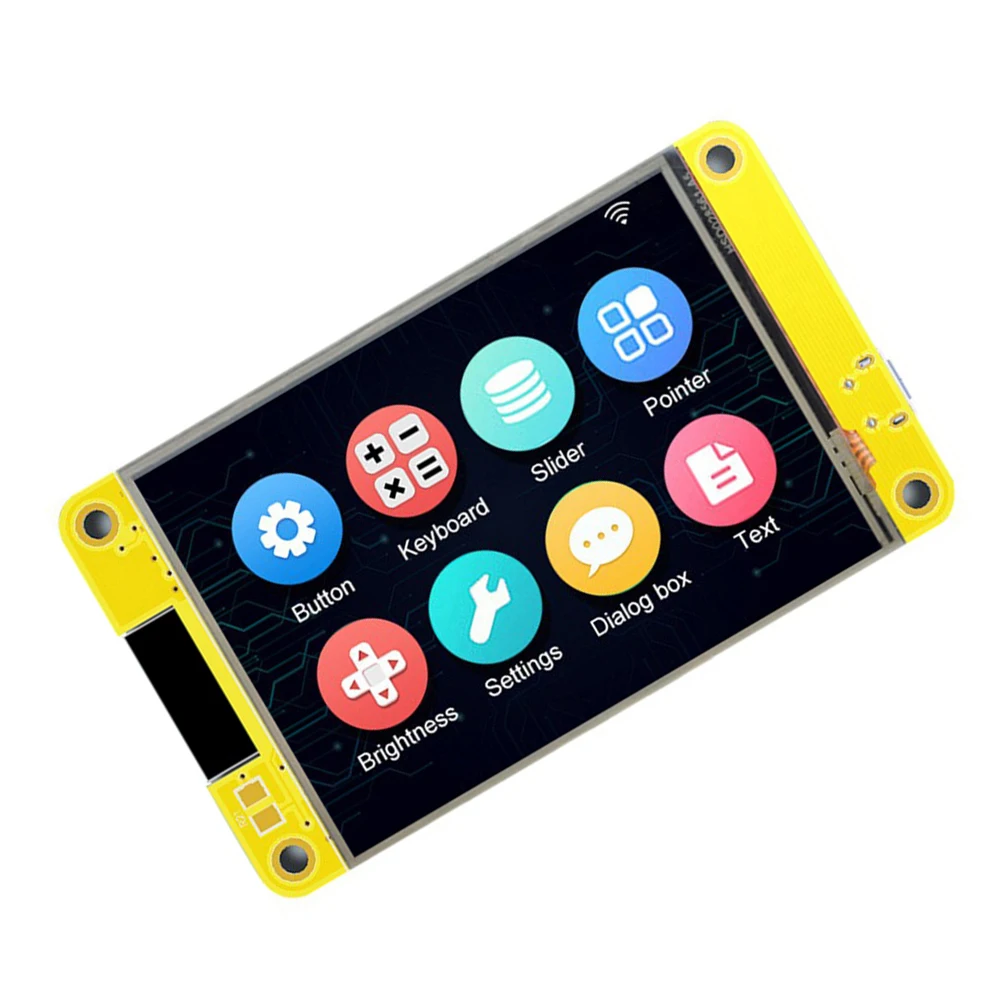

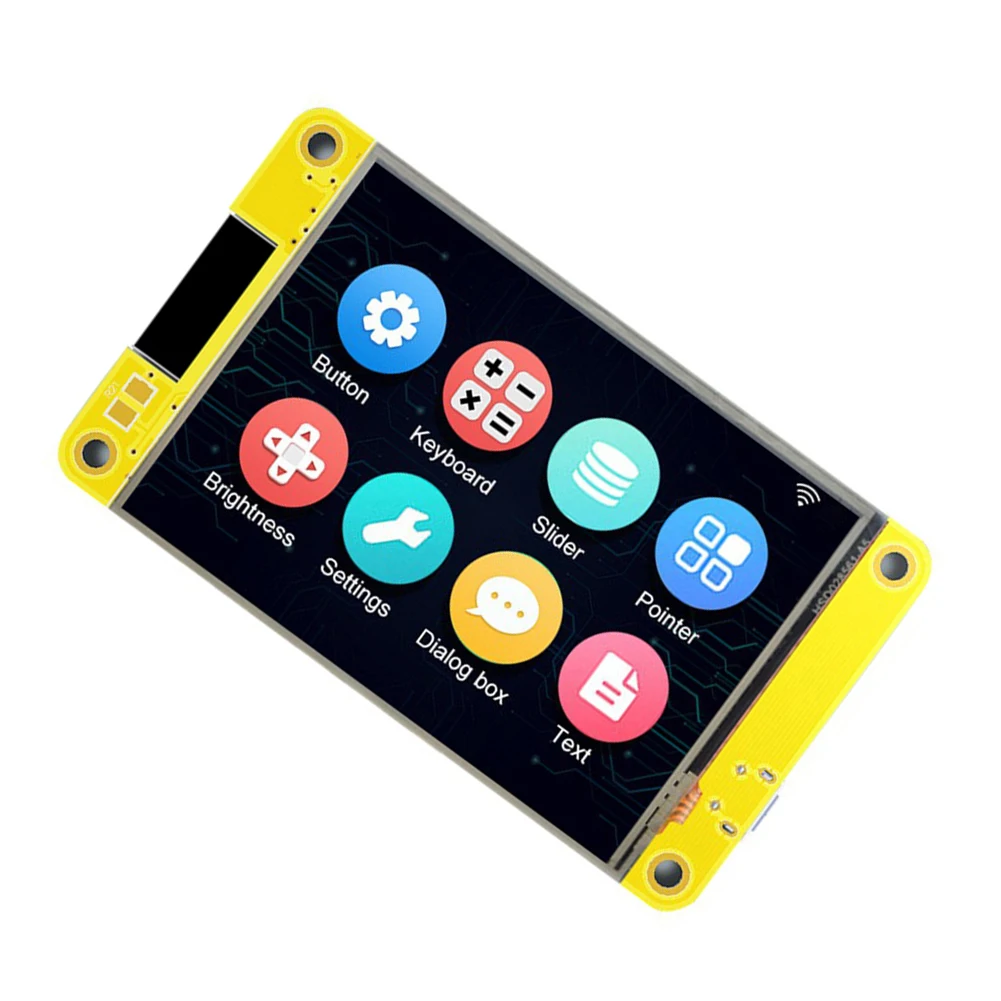

2. High-Quality Display: With a 2.8-inch color screen and 240x320 resolution, this development board can display rich colors and detailed graphics. The resistive touch screen adds an extra layer of functionality.
3. Ready-to-Use Sample Programs: Out of the box, this development board comes with pre-loaded sample programs that make it easy to start using right away. Simply plug it in and get started.

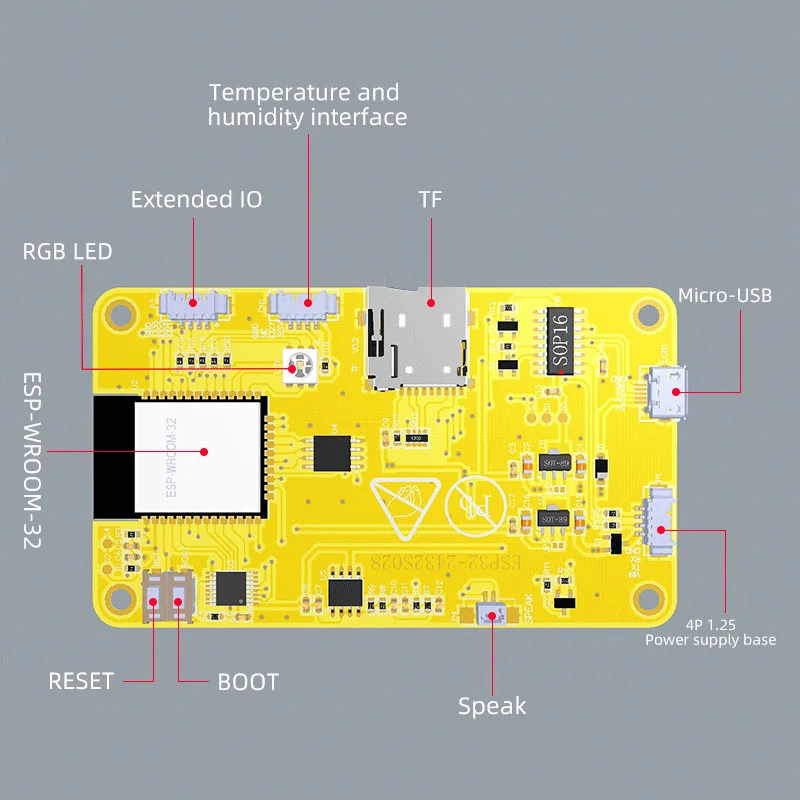

4. Expandable Storage: The onboard TF card slot, this development board allows for easy expansion of storage capacity.

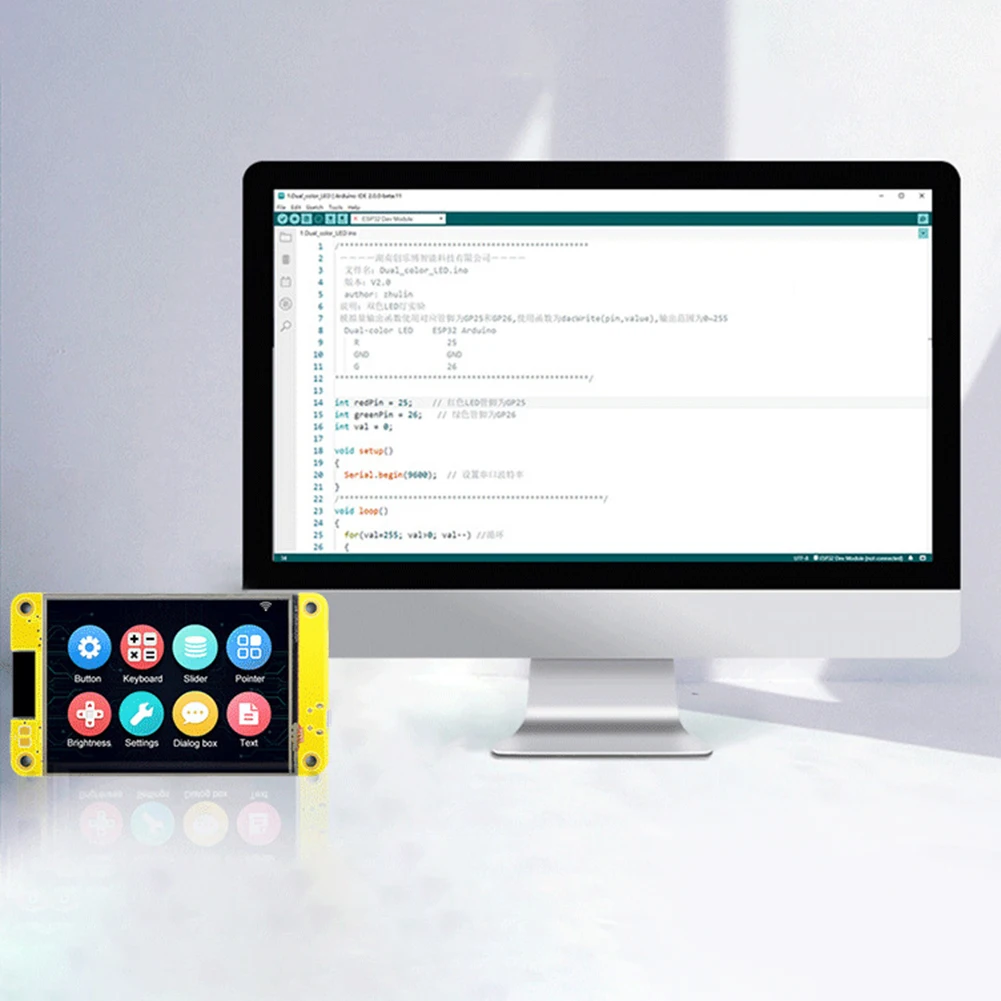

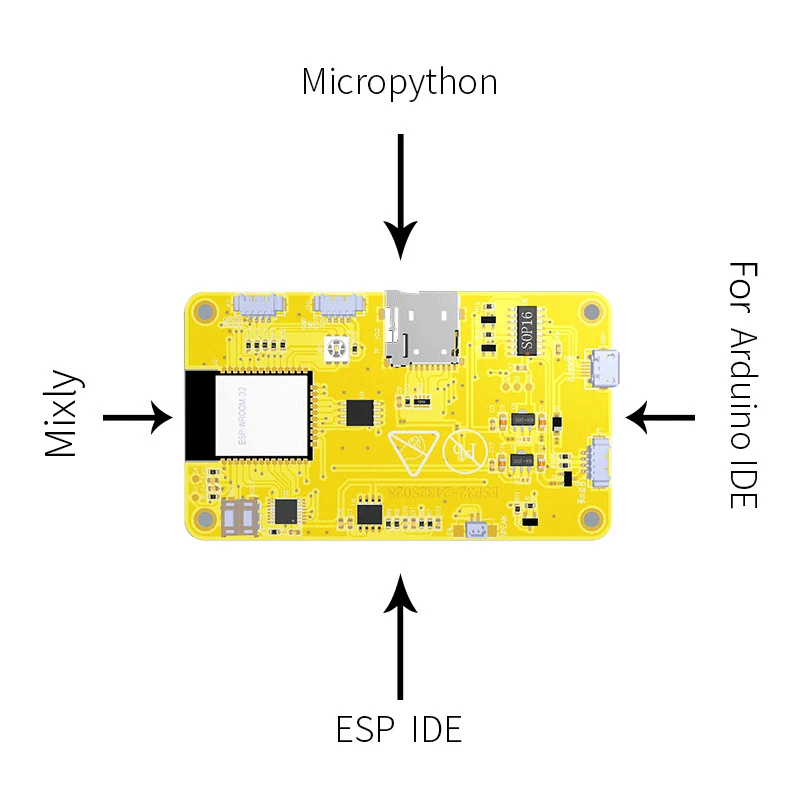

5. Easy to Develop: Whether you"re using for Arduino IDE, for ESP IDE, for Micropython, or for Mixly, this development board is designed to support rapid, easy development. It comes for arduino library functions and example programs, as well as one-click program downloads.

Specification:
Origin: Mainland China
Screen size: 2.8inch
Type: TFT
Display color: RGB 65K
Resistance touch: ESP32-2432S028R
Driver chip: IL19341
Resolution: 320 * 240 (pixels)
Effective display area: 43.2 * 57.6 (mm)
Perspective: >60 °
Working temperature: -20 "C~70C
Storage temperature: -30 "C~80C
Working voltage: 5V
Power consumption: About 115mA
Size: About 50x86mm/1.96x3.38inch
Weight: About 50g

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
