BMS 7S 24S 15A/20A/25A Lithium Battery Protection Board With Balance And Temperature Protection 7S BMS

Product Features:

Exquisite craftsmanship Stable heat dissipation

Overvoltage protection Over-discharge protection

Charging protection Short circuit protection

Over-current protection Over-temperature protection

Charge equalization Disconnection protection

Product parameters:

Type: ternary/7S/24V

Wiring method: same port

Single cell overdischarge voltage: 2.7V±0.08V

Continuous operating current: 25/20/15A (optional)

Instantaneous protection current: 60A

Overcurrent recovery condition: Charge recovery or disconnect the load

Short-circuit recovery condition: Charge to restore or disconnect the load

Single battery overcharge voltage: 4.25V±0.025V

Continuous charging current: 20/15/10A (optional)

Charge equalization voltage: 4.15V±0.025V

Charge equalization current: 40mA

Charger voltage: 30V (recommended)

Charging overtemperature: 50°C

Discharge overtemperature: 70°C

Operating power consumption: 30μA

Main circuit conduction internal resistance: 20mΩ

Temperature range: -40 to +80°C

Disconnection protection: Yes

CABLE SIZE: 2.0MM PITCH/40CM LENGTH

Package List:

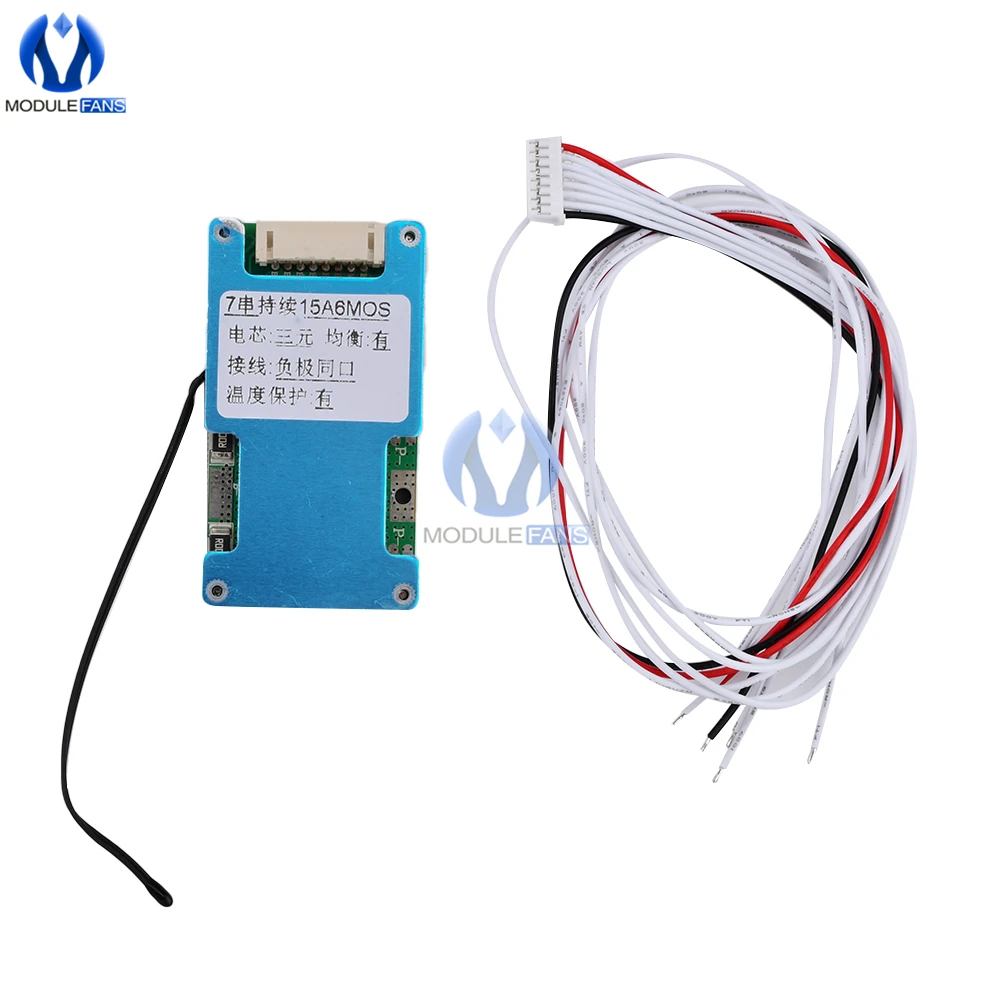

Lithium battery protection board X1

Cable X1

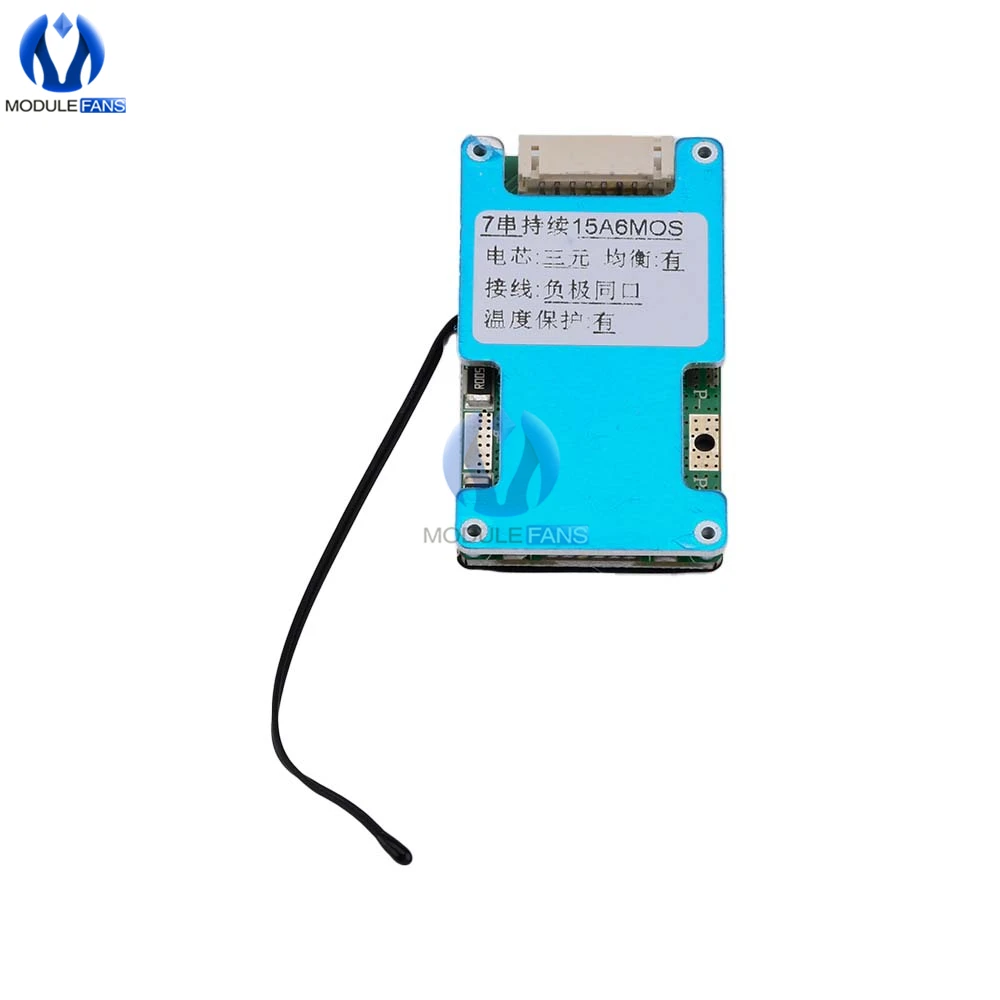

7S 24V 15A

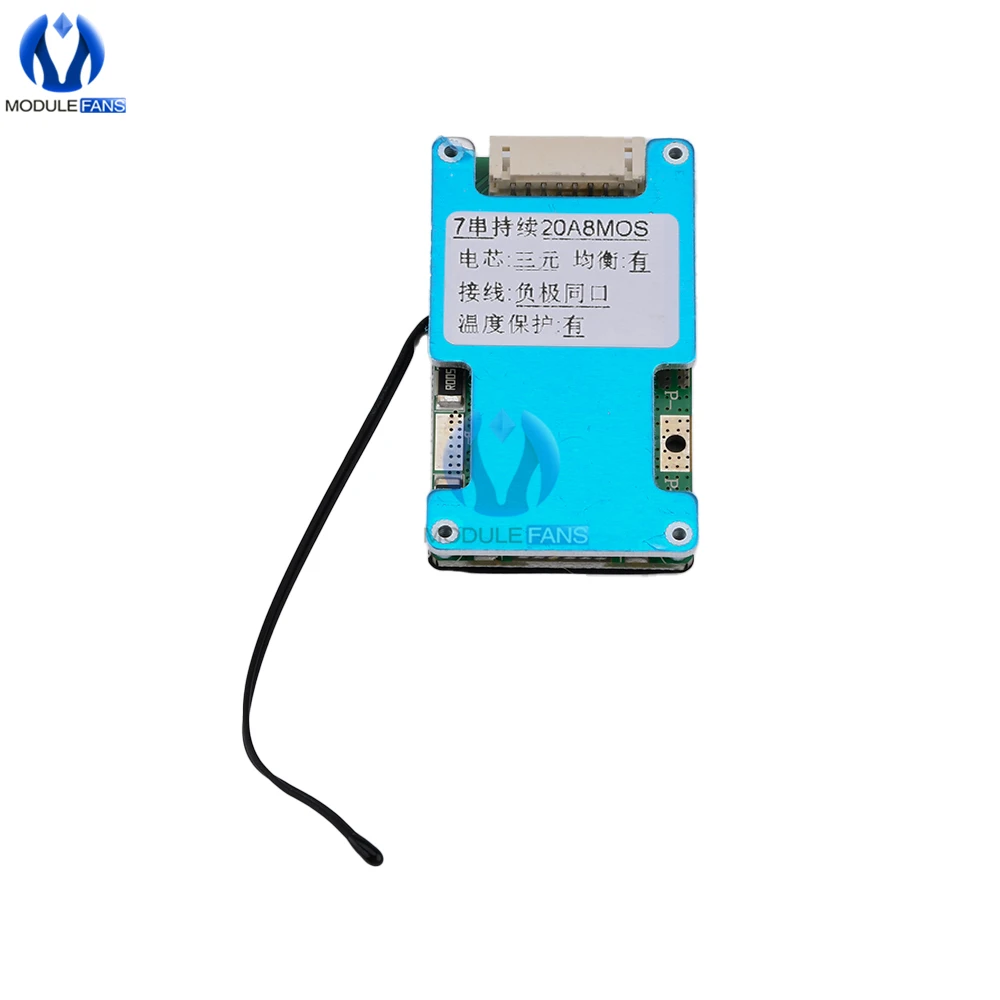

7S 24V 20A

7S 24V 25A
