Wisecoco 12.3 Inch 1920x720 Sunlight Readable TFT LCD Display Ultra wide Capacitive Touch Screen HSD123KPW1 Control Board

Industrial grade Panel New

Main Specifications:

12.3" 1920X720 LCD Screen:

Display Mode: IPS Pro, Normally Black, Transmissive

Resolution :1920RGB)×720

Outline Size: 308.1 × 130×15.6 (H×V×D)

Display Area: 292.032 × 109.512 (H×V)

Brightness :850~1000 cd/M² (Typ.)

Contrast Ratio: 1000:1 (Typ.) (TM)

Viewing Angle : 85/85/85/85 (Typ.)(CR≥10)

Signal Interface : LVDS (2 ch, 8bit) , Connector , 50 pins

Backlight : WLED

Input Voltage : 12V -2A DC Power

Storage Temp.: -30 ~ 85 °C
Operating Temp.: -30 ~ 85 °C ;
Vibration Level: 2.9G (28.4 MECHATRONICSs⊃2;)

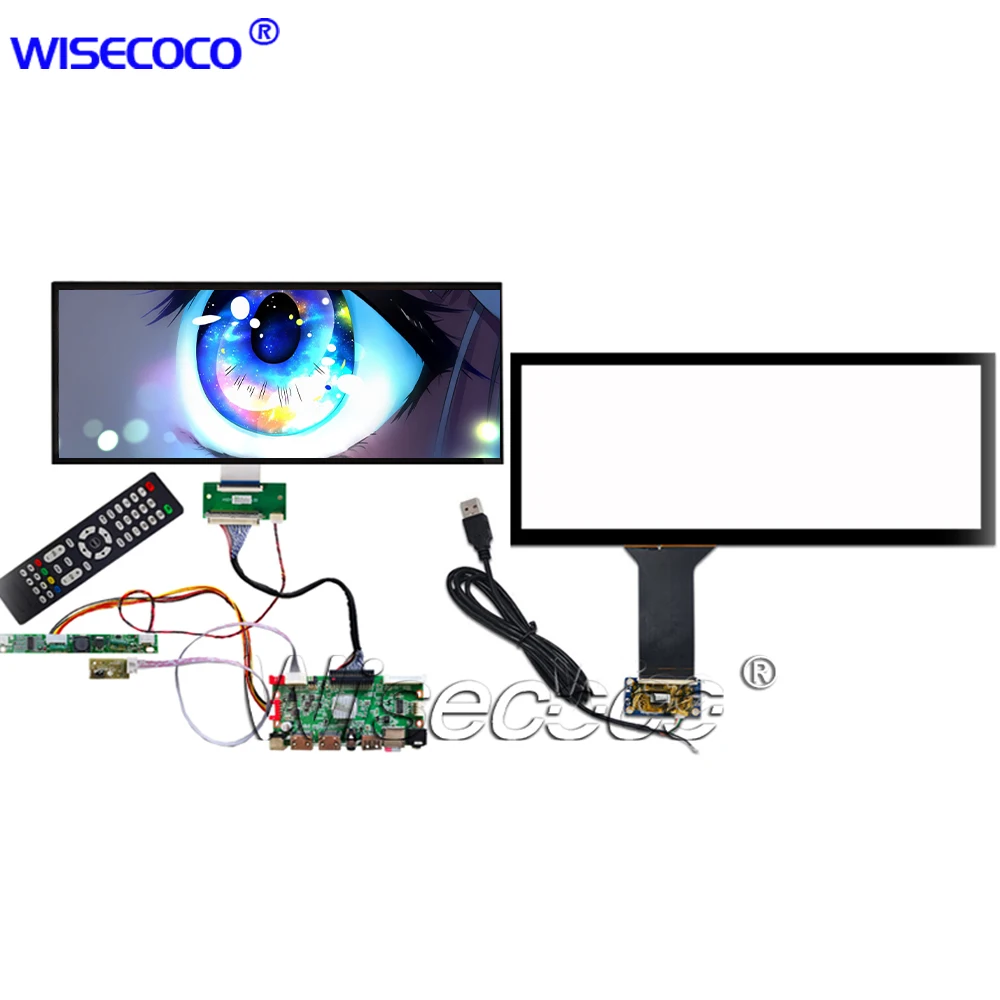

With Touch kit：capacitive touch + LCD screen + driver board + cables

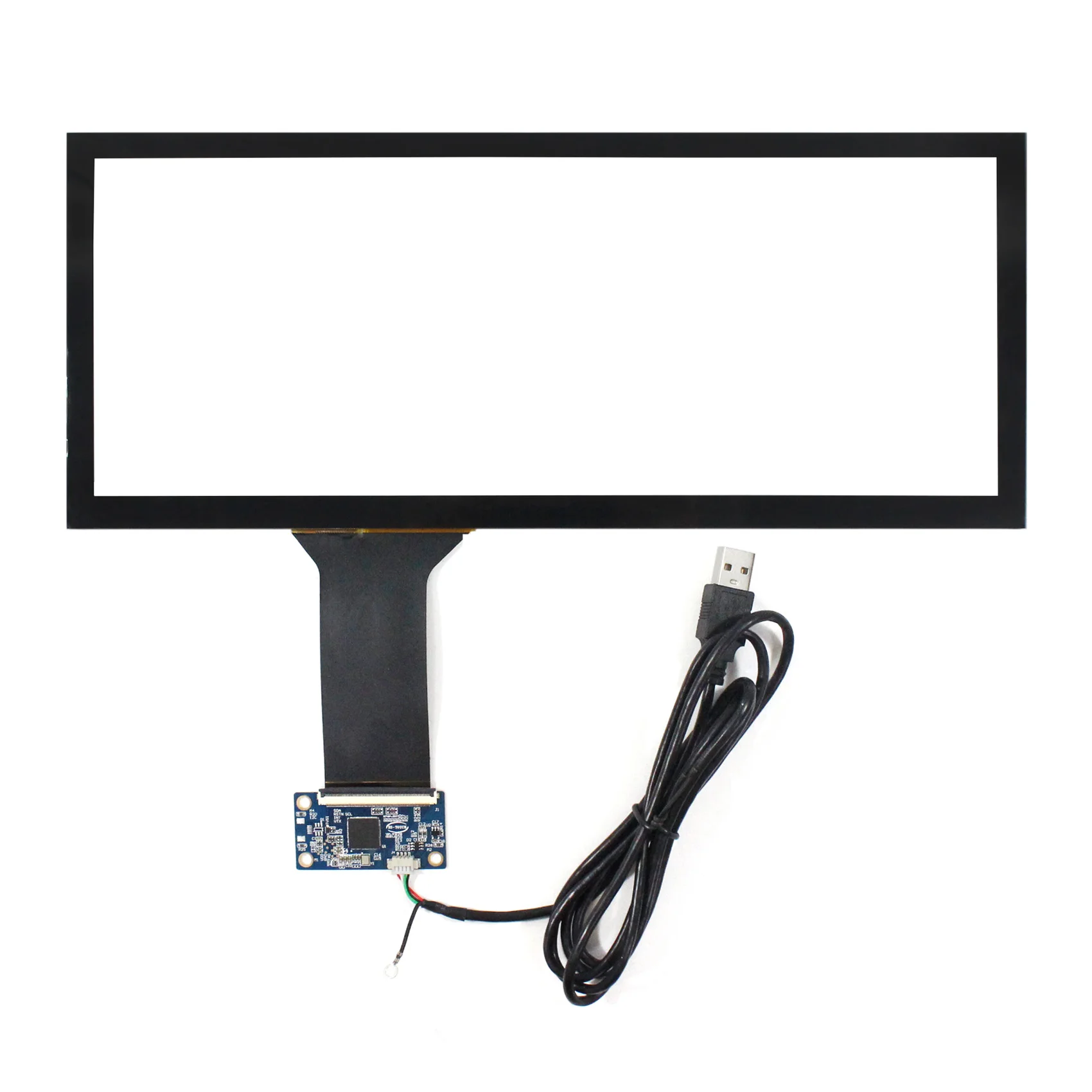

12.3 inch capacitive touch with 10 points touch

USB interface，plug and play.

support raspberry pi & Windows & Linux & Android systems.

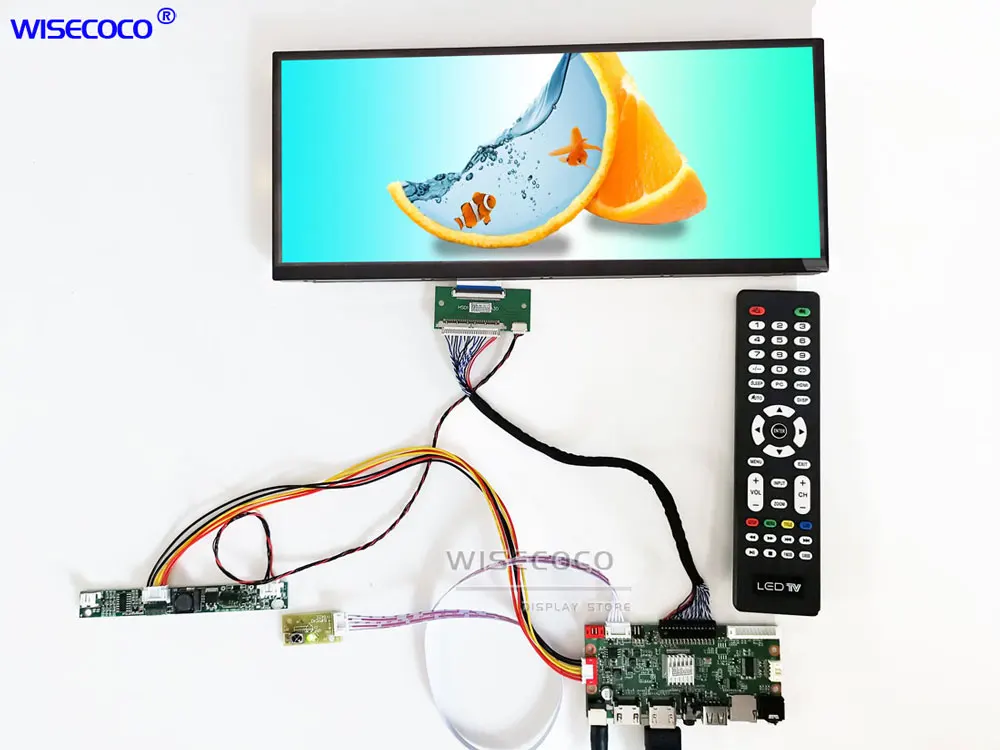

No Touch Kit :  LCD screen + driver board + cables:

Driver Board Information :

It support:HDMIcompatible / USB/ SD /AV For signal input

Input Power Adapter: 12Vdc 2A

Come In Standby Model When Not Input Signal

Standby Model <0.3W

Multimedia supports : MP4

OSD: Support Menu Contrast Brightness....

Audio Input: HDMIcompatible, USB SD AV

Audio Output: Speaker Earphone

Key Board: Power /Menu/ Up /Down/ Exit

Language: English by default, but you can also change to another language

Board Size: 107mm X 50mm X 15mm

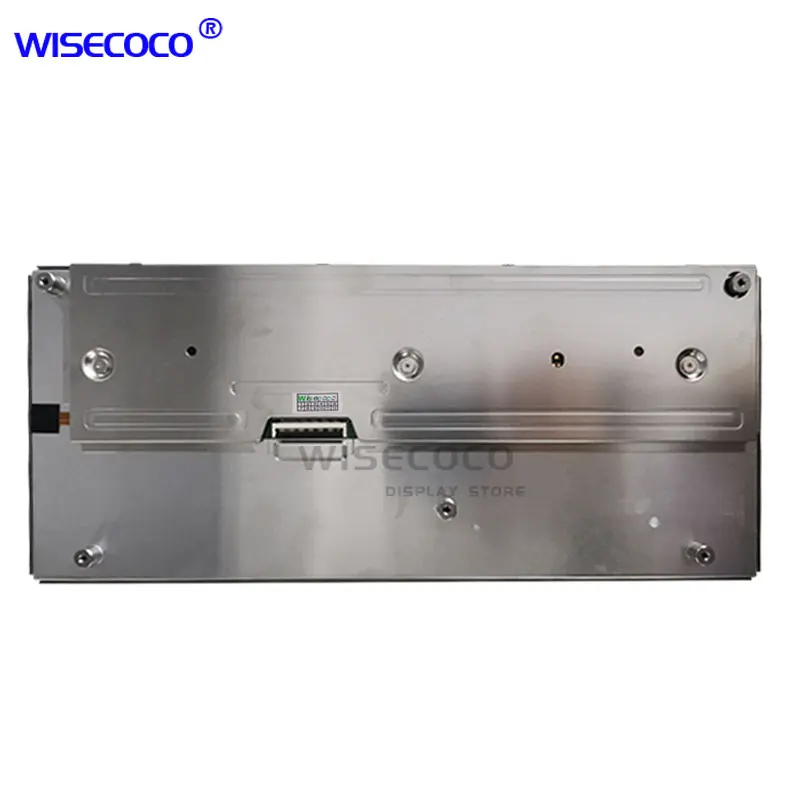

Screen SIZE: Front view and backview,

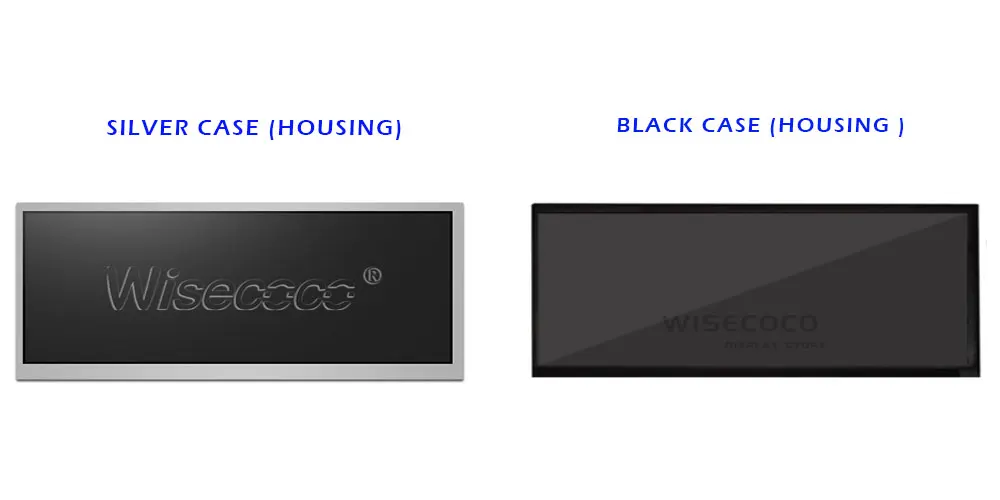

*Due to the production batch, the black frame and white frame will be shipped randomly.
