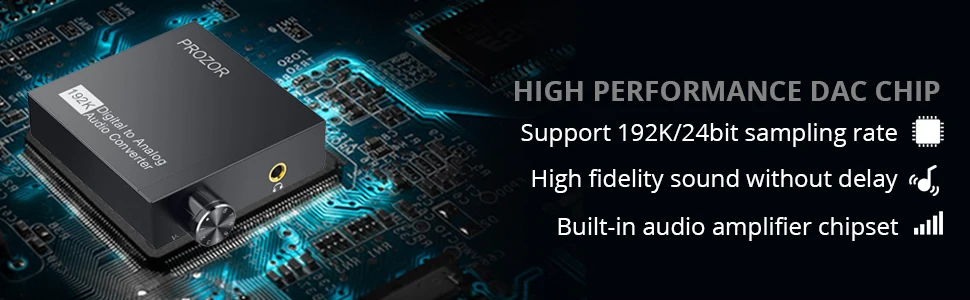

[01] PRR015

Features:
1. One optical input interface to be connected to HD TV, DVD player and other devices.
2. Supports volume adjustment, Built-in Audio Amplifier Chip, Professional audio amplifier chip can amplify the 3.5mm output level and makes the sound pure and clear.
4. Eliminates the noise when no input signal and automatically mute when input non-audio signal.
5. Actually supports sampling rate at 192kHz 24bit.
6. Good anti-interference function makes the sound pure and clear.

Specifications:
Support Audio Format: PCM
3.5mm Output Impedance: 32 ohms
Signal-to-Noise Ratio: 105DB
Separating Degree（1KHZ）: 94DB
Response Frequency: 20Hz~20KHz -0.2db
THD+N: -90DB
Total Harmonic Distortion(THD): 10Hz~20KHz 0.25-0.065%
Blocking Time: 0.577Fs
Sampling Rate: 32~192 KHz
Bit Rate: 16~24 Bit
Input Electrical Level: ± 0.3
Output Electrical Level: 3V
Maximum Output Power: 0.3W
Working Voltage: +5V
Maximum Voltage: 9V
Maximum Power Consumption: 100mA
Operating Temperature Range: -10-70℃
Storage Temperature Range: -60-150℃
Operating Humidity Range:10% - 80%RH(No Condensation)
Storage Humidity Range: 5- 90%RH(No Condensation)
Shell material: Aluminum alloy
Color: Black

NOTE!! It is Incompatible with 5.1 channel signal such as Dolby-AC3, please set the Audio Output to PCM before Using

Package Contents:
1 x PROZOR 192kHz DAC Converter
1 x Optical Cable(3ft/1m)
1 x User Manual
1 x USB Power Cable
