에어컨 및 열 교환용 방수 변환기 청소 키트 3000 와트 28Khz 40Khz
通常価格 22,788,000ウォン
販売価格 7,975,800ウォン
韓国内配送料 国内送料無料
オプション


商品購入についてのご案内


・こちらで紹介している商品はワンモアが販売する商品ではありません。

・この商品の詳細情報、原産地、などは下記の【元の商品ページで開く】をクリックすると通販サイトで確認できます。

・この商品は韓国通販サイト【Auction.co.kr】の情報提携によって掲載しています。

・掲載されている商品のすべてが購入代行可能な商品ではなく、国際発送ができない商品や輸入ができない商品もあります。

・こちらで紹介している商品のイメージや詳細内容につきましては一切責任を負いません。

・購入希望の場合は販売サイト情報をご確認の上、「購入代行サービスお申し込み」よりご依頼ください。

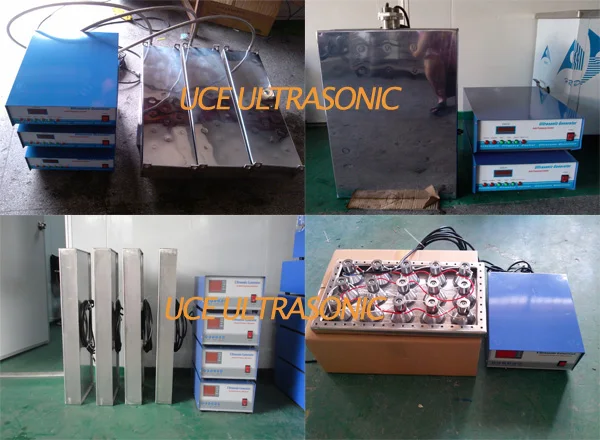

Car Parts Cleaning Submersible Immersible Ultrasonic Transducer with generator for 1000W ultrasonic cleaning

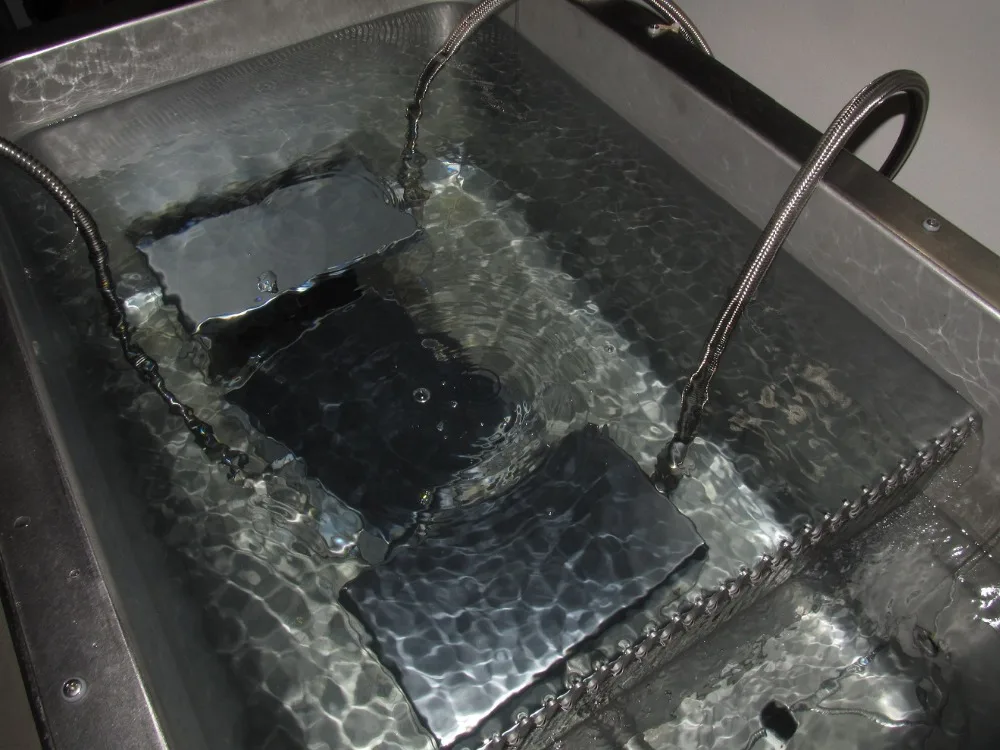

The ultrasonic vibration plate is also called an ultrasonic vibration box or an ultrasonic cleaning box, which is an ultrasonic cleaning device composed of an ultrasonic vibrator bonded and sealed in a stainless steel box and an ultrasonic generator. Generally placed in various cleaning tanks to achieve the purpose of ultrasonic cleaning. The size of the vibration plate and the direction of the lead tube can be made into three types: bottom vibration type, side vibration type and top vibration type according to different installation positions, to achieve a thorough cleaning effect according to different usage requirements. It is suitable for electronic parts, electroplating hardware, auto parts, optical lenses, jewelry, glassware, filter elements, spinnerets, medical equipment, etc.

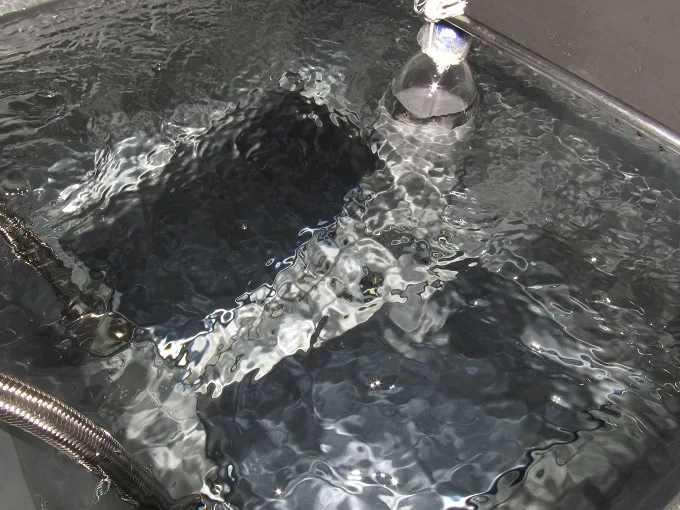

The application principle of the ultrasonic vibration plate is that the high-frequency oscillation signal sent by the ultrasonic generator is converted into a high-frequency mechanical oscillation by the transducer and transmitted to the medium. The flow of liquid produces tens of thousands of tiny bubbles. The tiny bubbles (cavitation nuclei) in the liquid vibrate under the action of the sound field. When the sound pressure reaches a certain value, the bubbles grow rapidly, then suddenly close, and the bubbles close When a shock wave is generated, thousands of atmospheric pressures are generated around it, destroying insoluble dirt and dispersing them in the cleaning fluid. When the group particles are wrapped in oil and adhere to the surface of the cleaning part, the oil is emulsified and the solid particles are Separation, so as to achieve the purpose of cleaning the surface of the cleaning part.


Ultrasonic cleaning is widely used in surface spray treatment industry, machinery industry, electronics industry, medical industry, semiconductor industry, watch jewelry industry, optical industry, textile printing and dyeing industry. For other industries, the application of ultrasonic cleaning is as follows

1. Surface spraying treatment industry: (cleaning attachments: oil, mechanical cuttings, abrasives, dust, polishing wax) before electroplating, removal of carbon deposits, removal of oxide scale, removal of polishing paste, degreasing and rust removal, cleaning before ion plating, Phosphating treatment, surface activation treatment of metal workpieces, etc. Stainless steel polished products, stainless steel knives, tableware, knives, locks, lighting, hand decorations before spraying, cleaning before electroplating.

2. Machinery industry: (Cleaning attachments: cutting oil, abrasive particles, iron filings, dust, fingerprints)

Removal of anti-rust grease; cleaning of measuring tools; degreasing and rust removal of mechanical parts; engines, engine parts, gearboxes, shock absorbers, bearing bushes, nozzles, cylinder blocks, valve bodies, carburetor and automotive parts and chassis paint Degreasing, rust removal, cleaning before phosphating; dredging and cleaning of filters, piston fittings, filter screens, etc. Precision machinery parts, compressor parts, camera parts, bearings, hardware parts, molds, especially in the railway industry, are very suitable for the degreasing and decontamination of air conditioners in train cars, and the anti-rust, derusting and degreasing of various parts of the train head.


Type

Diamention(mm)

Frequency?(Khz)

Power(W)

Ultrasonic?Transducer

UCE-UITP300W

300*190*100

25,28,33,40,80,130

300

6

UCE-UITP600W

360*275*100

25,28,33,40,80,130

600

12

UCE-UITP1000W

450*350*100

25,28,33,40,80,130

1000

20

UCE-UITP1200W

470*380*100

25,28,33,40,80,130

1200

24

UCE-UITP1500W

520*450*100

25,28,33,40,80,130

1500

30

UCE-UITP1800W

560*450*100

25,28,33,40,80,130

1800

36

UCE-UITP2000W

650*450*100

25,28,33,40,80,130

2000

40

UCE-UITP2400W

740*520*100

25,28,33,40,80,130

2400

48

UCE-UITP3000W

820*540*100

25,28,33,40,80,130

3000

60

UCE-UITP5000W

1200*590*100

25,28,33,40,80,130

5000

100

OEM?Ultrasonic?Immersible?Transducer?Pack（Size,?Frequency,Power）

Car Parts Cleaning Submersible Immersible Ultrasonic Transducer with generator for 1000W ultrasonic cleaning
