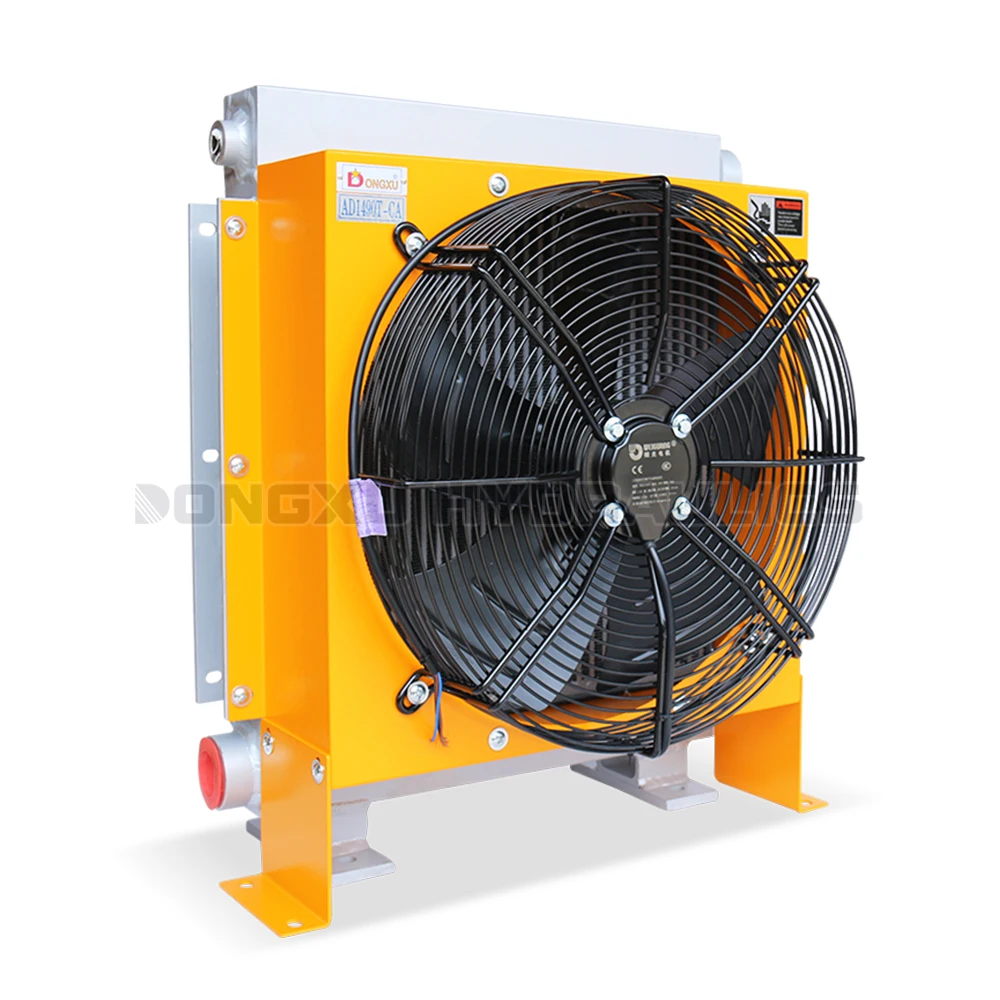

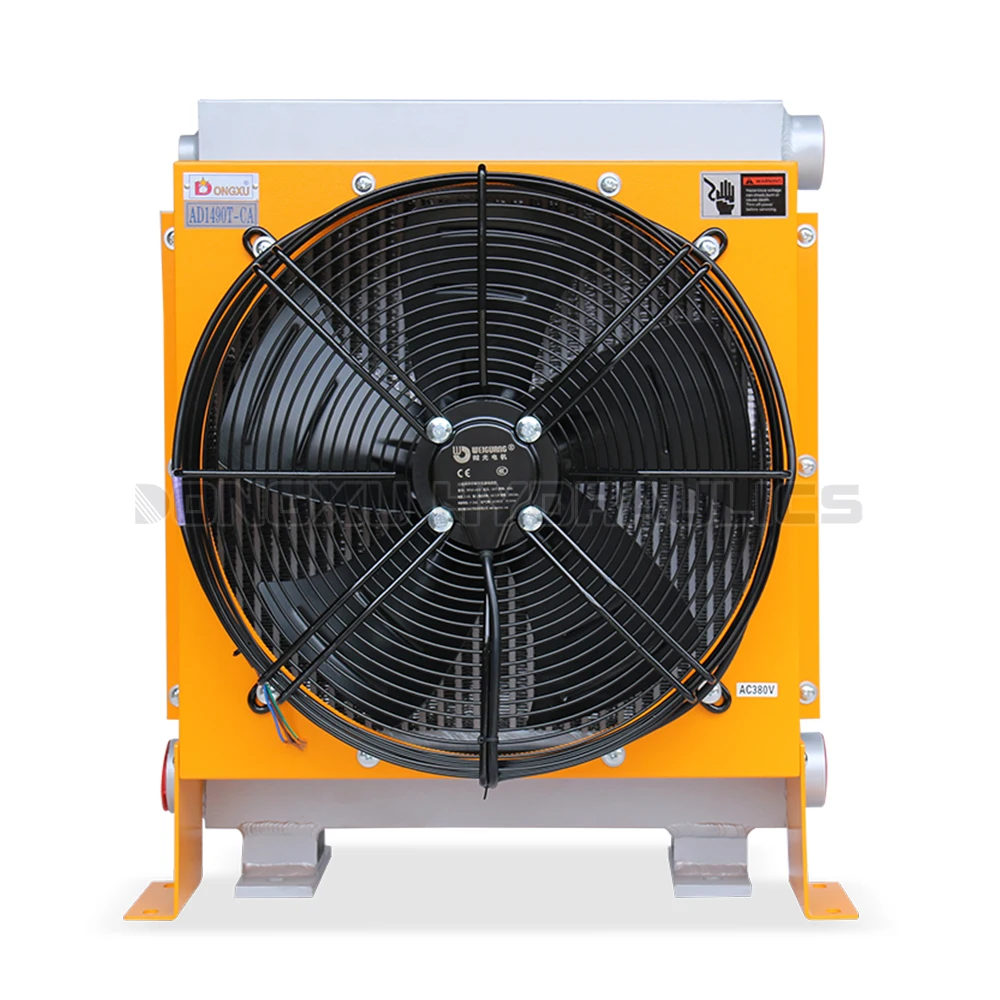

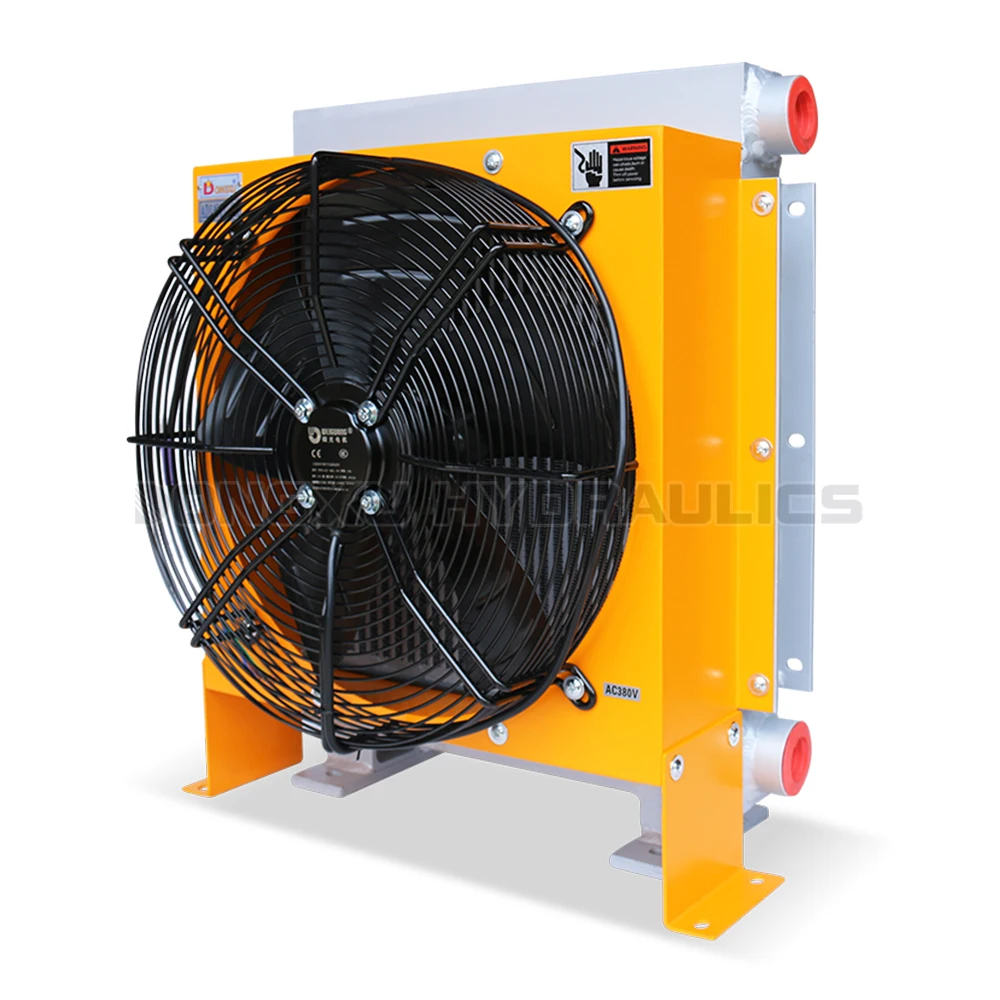

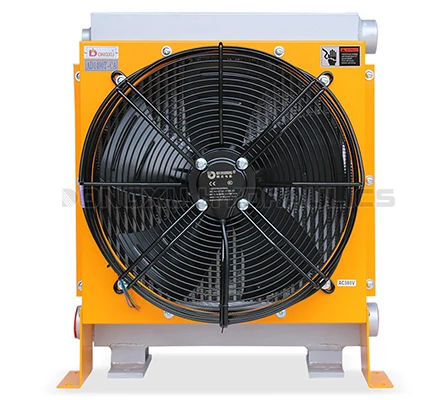

공기 열 교환기 유압 공기 선풍기 오일 쿨러 라디에이터 냉각 용량 24KW AC 380V AD1490T 250lpm
|
|||||||||||||||||
| 商品購入についてのご案内 | |||
|
|||
Dear customer We are a supplier from China, and our products are carefully selected and calculated to ensure high quality without any defects. If you have any questions, please feel free to contact us. We will provide the most sincere and enthusiastic service to meet any of your needs!We are sellers from China, and the products we bring to our customers must be carefully selected by us. Customer satisfaction is our eternal pursuit. We will continue to provide you with the most sincere, thoughtful, and satisfactory service. Thank you very much again!
Products Description
|
Model NO
|
AD1490T-CA
|
||||
|
Rated Flow [L/min]
|
250
|
||||
|
Working Pressure [MPa]
|
≤2.0
|
||||
|
6Fan Power [W]
|
180
|
180
|
190
|
||
|
Fan Voltage [V]
|
380
|
220
|
12
|
||
|
Cooling Capacity [KW]
|
24
|
||||
|
Net Weight [kg]
|
25
|
||||
product details

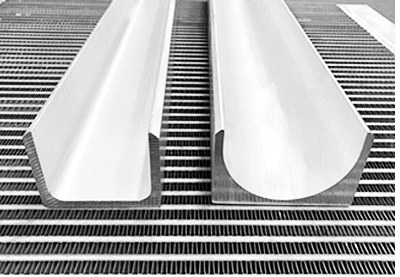

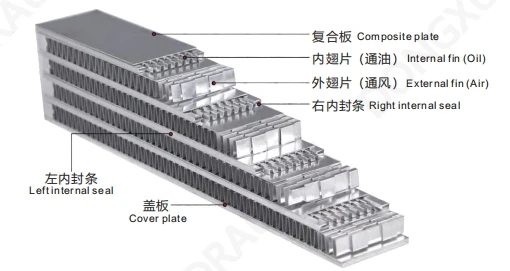

FINNED COOLER
Compact structure, light weight,
better heat transfer efficiency.

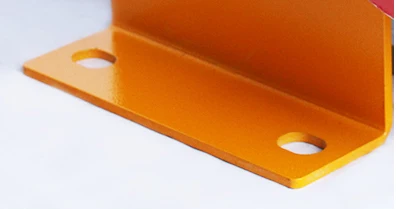

MOUNTNG FOOT
All use thickened pressure
resistant
B alu-minum profile

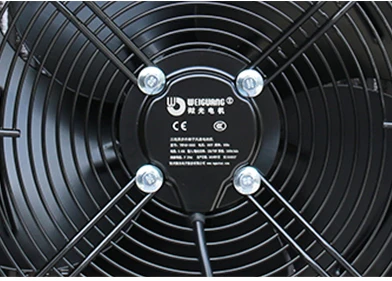

FAN
Ensure the balanced
operation of the fan
MOUNTNG FOOT
Enhanced and thickened mounting foot toensure
solid and stable

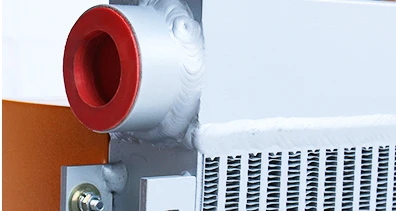

OIL ORIFICE
Resist back pressure during oil supply and reduce diagenesis

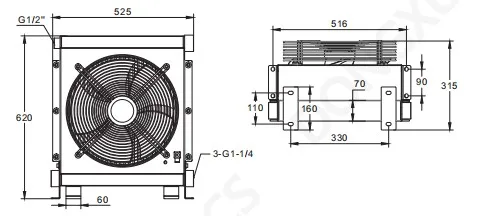

Product size drawing
AD1490T-CA 250L/min China heat exchanger radiator
The air cooler are made of aluminum alloy material with light weight, good seismic intensity, high heat transfer efficiency. In the structure fo the channel, adopting the efficient fin, the maximum increase the heat transfer area, increase the total heat transfer coefficient.Advantages:
1. Easy operation, convenient instalation. 2. Compact structure, large heat dissipation area and high heat transfer efficiency.
3. Environment protecting, energy conservation, easy maintenance and low operating cost. 4. Suitable for oil temperature from 10℃--180℃, suitable environment temperature from -40℃---100℃. 5. Long working life, high working pressure, cooling the oil return, oil drain and independent loop of hydraulic system.
1. Easy operation, convenient instalation. 2. Compact structure, large heat dissipation area and high heat transfer efficiency.
3. Environment protecting, energy conservation, easy maintenance and low operating cost. 4. Suitable for oil temperature from 10℃--180℃, suitable environment temperature from -40℃---100℃. 5. Long working life, high working pressure, cooling the oil return, oil drain and independent loop of hydraulic system.
|
SELECTION TABLE
|
||||||||
|
Model
|
Rated Flow
|
Pressure
|
Fan Power
|
Fan Voltage
|
||||
|
AJ0510T-CA
|
25L/min/10L/min
|
0.8MPa
|
35W/16W
|
380V/220V/24V/12V
|
||||
|
AJ1025T-CA
|
25L/min
|
0.8MPa
|
35W/16W
|
380V/220V/24V/12V
|
||||
|
AW0607T-CA
|
20L/min
|
2.0MPa
|
35W/16W
|
380V/220V/24V/12V
|
||||
|
AW1417T-CA
|
150L/min
|
2.0MPa
|
142W/120W
|
380V/220V/24V/12V
|
||||
|
AH0608T-CA
|
60L/min
|
2.0MPa
|
35W/16W
|
380V/220V/24V/12V
|
||||
|
AH1012T-CA
|
100L/min
|
2.0MPa
|
80W/50W/60W
|
380V/220V/24V/12V
|
||||
|
AH1417T-CA
|
150L/min
|
2.0MPa
|
129W/120W
|
380V/220V/24V/12V
|
||||
|
AH1470T-CA
|
200L/min
|
2.0MPa
|
129W/120W
|
380V/220V/24V/12V
|
||||
|
AH1490T-CA
|
250L/min
|
2.0MPa
|
129W/120W
|
380V/220V/24V/12V
|
||||
|
AD1417T-CA
|
150L/min
|
2.0MPa
|
129W/190W/200W
|
380V/220V/24V/12V
|
||||

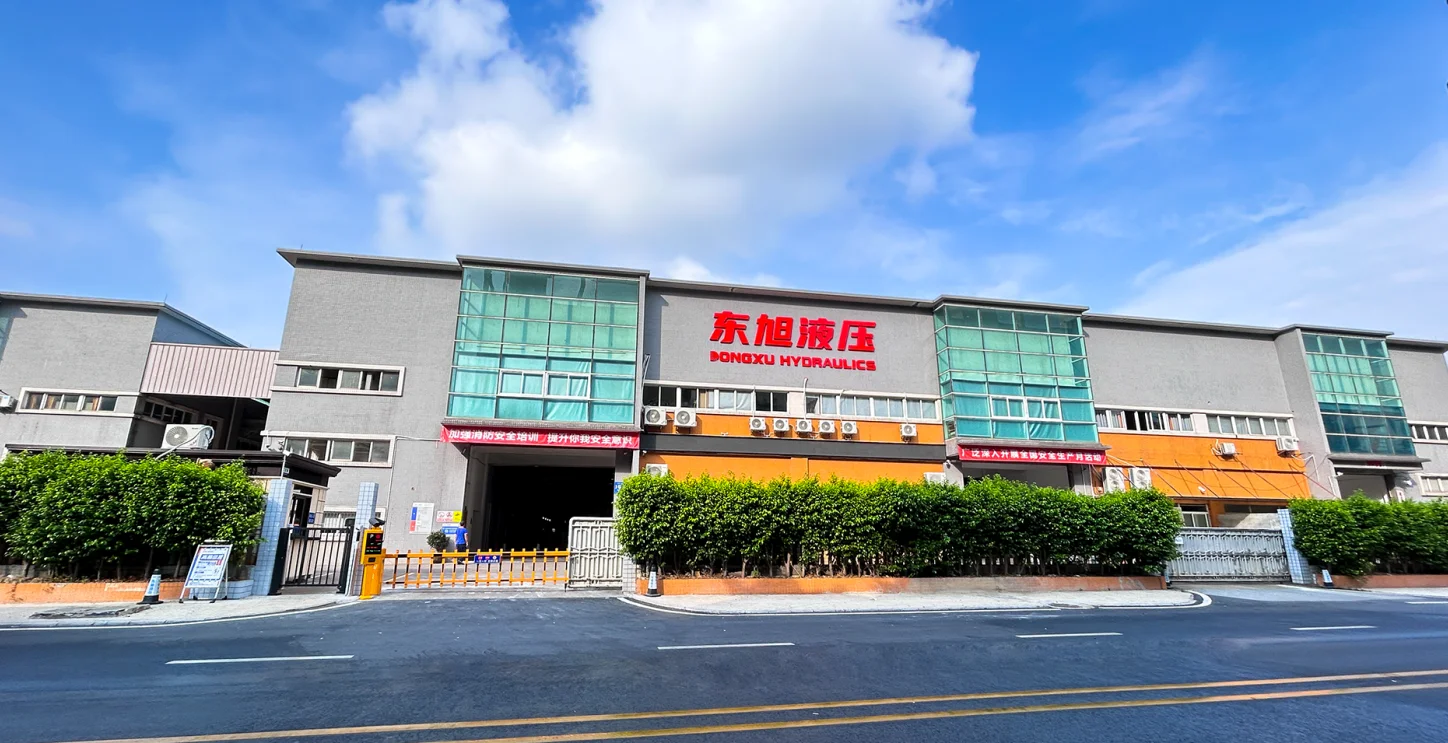

Company Profile
22 years focus on fluid temperature control technology innovation to provide more energy saving, efficient and safe temperature control technology solutions.

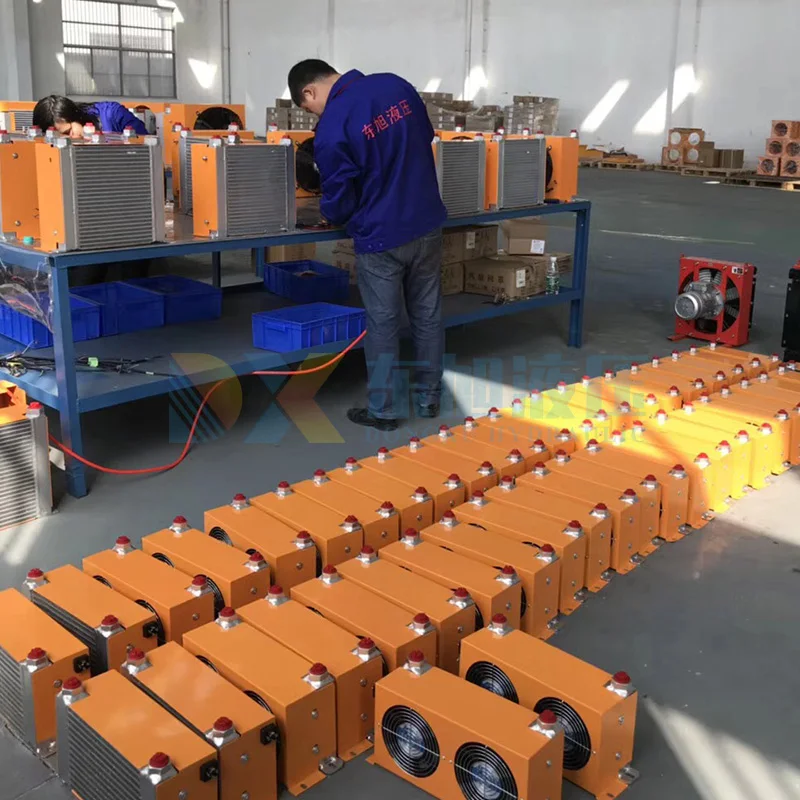

Manufacturing Technique
Raw material preparation

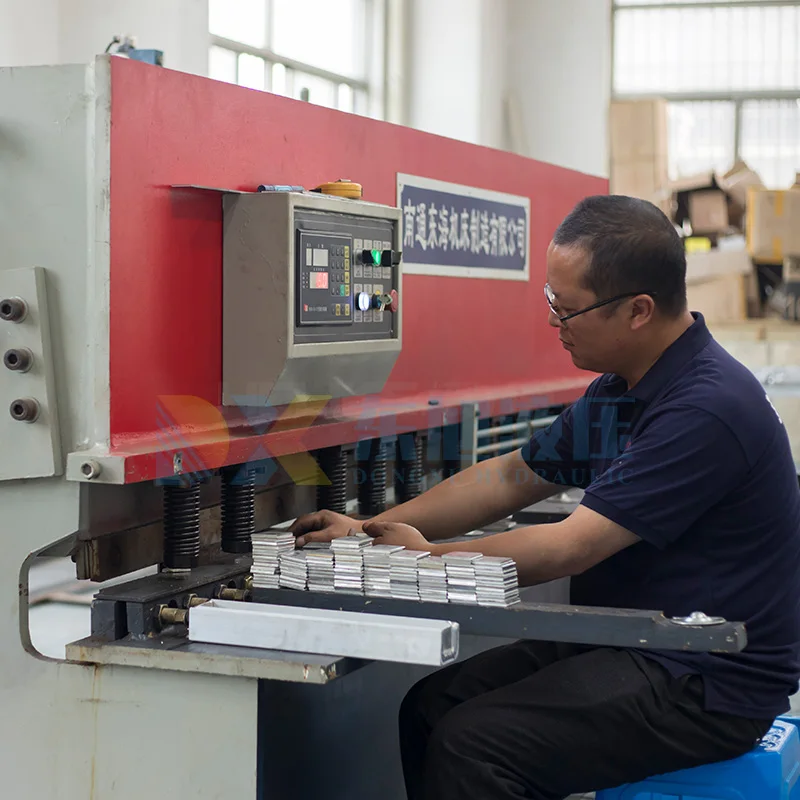

Fin forming

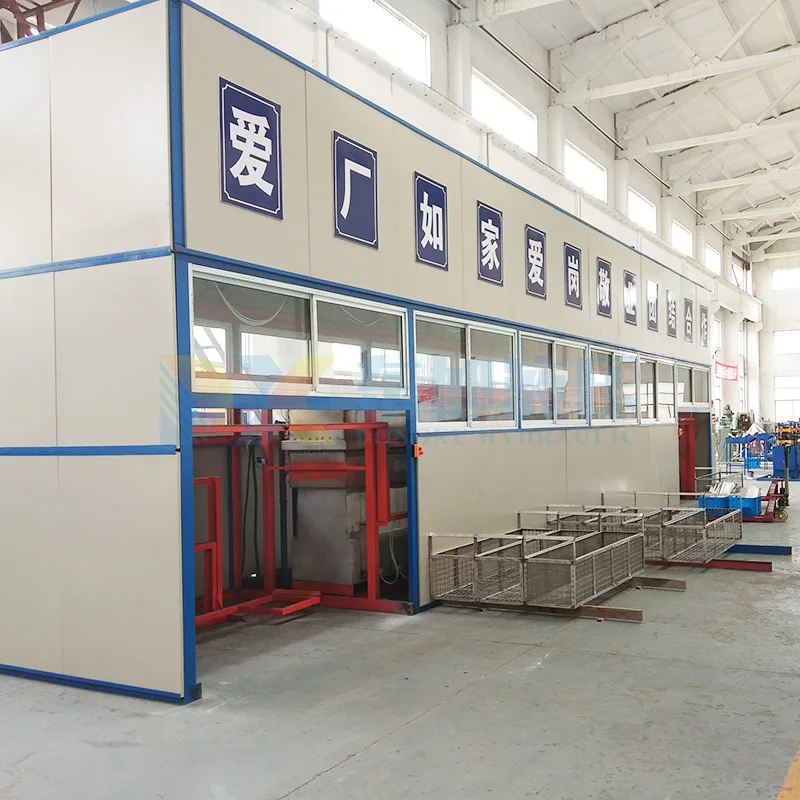

Ultrasonic cleaning

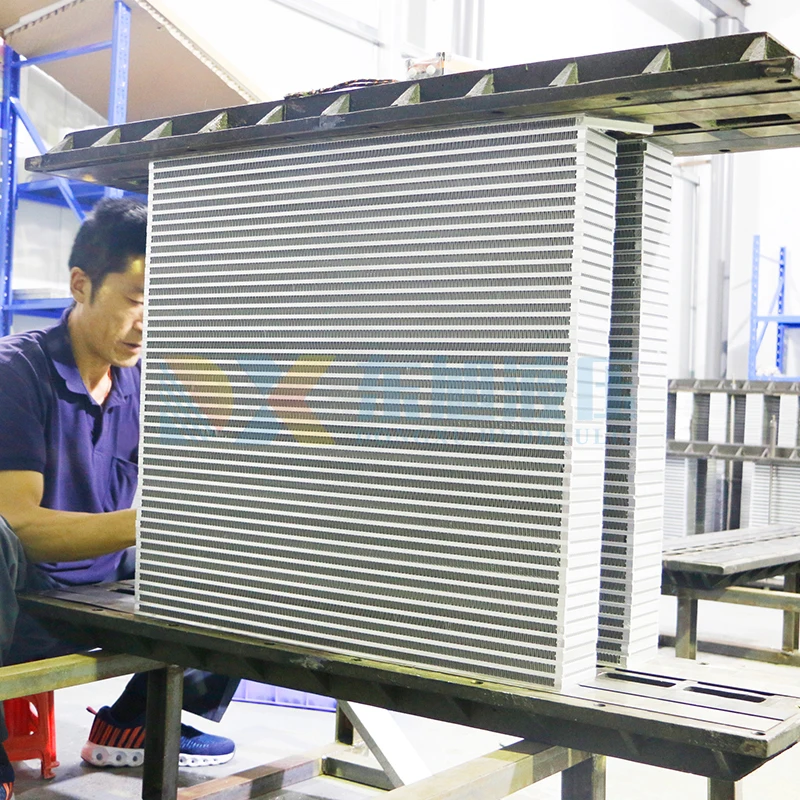

Core assembly

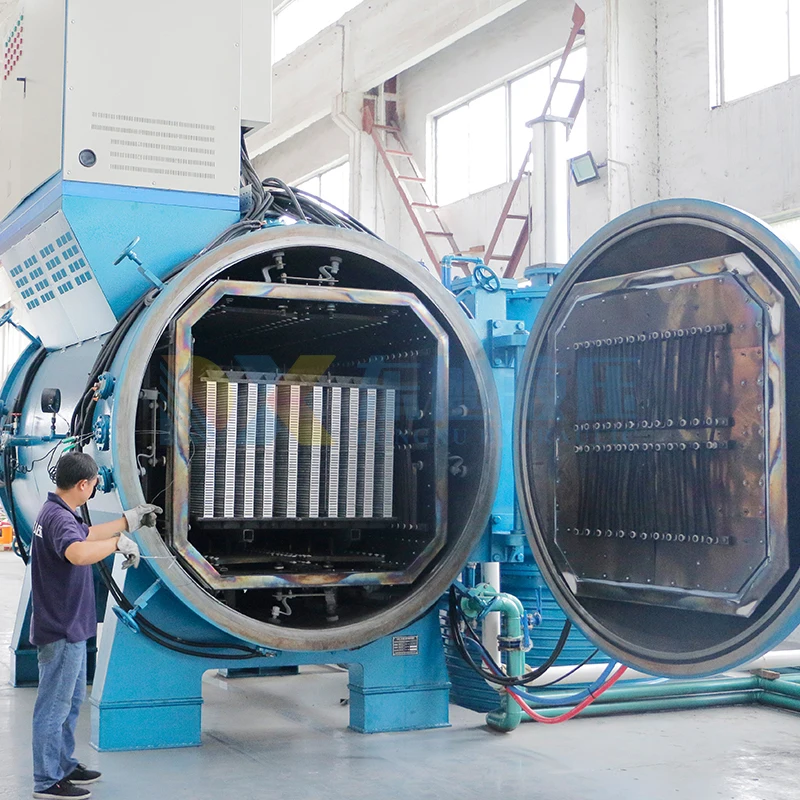

Vacuum brazing

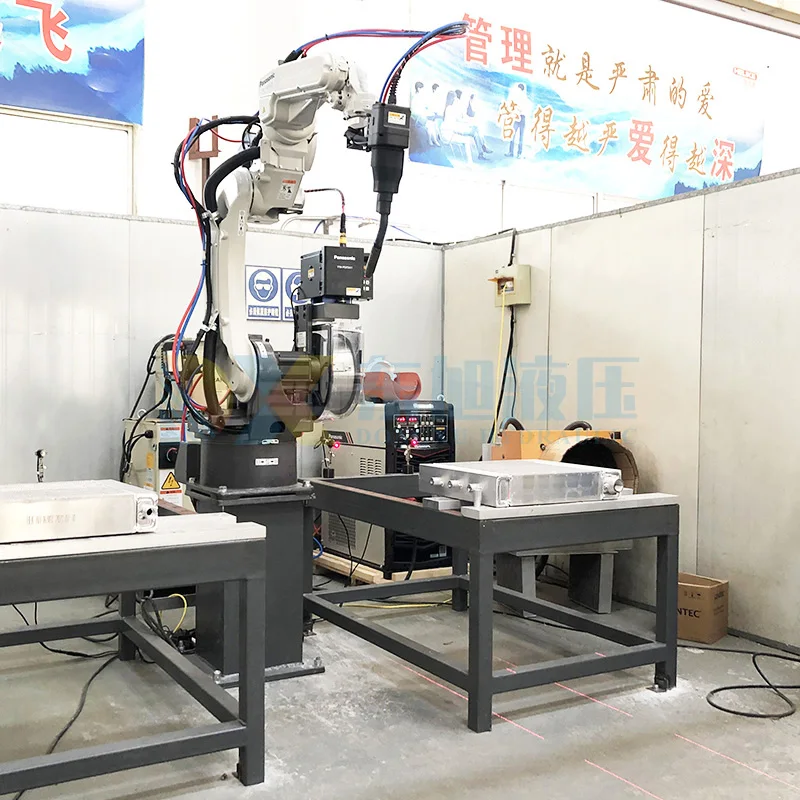

Automtlc welding

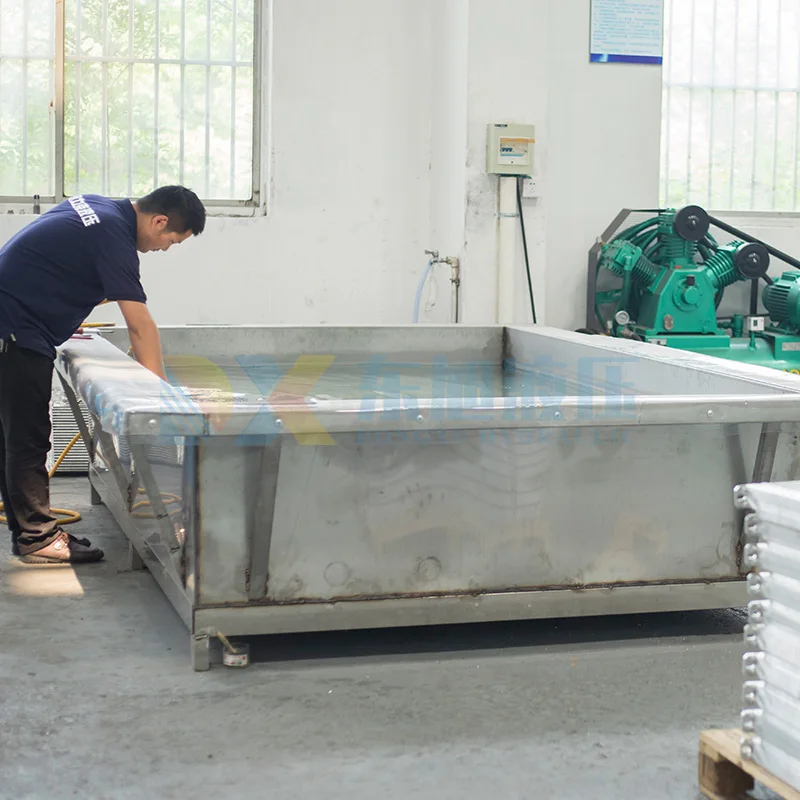

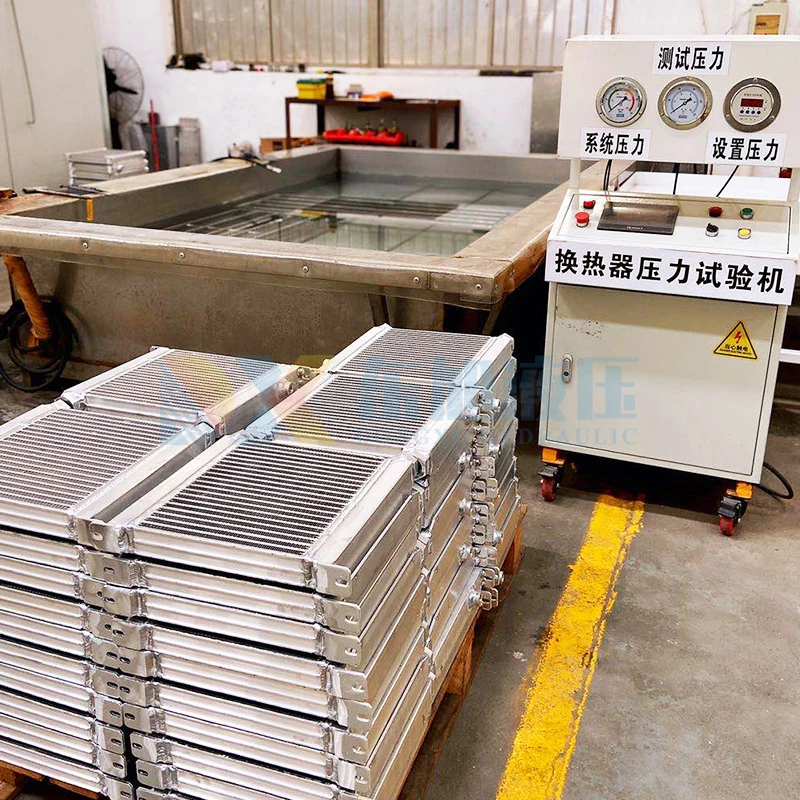

Leak test
Quality inspection
Air tightness testing
Assemble
Factory finished
Wooden case packing

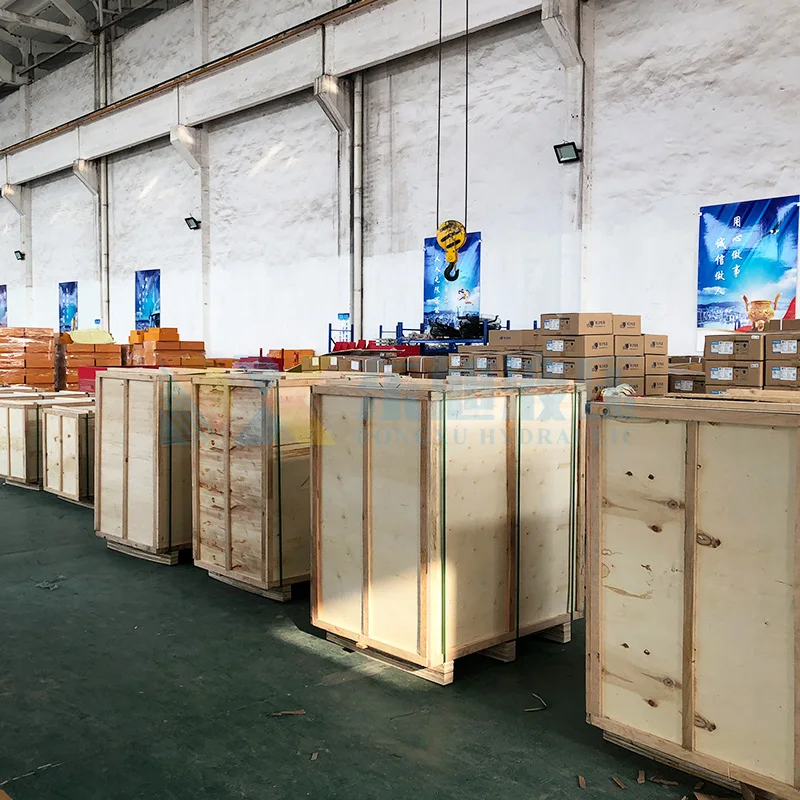

Packing & transportation

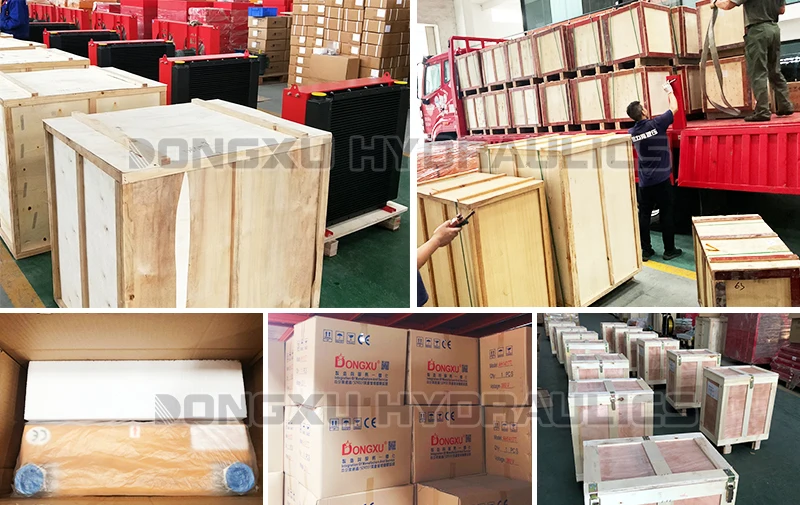

Packing detail:
1. Inside packed with anti-earthquake PE&PA airbags and EPS foams to protect for side-impact
2. Small size cooler packed with extra thick 5 layers cartons, Large size cooler packed with fireproof glued wood cases
Payment term:
1,T/T, Paypal, Wester union and alibaba Trade Assurance.
2. Delivery time: 7-15days after receiving deposite
3. samples for quality reference are available
4. Shipping port: Shenzhen/Guangzhou as your require.
1. Inside packed with anti-earthquake PE&PA airbags and EPS foams to protect for side-impact
2. Small size cooler packed with extra thick 5 layers cartons, Large size cooler packed with fireproof glued wood cases
Payment term:
1,T/T, Paypal, Wester union and alibaba Trade Assurance.
2. Delivery time: 7-15days after receiving deposite
3. samples for quality reference are available
4. Shipping port: Shenzhen/Guangzhou as your require.
Since its establishment, Dongxu has always adhered to the principle of people-oriented, quality first, independent innovation, continuous improvement, and development with leading technology.
"Dongxu" has always been committed to becoming a pioneer leader in the hydraulic industry, and strive to become the best partner for global machinery and equipment producers and operators in the hydraulic industry. Looking forward to cooperating with you!

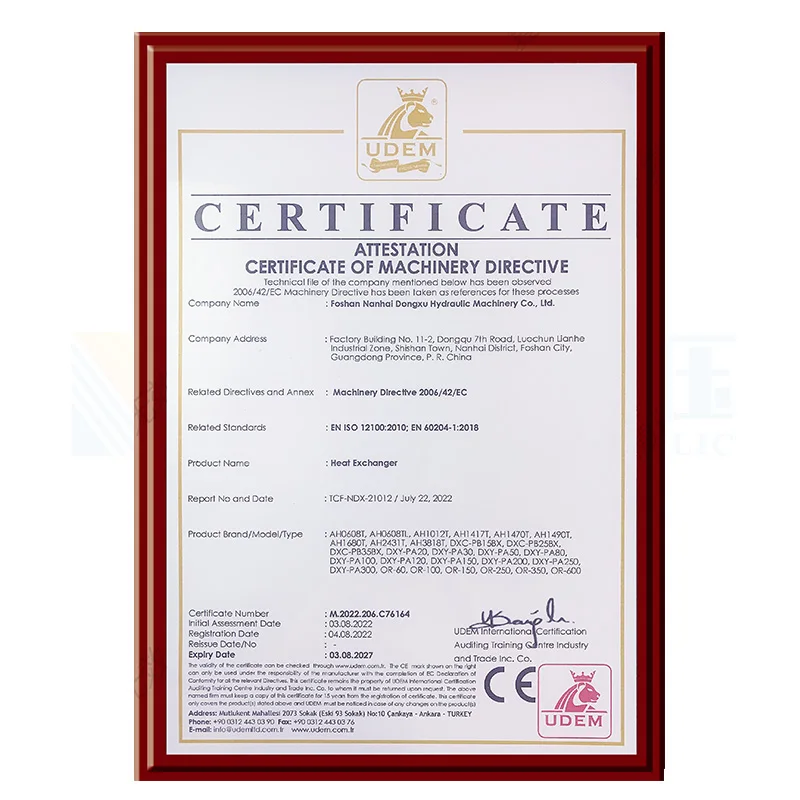

Certifications
High and new technology enterpris
National level technology-based enterprises
Specialized, refined, and innovative enterprises
High and new technology enterpris
National level technology-based enterprises
Specialized, refined, and innovative enterprises
Exhibition
