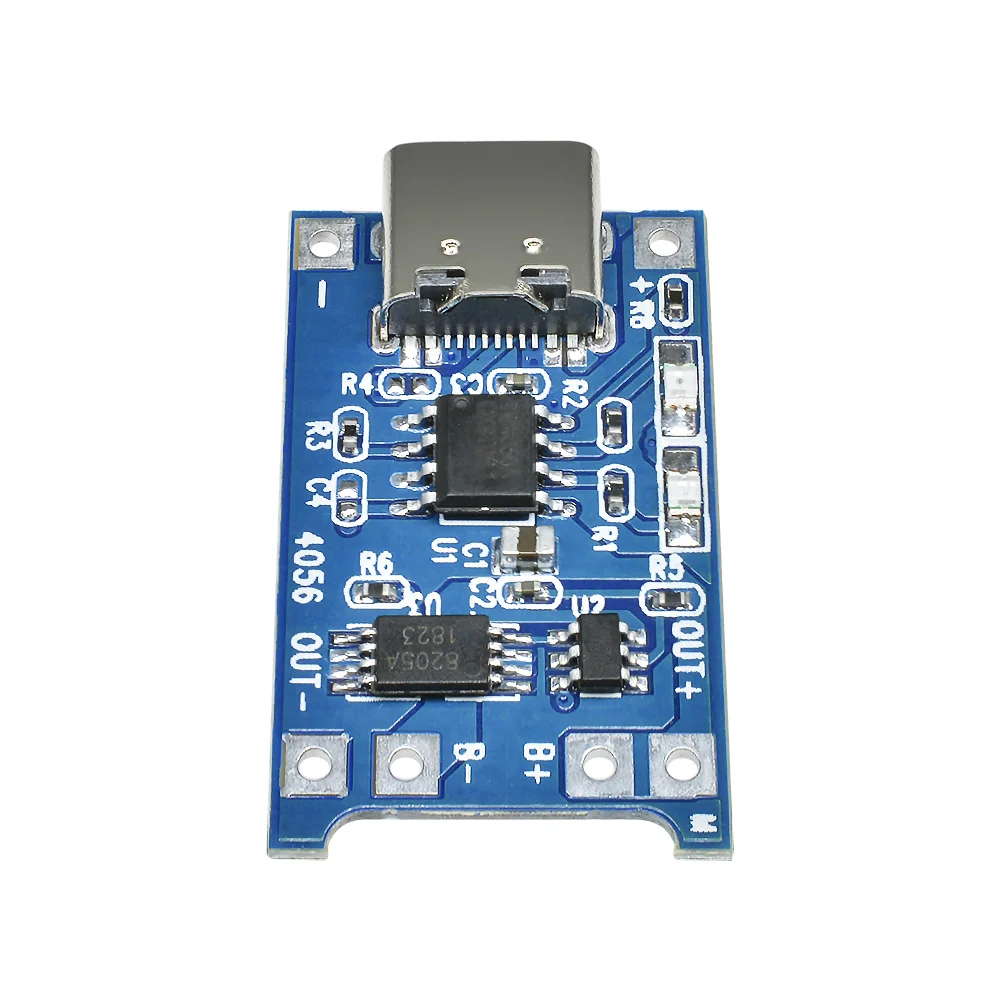

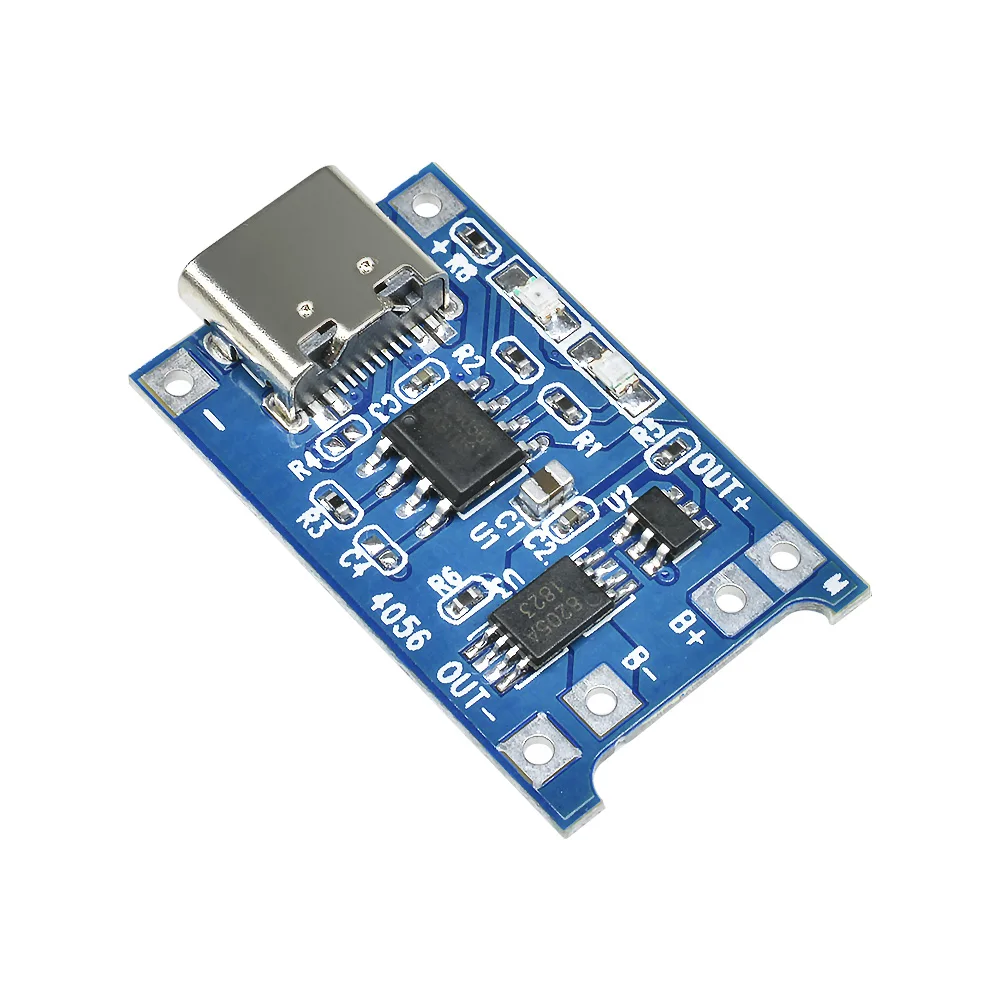

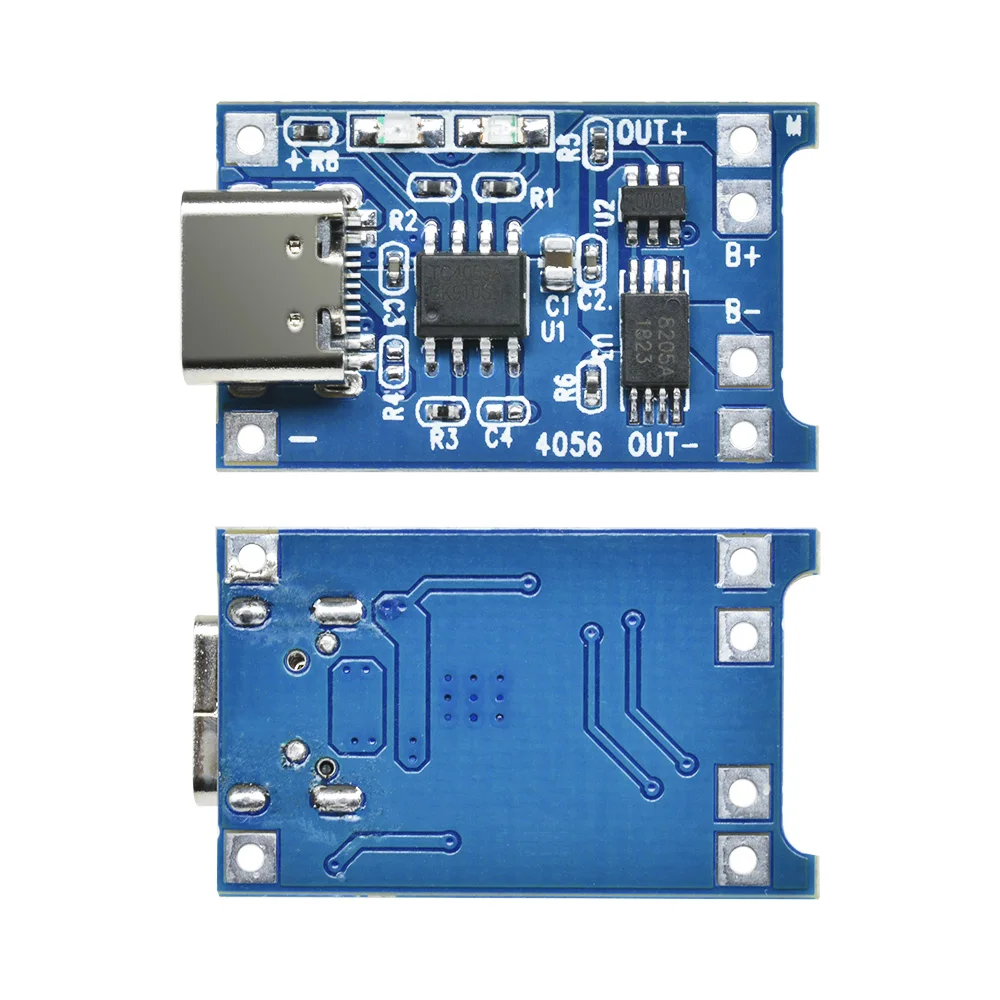

type-c USB 5V 1A 18650 TP4056 lithium battery charger module charging board

describe :

Input voltage: 4.35-6V (recommended voltage 5V)

Charge cutoff voltage: 4.2 V +/- 1%

Maximum charging current output: 1000 mA

Battery overcharge protection voltage: 4.28 V.

Battery overcharge boost: 4.00 V.

Battery discharge protection voltage: 3.0 V.

Battery discharge termination voltage: 3.2 V.

Battery: overcurrent protection current 3a

Board size: about 2.5*1.65 CM

Light status: no-load light off, red light for charging, green light for full.

The charge should separate the positive and negative poles of the OUT terminal of the load, it cannot be wrong, please follow the specifications, otherwise it will be directly damaged.

The first time you connect the battery, there should be no voltage between the output OUT+ and OUT-, and then connect the 5V voltage to charge your energy to activate the protection circuit, connect the battery from B+B-, and then draw a line to short-circuit and open the circuit. Recharge to activate the protection circuit. Note that the charger must be able to output more than 1A when inputting a mobile phone charger, otherwise it cannot be charged

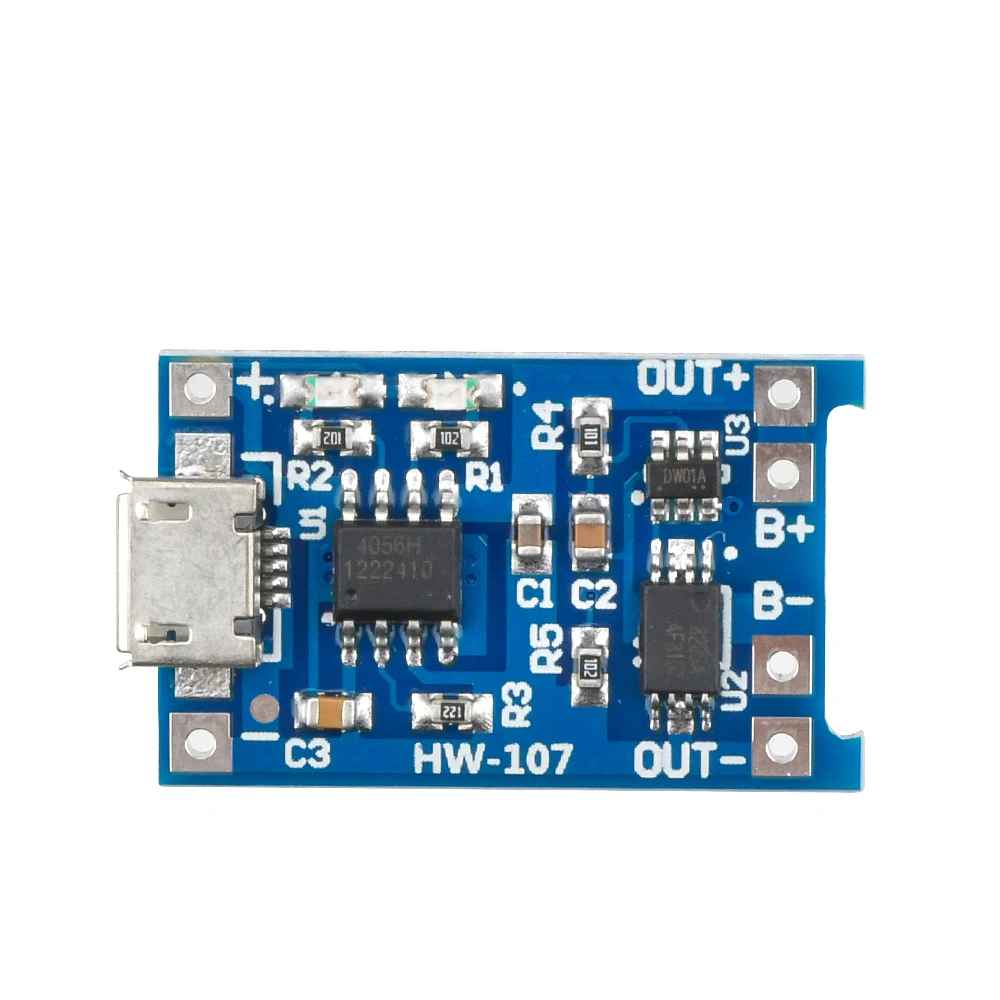

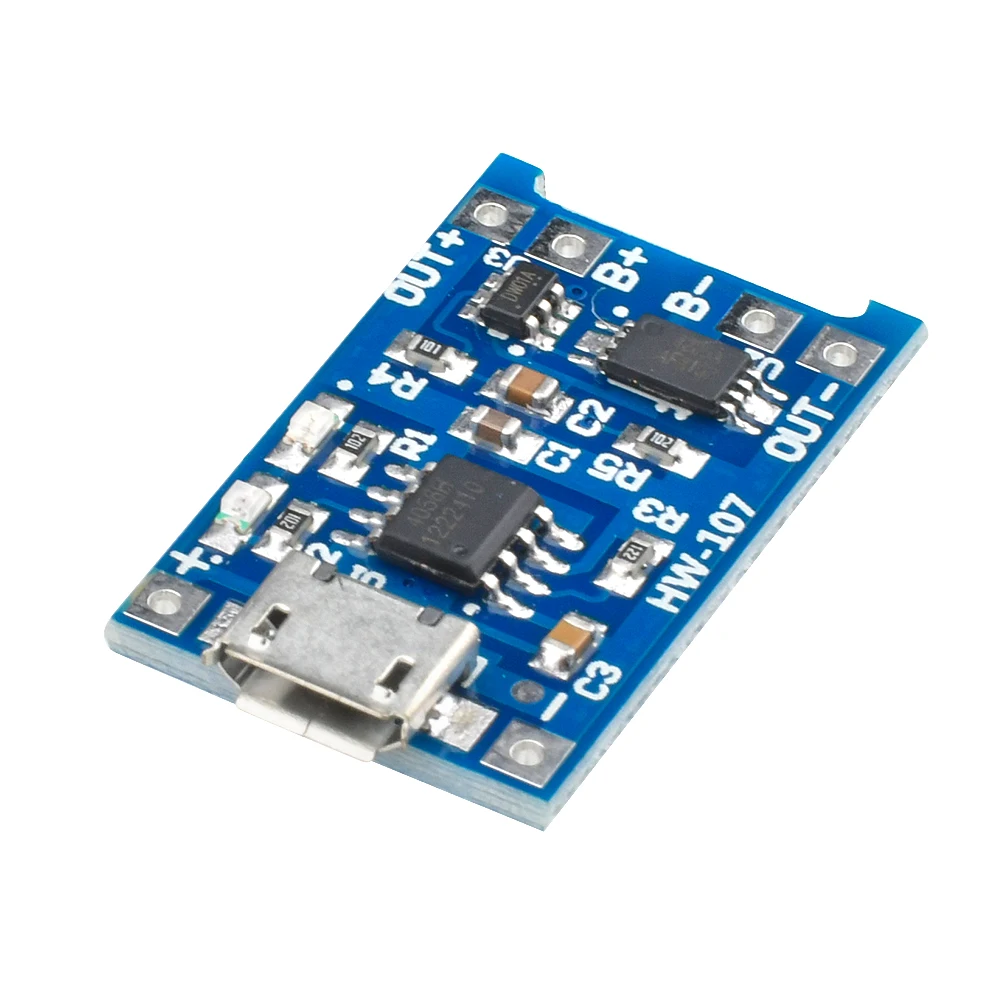

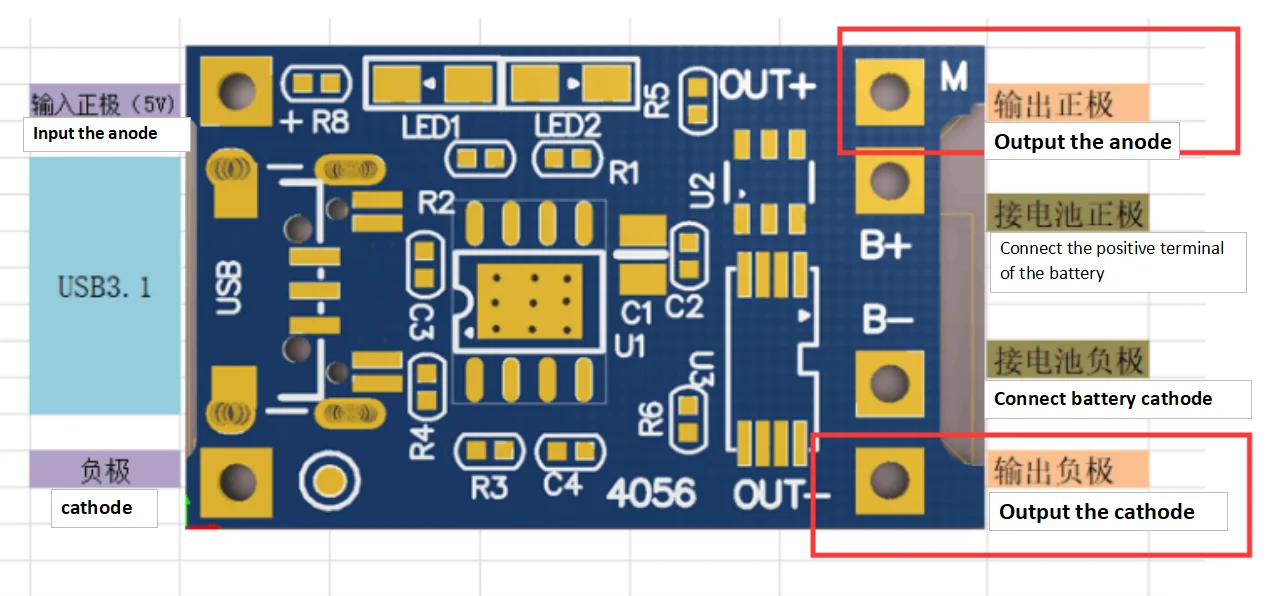

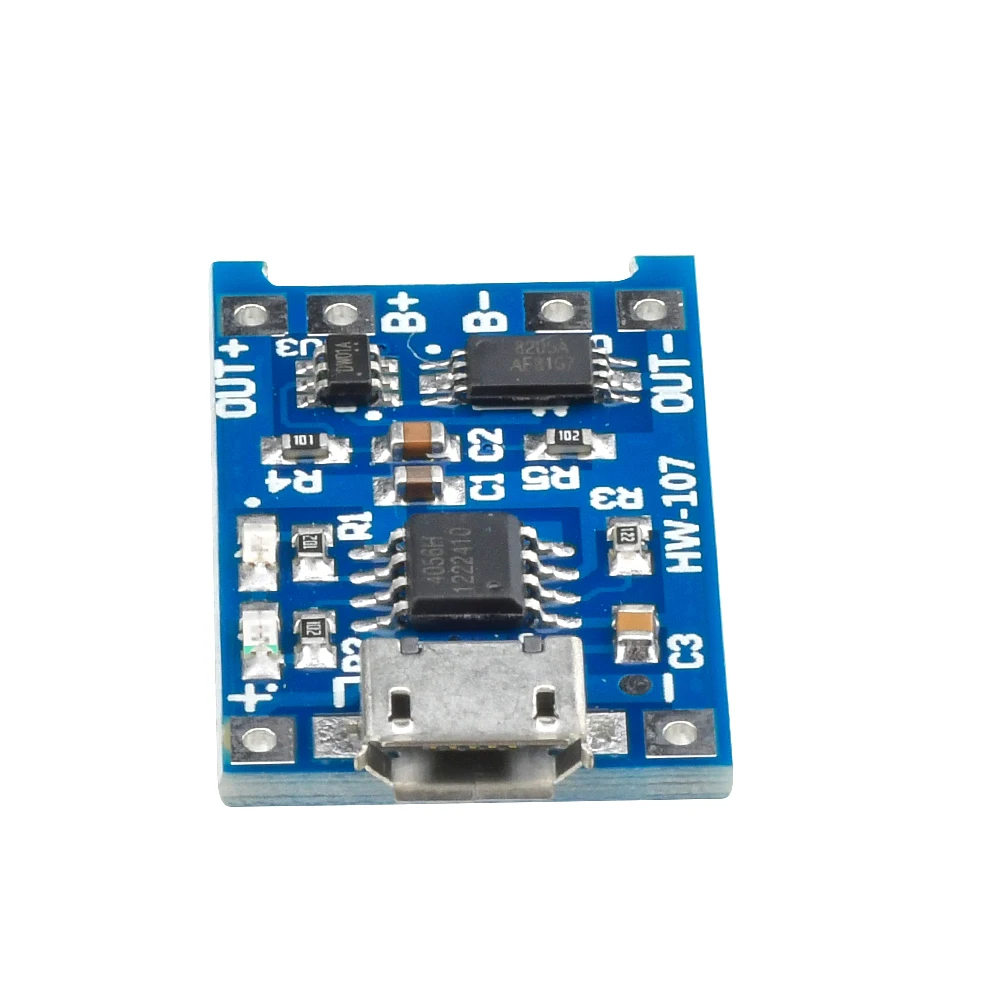

+ MICRO USB female header and next power input pad, connect to 5V. The B+ positive pole is connected to the lithium battery, and B- is connected to the negative pole of the lithium battery. OUT+ and OUT- are connected to loads, such as positive and negative poles connected to mobile booster boards or other loads.

Connect the battery to B+B-, insert the USB female mobile phone charger, the red light is charging, the green light is too full.

The input has a MICRO USB female connector, which can be directly used as a lithium battery input with a mobile phone charger.

And it is also the wiring pad of the input voltage, which can be very convenient for DIY
