Please confirm that this product is suitable for your heating

equipment before installation;

*Before installation or maintenance, please make sure to keep

the power off;

*Please strictly follow the wiring diagram for wiring installation;

*Installation to the wall, please confirm that the fasteners are

suitable for this product;

*Do not pull the cable too hard, otherwise the product will be

damaged;

*If a hard plastic wire is used in the installation process, it must

be bent to an appropriate angle in advance;

*Please arrange for professionals to install;

*Please contact the after-sales service for equipment failure,

please do not try to repair it yourself;

* After installation, please refer to this manual to check again to

ensure normal and safe use, and keep this manual properly.

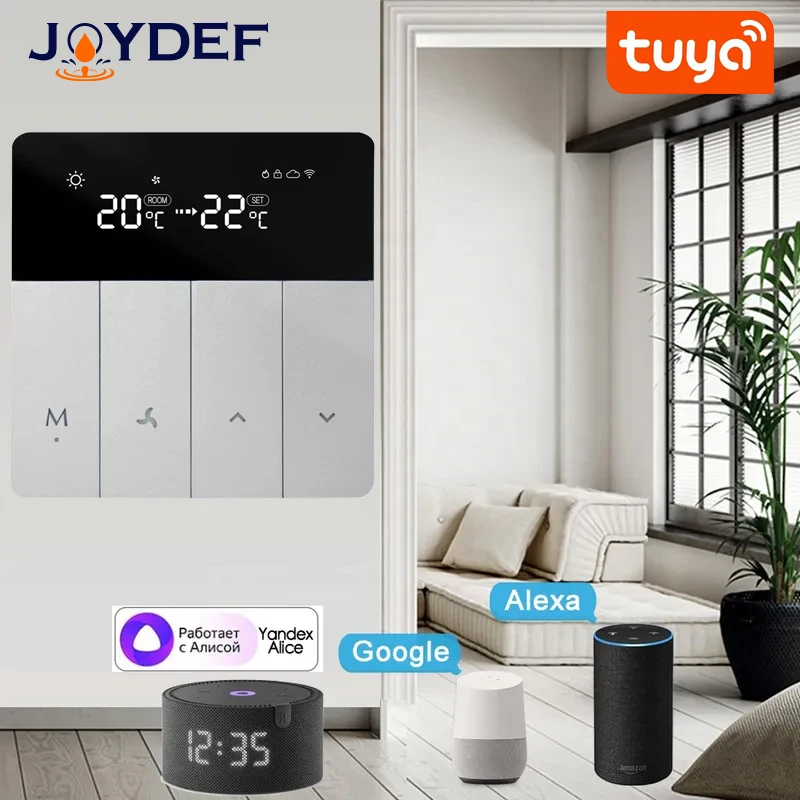

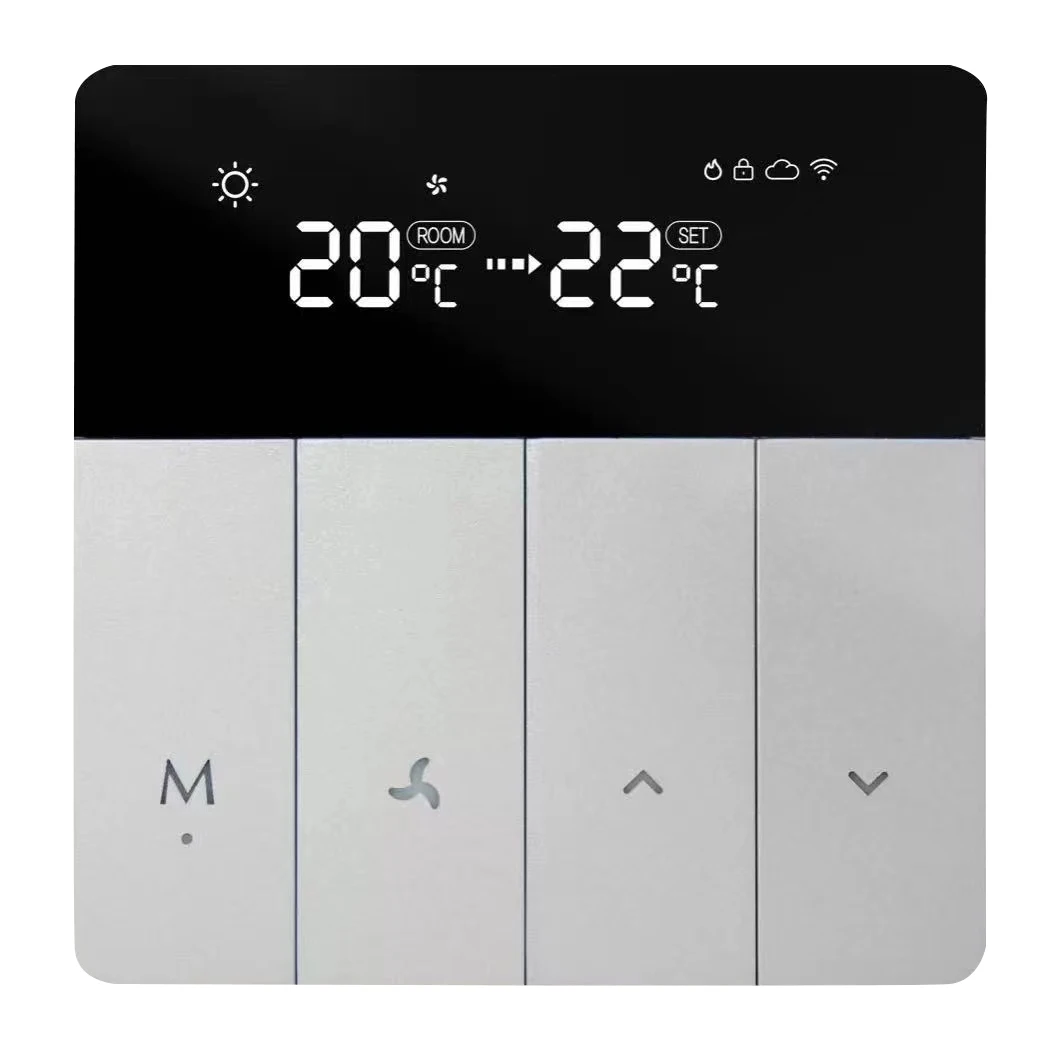

On Appearance

1. LED display, more friendly interface;

2. Touch operation buttons, smoother interaction;

3. The ultra-thin embedded panel perfectly fits all kinds of walls;

4. The borderless small rounded corner design is simple and atmospheric;

5. Compatible with standard 86mm square cassettes and 60mm European

cassettes to meet all installation environments;

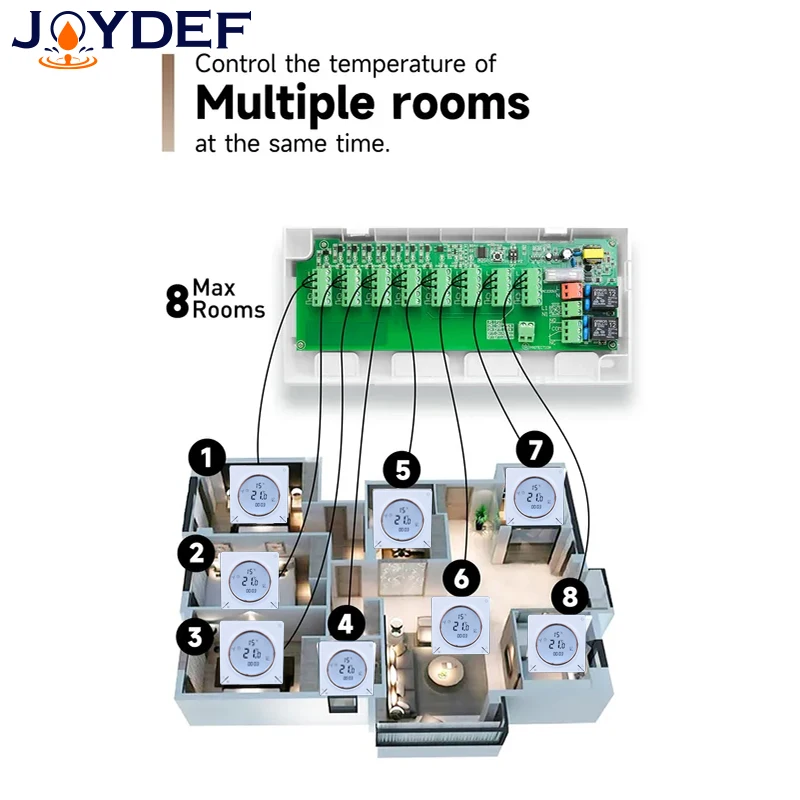

Floor heating central controller receiver Installation instruction drawing
