와이파이 스마트 중앙 에어컨 온도 조절기 2 4 파이프 3 속도 팬 코일 유닛 무선 음성 투야 온도 컨트롤러
|
|||||||||||||||||
| 商品購入についてのご案内 | |||
|
|||
2 Pipe 4 Pipe WiFi Smart Central Air Conditioner Thermostat 3 Speed Fan Coil Unit Wireless Remote Voice Control Tuya Smart Life Temperature Controller Work with Alexa Google Assistant
Attention:
Please help to check if your air conditioner is 2 pipe or 4 pipe and choose the right option. And check if need wifi function or not.
Features:
YIDI WIFI Smart Room Thermometer are designed to on/off control the fans and valves in air conditioner applications via comparison of the room temperature and setting temp. as reaching the aim of the comfor and saving engegy.
Appearance:
1. 86mm hidden box and european 60mm round box is suitable.
2. Whie, black or mix-color housing creates your colorful life.
3. White backlight protect your eyes.
4. Touch buttons to make simple operations.
Function:
1. Powerful functions are available such as WIFI/Modbus ect. If need Modbus type, contact us.
2. 0.5℃ Accuracy keeps temperature within the level you set.
3. Clock memory when power is off.
4. 5+2 six periods programmable maximize comfort and economy/
5. Creat thermostat group to centrally control.
6. Integrated with Amazon Echo, Google Home, Tmall Genie.
7. Support device sharing to your family or friends.
8. All setting languages synchronize your time zone, address and language.
9. No limit to add thermostats in APP.
10. Support Smart Scene.
Technical Data:
Power Supply: 95~240VAC, 50~60Hz
Fan Relay Amps Resistance: 5A; Inductive: 3A
Valve Relay Amps Resistance: 3A; Inductive: 1A
Sensor: NTC 3950, 10K
Accuracy: ±0.5℃
Set Temp. Range: 5-35℃
Display Temp. Range: 5~99℃
Ambient Temp.: 0-45℃
Ambient Humidity: 5~95% RH (Non Condensing)
Storage Temp.: -5~45℃
Power Consumption: ＜1.5W
Timing Error: ＜1%
Shell Material: PC+ABS (Fireproof)

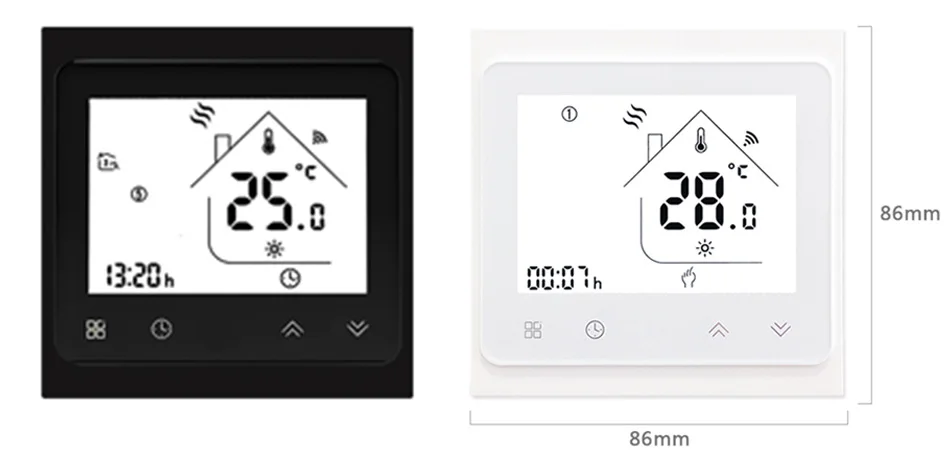

Installation Box: 86*86mm Square or European 60mm Round Box
Wire Terminals: Wire 2x1.5mm² or 1x2.5mm²
Protection Level: IP20
Buttons: Capactive Touch Buttons
Before Wir And Install:
1. Read the instructions carefully. Failure to follow them will damage the product or cause a hazardous conditions.
2. Check the ratings given in the instructions and on the product to make sure the product is suitable for your applications.
3. Installer must be a trained, experienced service technicia.
4. After installation finished, check out product operations as provided.
Packing List:
1x Thermostat
2x Screw
1x User Guide
1x Wall Plate
1x QC Passed

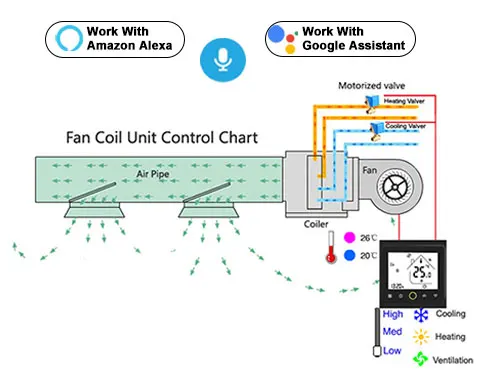

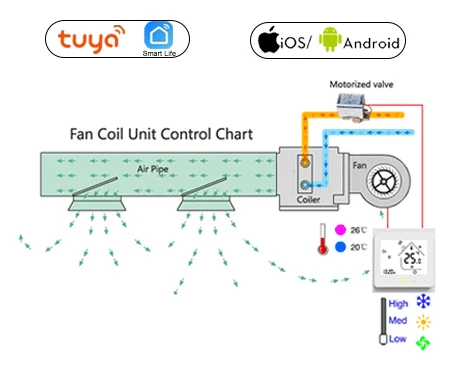

 2 Pipe Control Fan Coil Unit and 2 wired motorized Valve |  4 Pipe Control Fan Coil Unit and 2 wired heat valve and 2 wired cool valve |

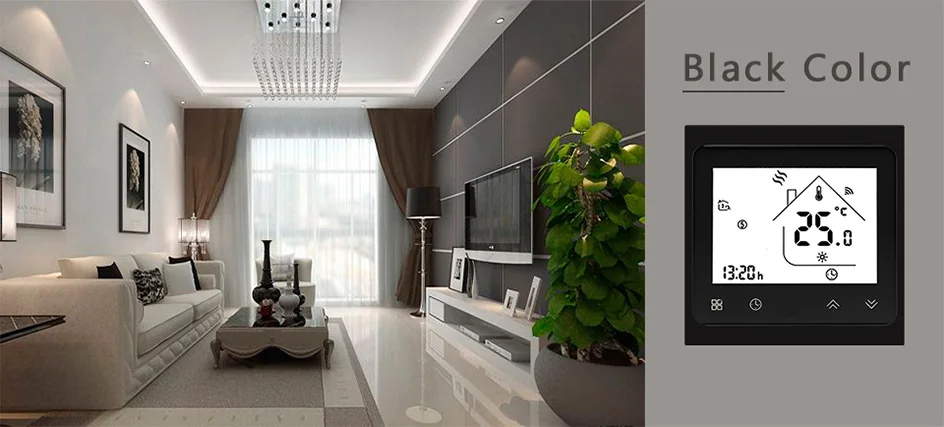

Black & White Color
Hands-Free Voice Control
Work with Amazon Alexa/Echo or Google Assistant

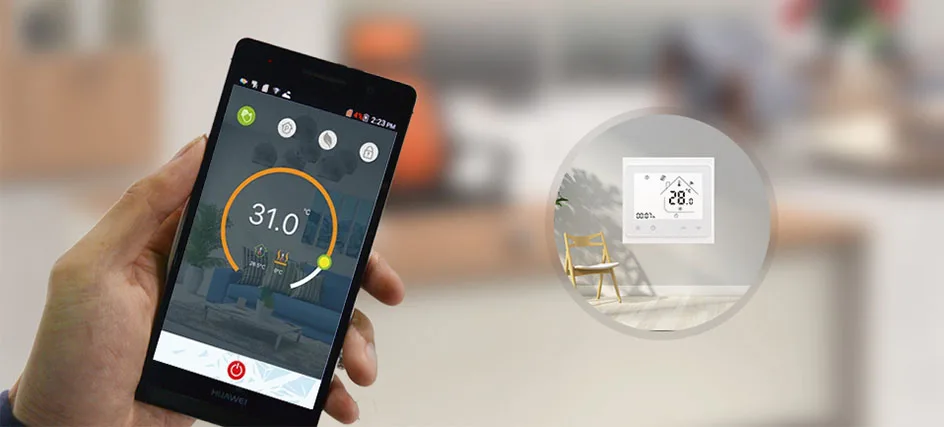

Control From Anywhere
Turn on your device before you come back home
When the thermostat is working, the button lights all the time

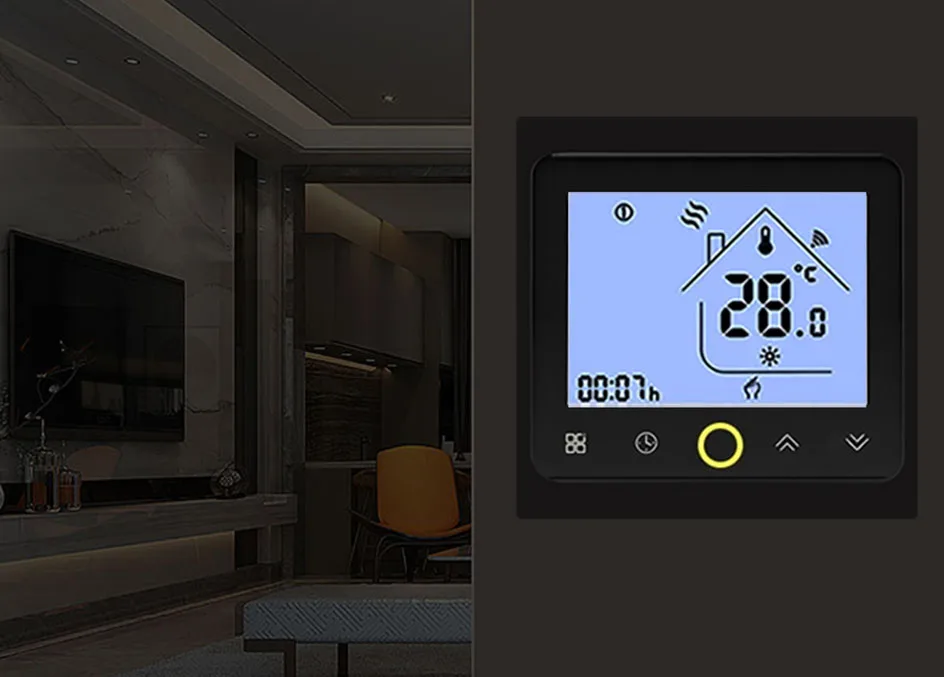

Soft Led Light Display
Advantages
Energy Saving: Low consumption and energy saving. Help you save money
Language: All setting languages hynchronize your time zone, address and language
Kid Lock: Kids lock function avoid kids mis-operate the thermostat
Precision: 0.5 ℃ Accuracy keeps temperature within the level you set.
Memory: Data memory when power is off.
Weekly Programmable
6 period per day
you can program the thermostat and let it work automatically
Selling Point Display
|
|  |
Wiring

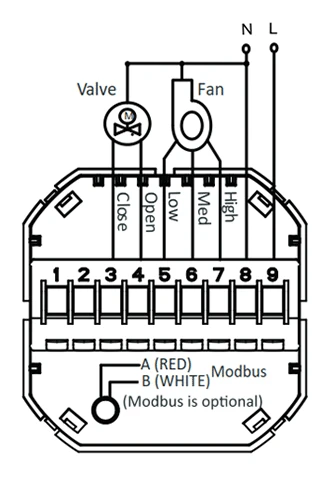

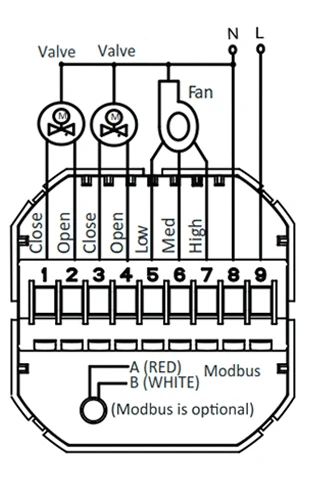

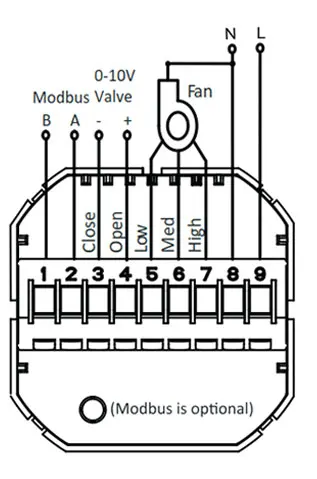

 AC 90-240V 50~60HZ 2 Pipe, ON-OFF |  AC 90-240V 50~60HZ 4 Pipe, ON-OFF |  AC 90-240V 50~60HZ 2 Pipe, Modbus |

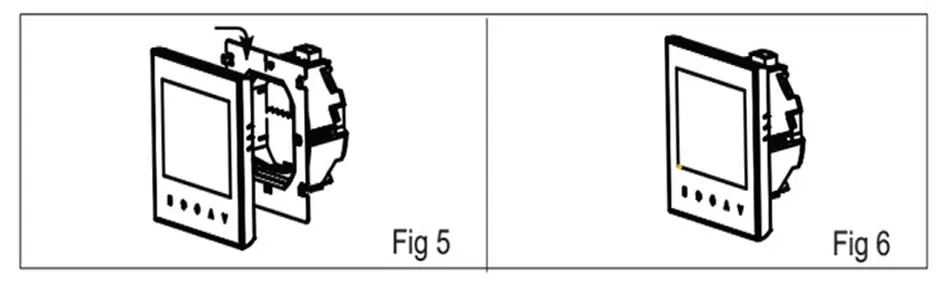

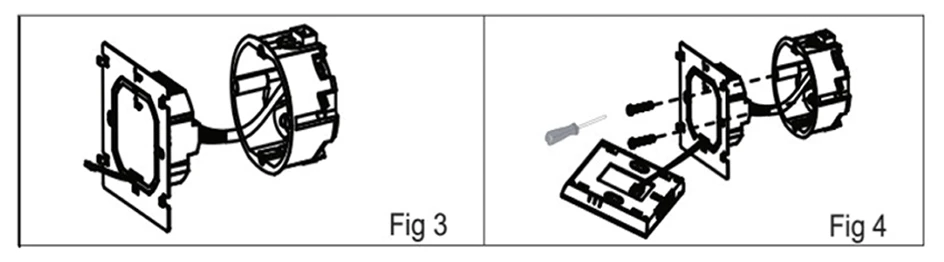

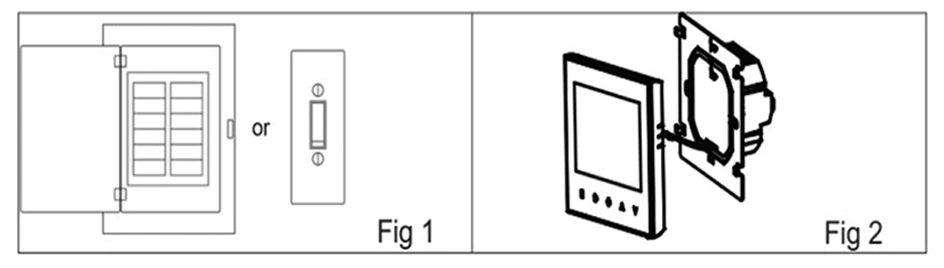

Installation
Suitable for a standard 86mm box or European 60mm battress box
Step1. Keep the electricity off  |
 |
 |
