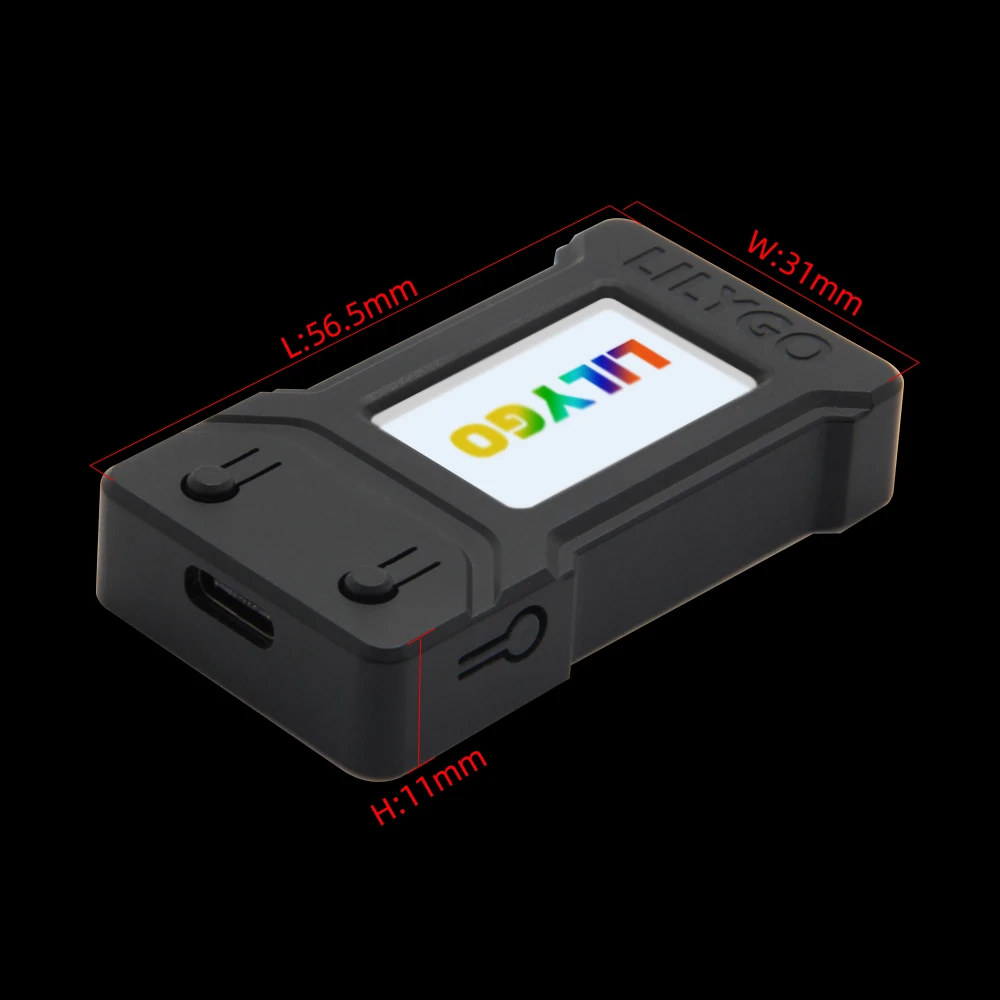

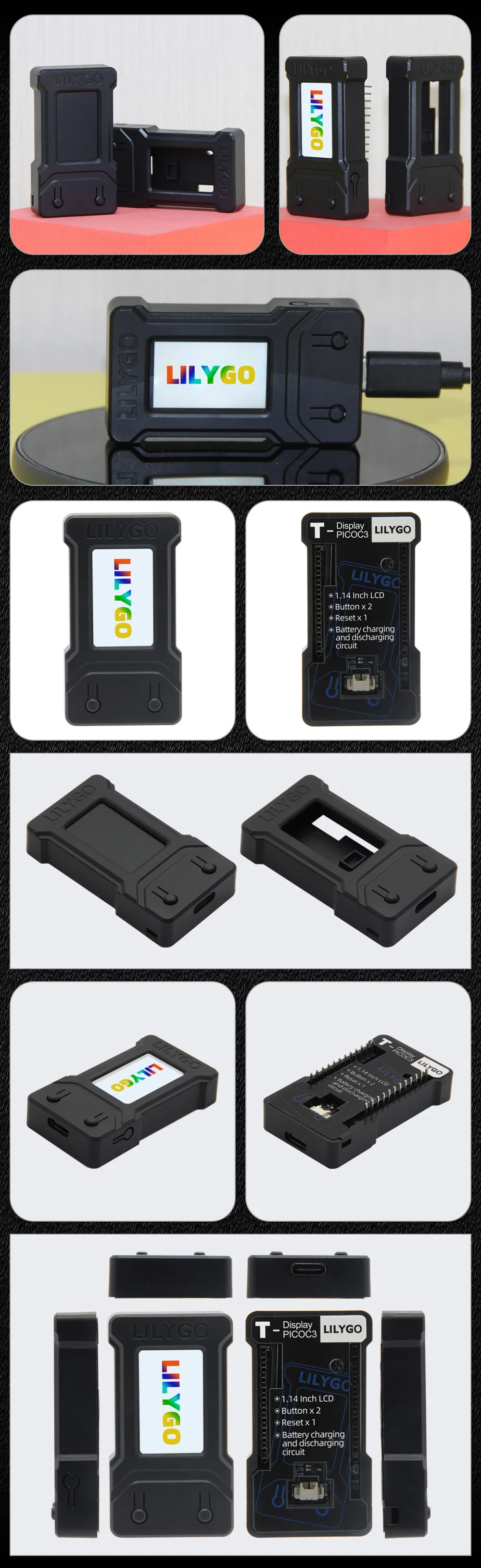

릴리고T 디스플레이 T-PicoC3 ESP32 ESP32-C3 RP2040 라즈베리 파이 모듈 1.14 인치 LCD IPS HD 스크린 개
|
|||||||||||||||||
| 商品購入についてのご案内 | |||
|
|||
 |  |  |

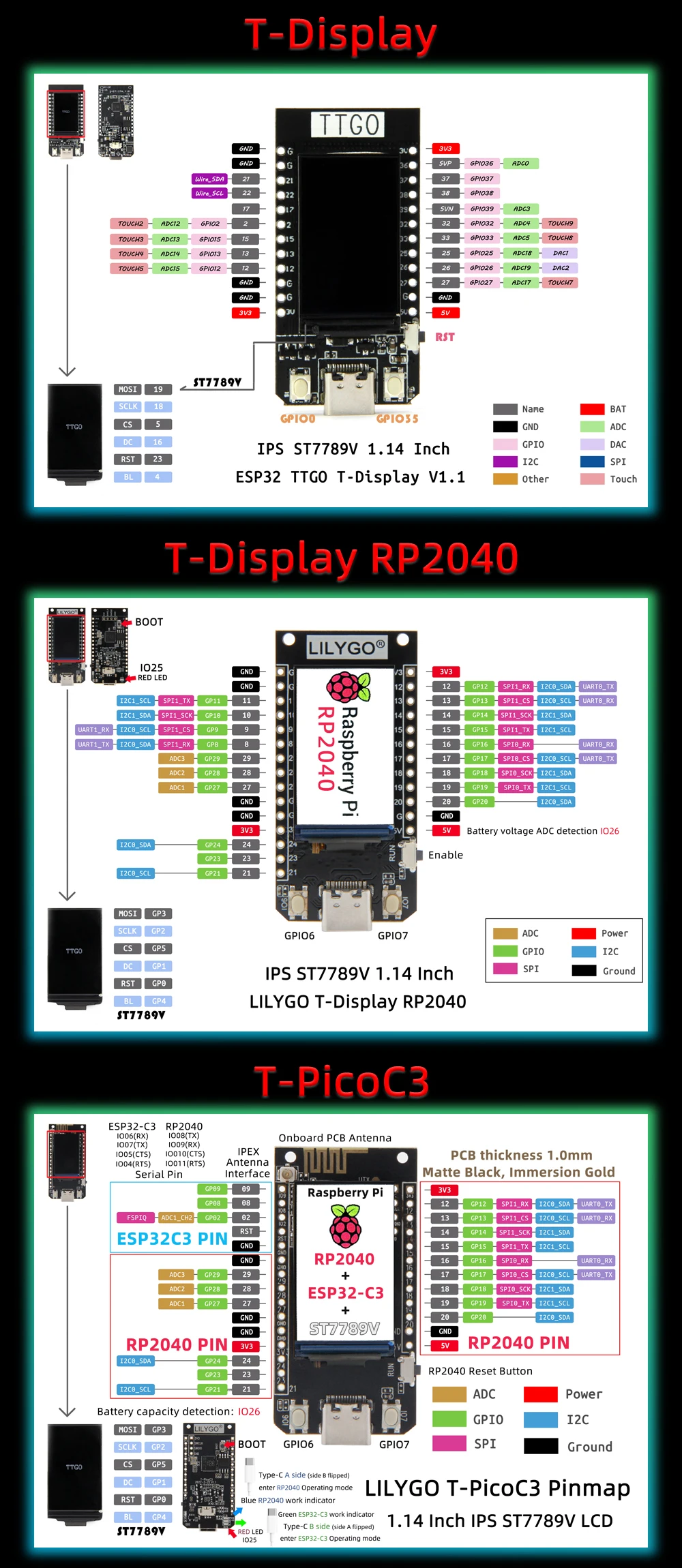

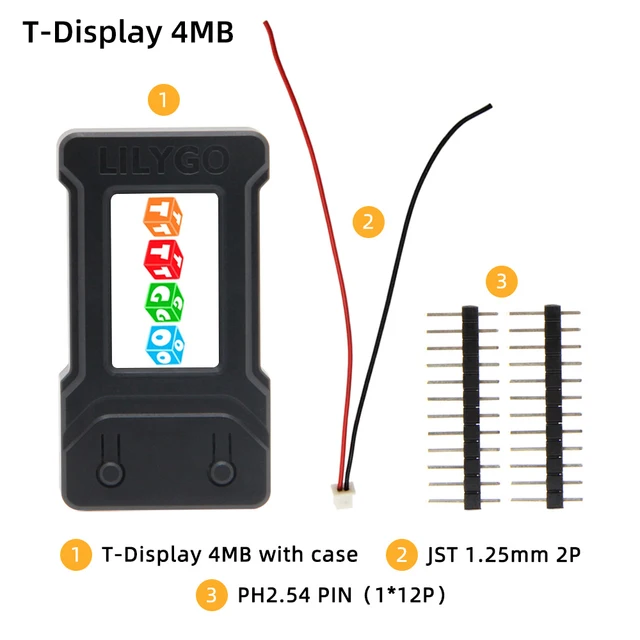

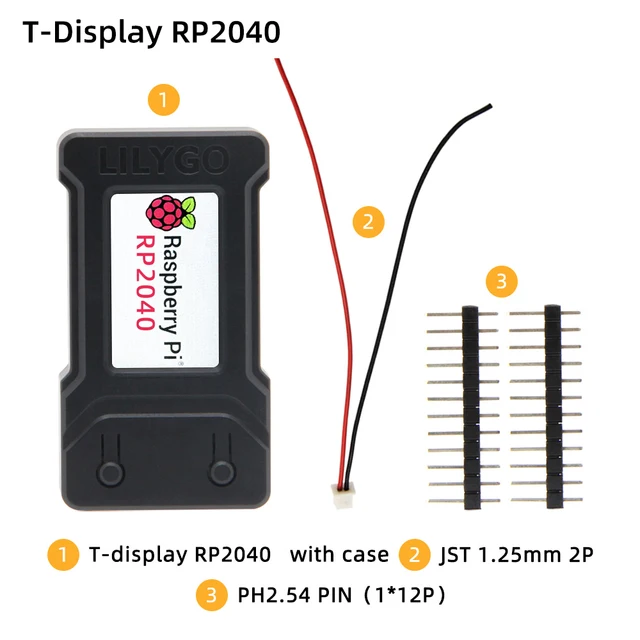

[01]T-Display 4MB | [02]T-Display 16MB | [03]T-Display RP2040 |
 | ||
[04]T-PicoC3 |
|

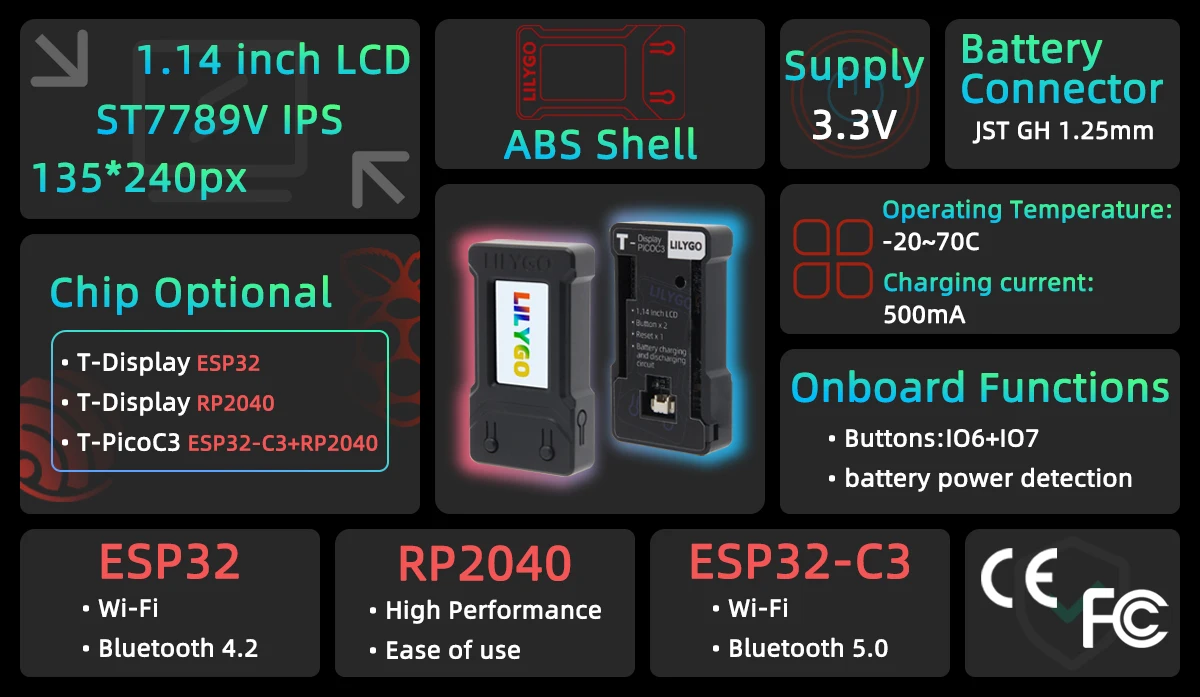

T-Display Specifications |
||||
MCU |
ESP32 Xtensa dual-core LX6 microprocessor |
||||
Wireless Connectivity |
Wi-Fi 802.11 b/g/n,BL V4.2+BLE |
||||
Programming Platform |
Arduino-ide, Micropython |
||||
Serial chip |
CH9102 |
||||
Version Optional |
Flash: 4M/16M |
||||
Onboard functions |
Buttons : IO06+IO07 |
||||
battery power detection |
|||||

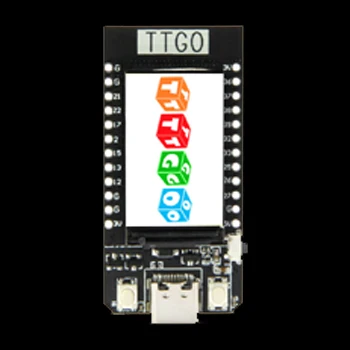

LILYGO TTGO T-Display |
|||||
1.14 inch ST7789V IPS LCD |
|||||
Resolution |
135x 240 |
Features |
High Density 260ppi |
||
Drive |
ST7789V |
Interface |
4-Wire SPI |
||
Screen Size |
1.14"diagonal |
Screen Type |
TFT IPS LCD |
||
Screen color |
Full color |
||||
Working PowerSupply |
3.3V |
||||
Operating Temperature |
-20-70℃ |
||||
Support USB/Li-Po Battery Dual Power Suppl |
|||||
JST Connect type |
JST GH 1.25mm |
|
|||
|
|
||||
|

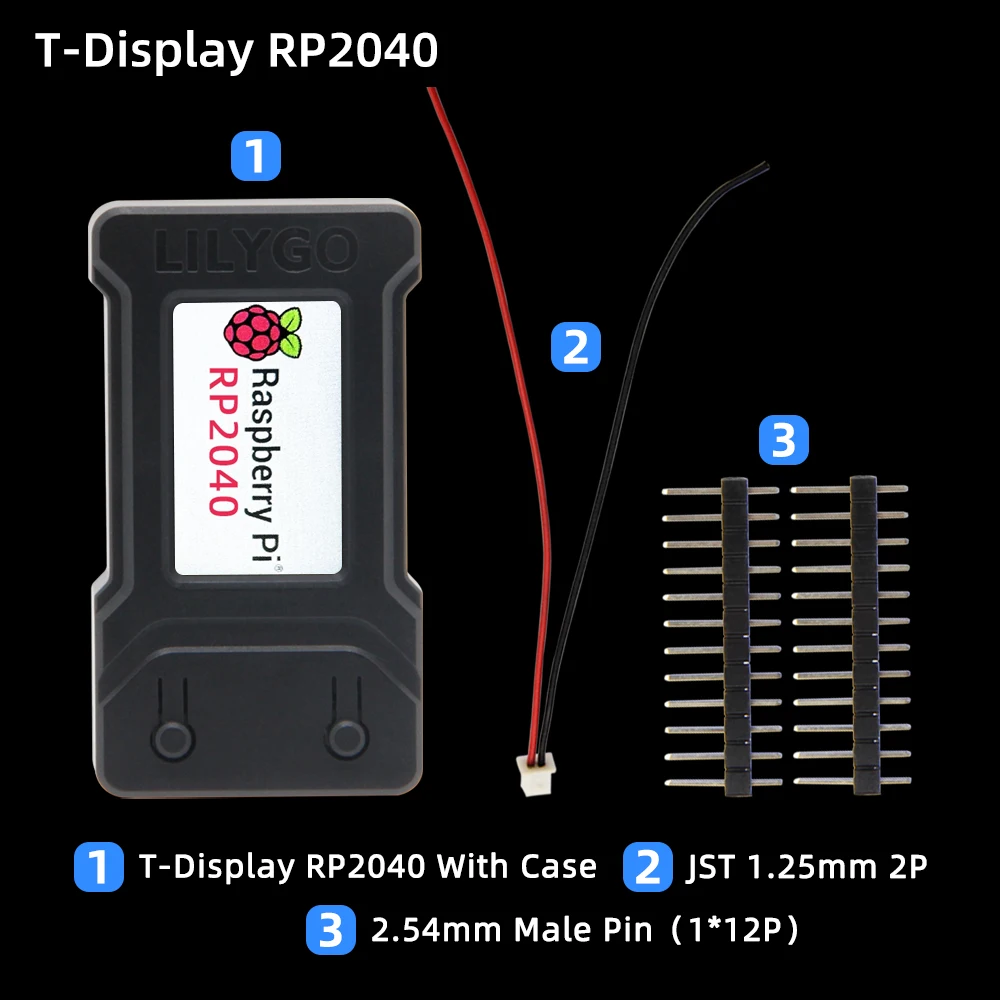

T-Display RP2040 Specifications |
||||
MCU |
RP2040 Dual ARM Cortex-MO+ |
||||
FLASH |
4MB |
||||
Bus Interfaces |
2 UART, 2x SPI, 2x12C, 6 PWM |
||||
Programming language |
C/C++, MicroPython |
||||
Support machine learning library TensorFlow Lite |
|||||
Onboard functions |
Buttons : IO06+IO07 |
||||
battery power detection |
|||||
LILYGO TTGO T-Display |
|||||
1.14 inch ST7789V IPS LCD |
|||||
Resolution |
135x 240 |
Features |
High Density 260ppi |
||
Drive |
ST7789V |
Interface |
4-Wire SPI |
||
Screen Size |
1.14"diagonal |
Screen Type |
TFT IPS LCD |
||
Screen color |
Full color |
||||
Working PowerSupply |
3.3V |
||||
Operating Temperature |
-20-70℃ |
||||
Support USB/Li-Po Battery Dual Power Suppl |
|||||
JST Connect type |
JST GH 1.25mm |
|
|||
|

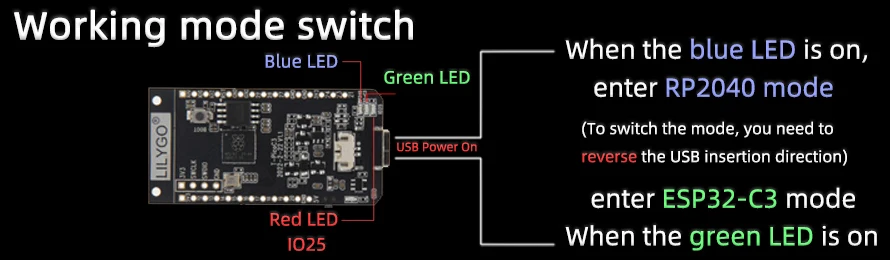

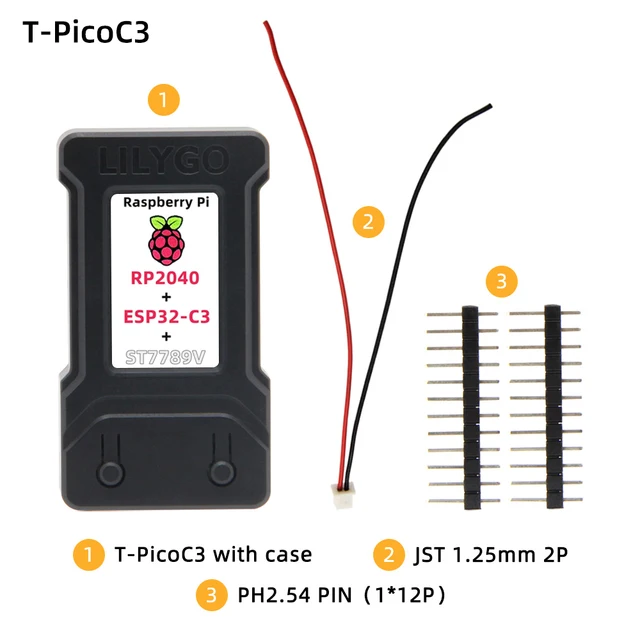

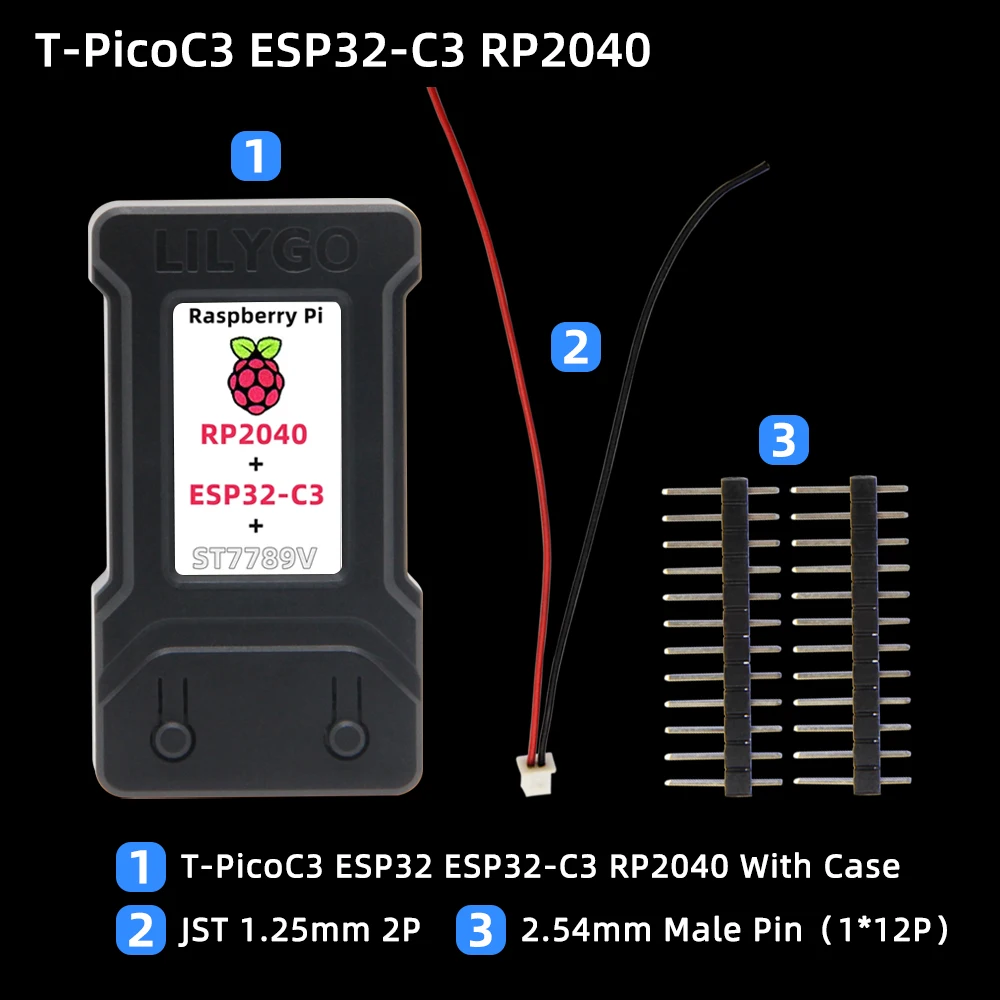

T-PicoC3 ESP32-C3 RP2040 Specifications |
||||
MCU |
RP2040 Dual ARM Cortex-MO |
FLASH: 4MB |
|||
ESP32-C3 Support Wi-Fi,Bluetooth V5.0+BLE |
|||||
Programming language |
C/C++, MicroPython |
||||
Support machine learning library TensorFlow Lite |
|||||
Onboard functions |
Buttons : IO06+IO07 |
||||
battery power detection |
|||||
LILYGO TTGO T-Display |
|||||
1.14 inch ST7789V IPS LCD |
|||||
Resolution |
135x 240 |
Features |
High Density 260ppi |
||
Drive |
ST7789V |
Interface |
4-Wire SPI |
||
Screen Size |
1.14"diagonal |
Screen Type |
TFT IPS LCD |
||
Screen color |
Full color |
||||
Working PowerSupply |
3.3V |
||||
Operating Temperature |
-20-70℃ |
||||
|
|||||
