산업용 임베디드 PCAP 터치 스크린 프레임 TFT LCD 1280 VGA 인치 포함 와이드 인터페이스 USB 800 12 HDMI

세부 사항

항목	설명
브랜드 이름	NoEnName_Null
디스플레이 비율	16:10
브래킷 유형	다른
고농도 화학 물질	없음
해결	1280 x 800
높은 동적 범위	없음
스크린 곡률	없음
수평 시야각	150°
패널 유형	TFT
디스플레이 크기	12"
스크린 유형	와이드 스크린
수직 시야각	120 °
인터페이스 유형	VGA의 경우
흑백 응답 시간	8 ms
밝기	300cd/m
스크린 표면	GLOSSY
신청	2 바탕 화면
대조 비율	500:1
출시일	2017
해결책	1280 x 800
특징	스피커
특징	접촉 스크린
제품 상태	STOCK
증명서	세륨
증명서	ROHS
재생률	60HZ
Monitor size	282.3195.945mm
Display size	260.3*162.4mm
Touch type	resistive /capacitive touch

상품 이미지

상세 설명

Product Features:

1. Multi interface: VGA HDMI USB;

2. With 16:10 12.1 inch screen design, the image is clear and delicate, and the color is bright;

3. On the back it have the VESA 75*75 , you can use it for wall mount;

4. Can use for many devices;

5. Multifunction: nontouch /resistive touch /capacitive touch

Product Details:

The specifications of 12 Inch 16:10 Industrial Monitor
LCD Panel	Model Number	G1216/GC1216R
	Screen Ratio	16:10
	Resolution	1280*800
	Brightness	300 cd/M²
	Contrast	800:1 (Typ.)
	Backlight	LED backlight
	Response Time	5 (Typ.)(Tr+Td) ms
	Viewing Angle	80/80/80/80 (Typ.)(CR≥10)

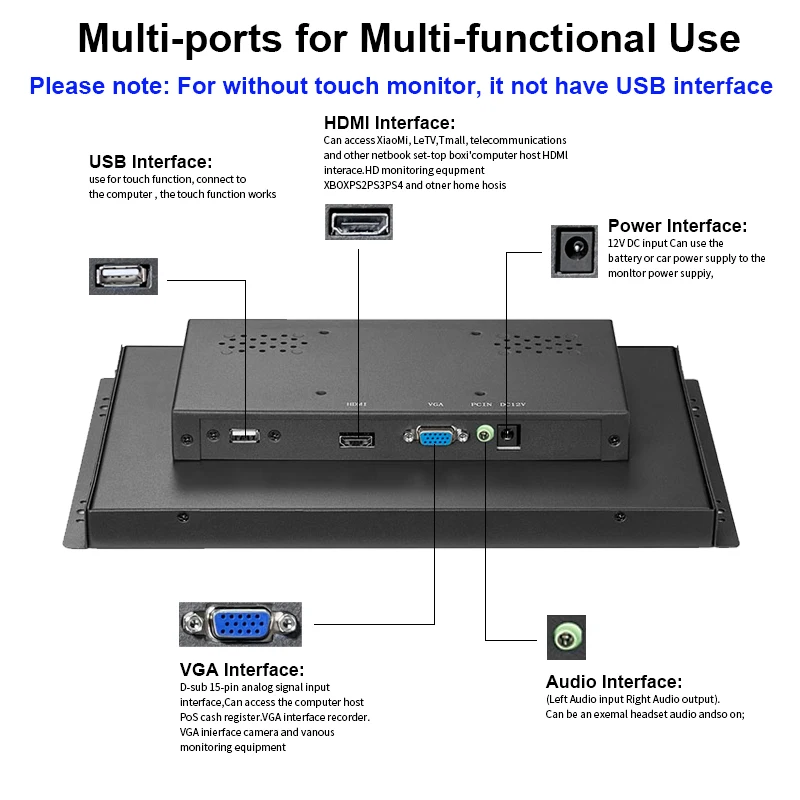

	Interface	VGA/HDMI( without touch) VGA/HDMI/USB( touch)
Touch functions (optional)	Touch Screen	No touch or Resistive touch screen optional
	Touch Interface	USB
	Touch points	1 point touch
Product Features	Active Area/Display Area	260.3*162.4mm
	Monitor size	307.3195.945mm
	Working Temperature	-10℃--+60℃
	Storage Temperature	-20℃--+70℃
	Color	Black
Advantages	Cold rolled sheet metal material, strong casing, shockproof, antiinterference; Poweron boot function, timing boot function; Support wallmounted, desktop, embedded installation; Using industrialgrade highbrightness display, longer life; Industrial design natural heat dissipation; Touch screen, stable performance, accurate positioning without drift, high sensitivity.
Accessories	Power cable, VGA cable optional, USB cabel(with touch functions), frame, Manual.
Service	Aftersales service	1 year warranty
	Personalized customization	Customizable products, appearance, wide temperature screen, high brightness screen, high resolution, wide voltage, etc. OEM/ODM are all available

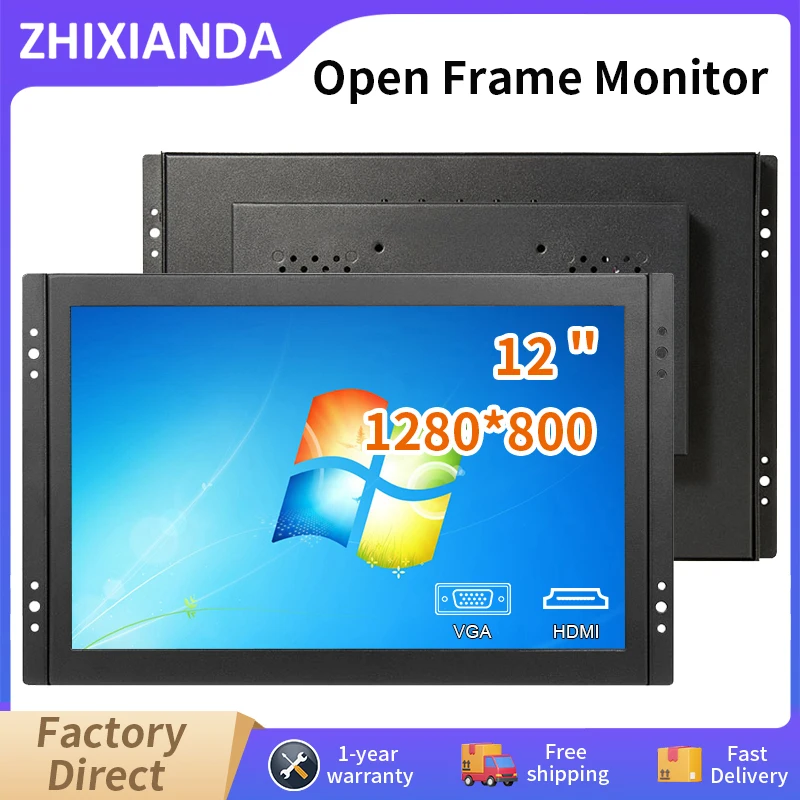

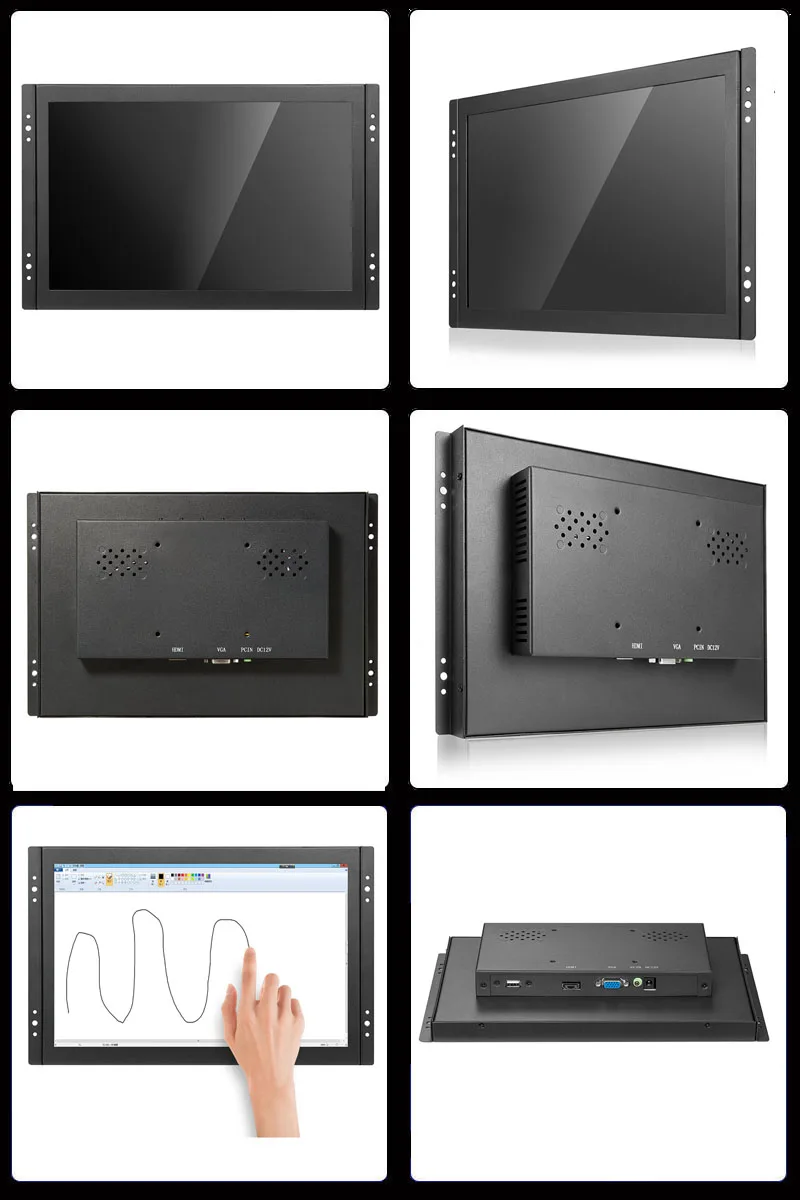

Product Pictures:

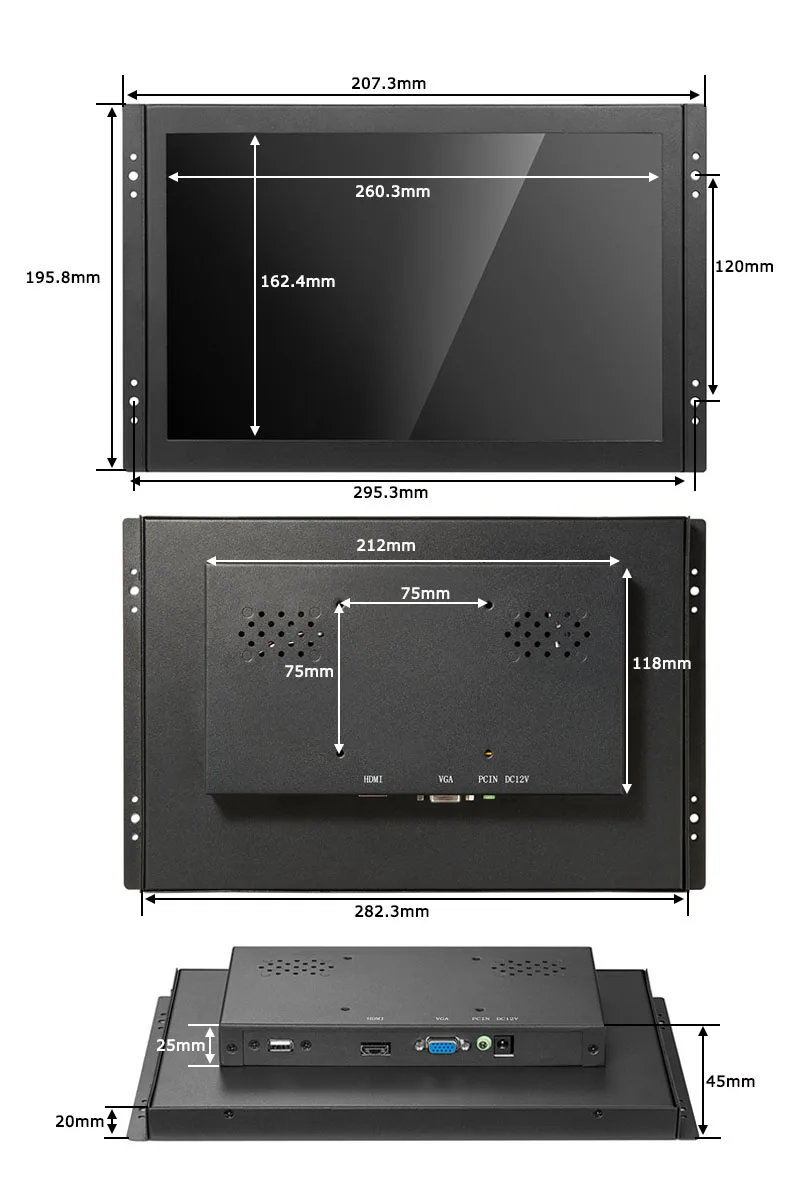

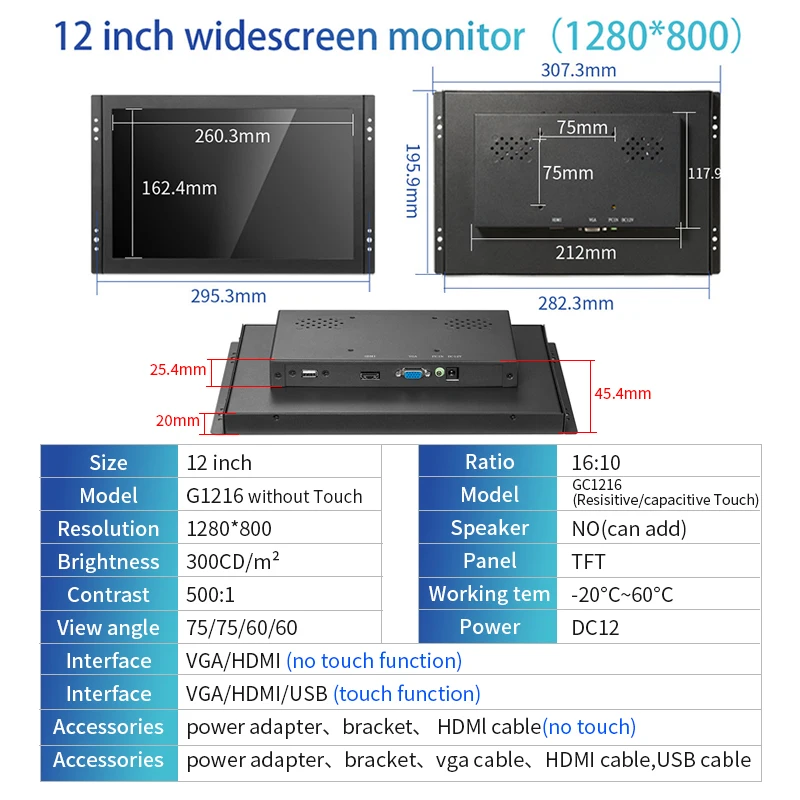

Product Dimensions:

Accessories:

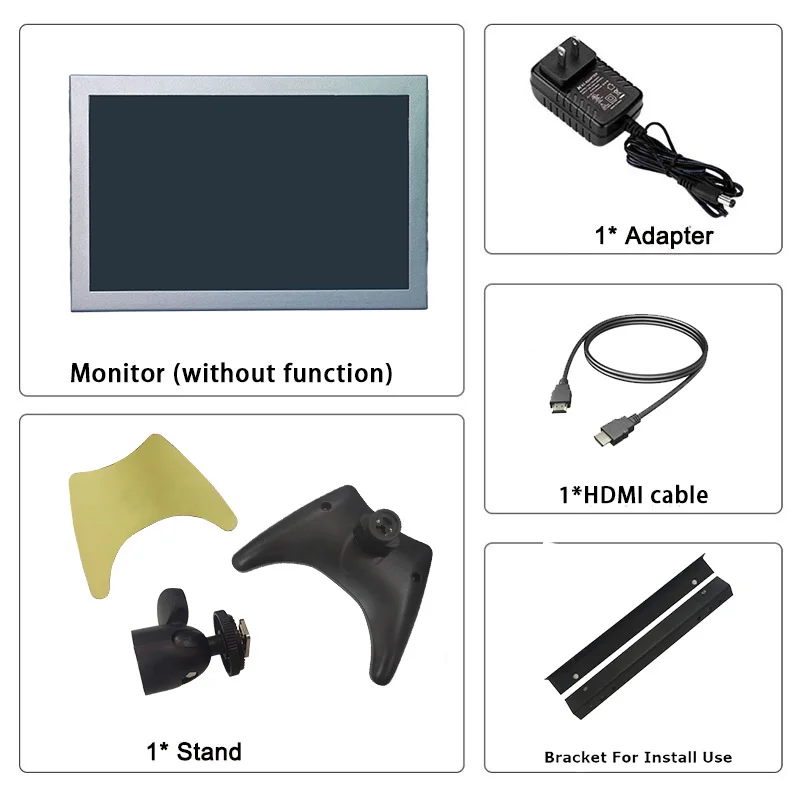

without touch monitor

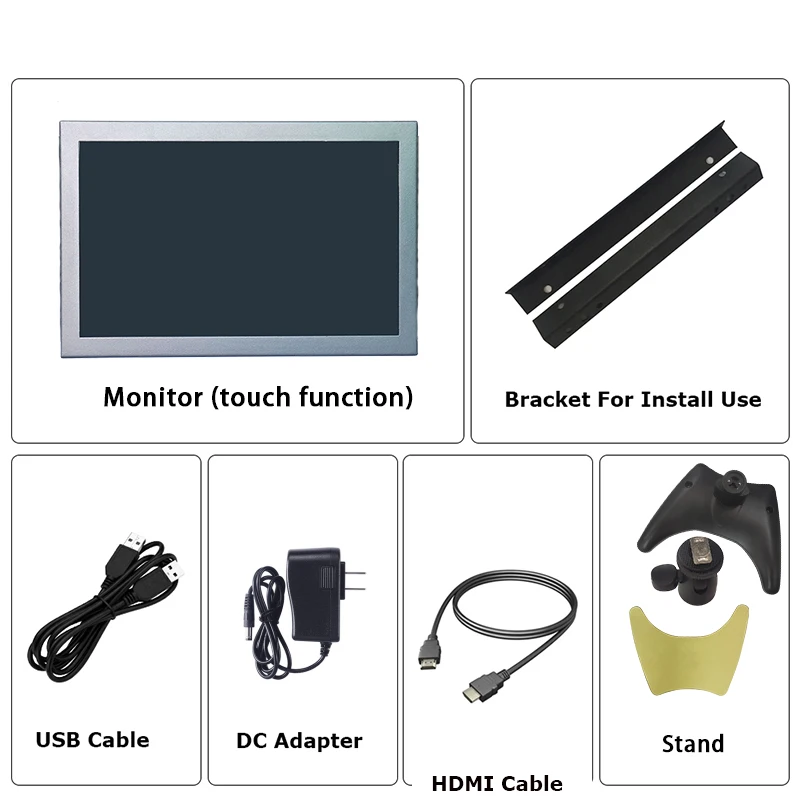

Touch monitor:

Application:

Support five channel video input mode, builtin speaker, TV compatible, as well as professional VGA, also customized monitoring mode, can be done as A liquid crystal display, PC display, gaming PC monitor, laptop screen extender,led display panel,touch pc monitor while supporting the HDMI input.

Application in the CCTV monitor,medical monitor,security monitor,industrial touch monitor PC, robot monitor,CNC monitors and optical industry, medical industry, security industry, video industry, Photographed, Education and training, product marketing, military industry, electronics manufacturing, industrial manufacturing, etc..
