| 항목 | 설명 |
|---|---|
| 브랜드 이름 | 없음 |
| 고농도 화학 물질 | 없음 |
| 유형 | 다른 |
| Type | Power Supply Adapter, Universal Adapter, Desktop Charger, Fast Charger |
| Material | Aluminum, Aluminium Alloy |
| Function | PD, PD 3.0, PD 2.0, PD3.1 |
| Brand Name | OEM |
| Model Number | PD-20 |
| Port | AC, 20x USB C |
| Input voltage and current | AC110V, AC220V |
| output voltage and current | 9V/2A, 5V/2.4A, 12V/1.5A, 20V/1A |
| Maximum Output Power | 300W |
| Place of Origin | Guangdong, China |
| Ports | 20 |
| Input | 110V/220V |
| Output | DC5V/9V/12V/20V |
| Application | phone, tablet, ps4,powerbank etc |
| Size | 290*130*75mm |
| Weight | 1.8kg |
| Warranty | 2 years |






200W 20 Port Charging Hub Brick PD 65W Laptop Charger Adapter USB C Fast Charger Block
Welcome to visit our company

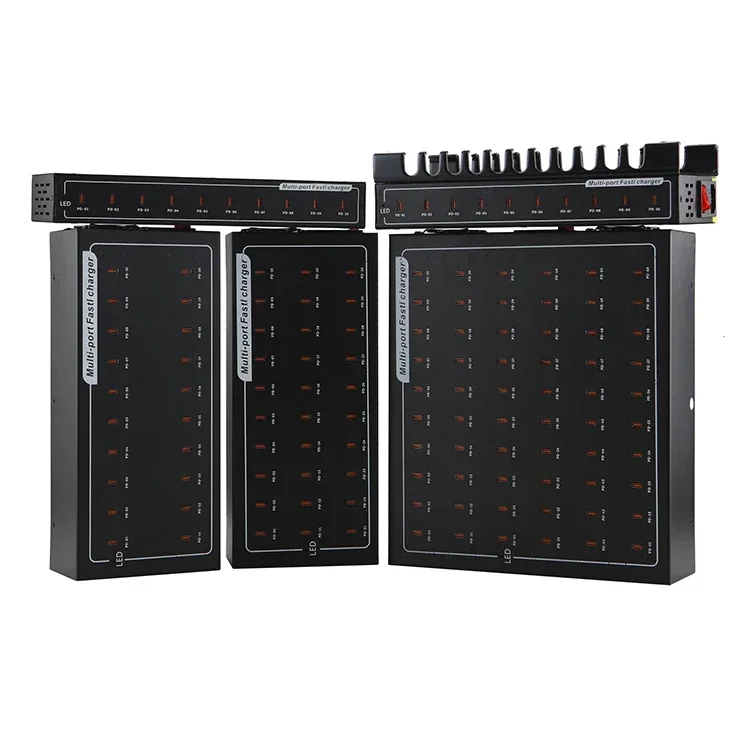

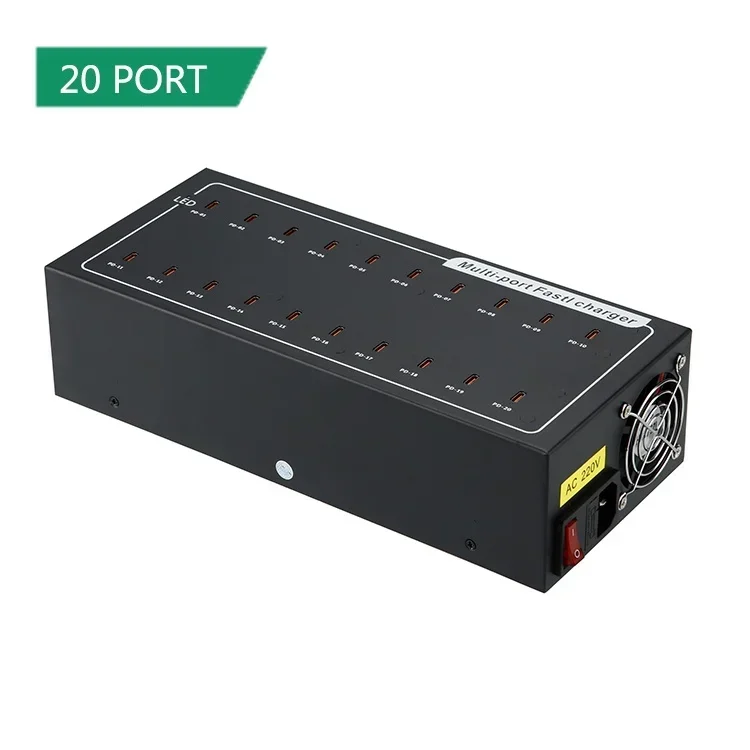

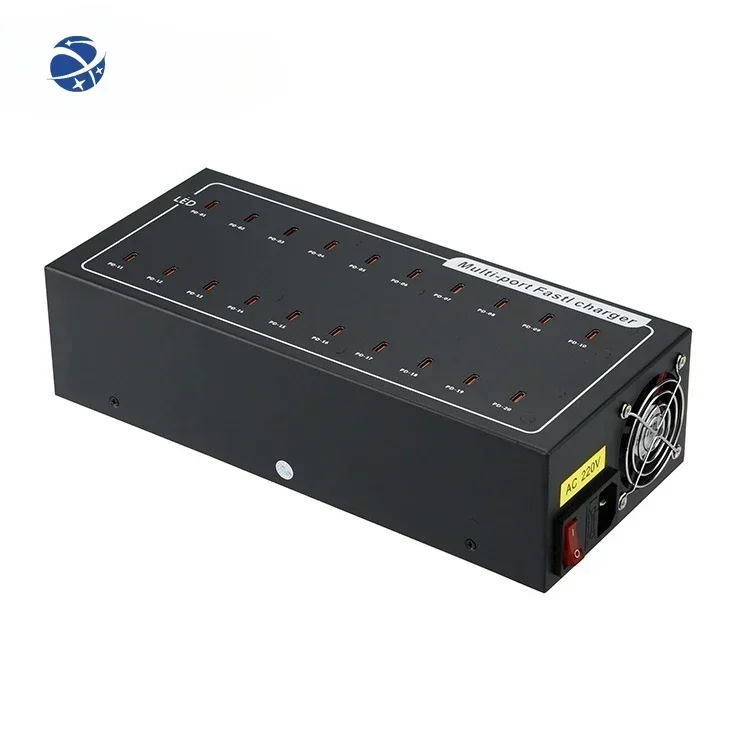

20 USB C PORTS

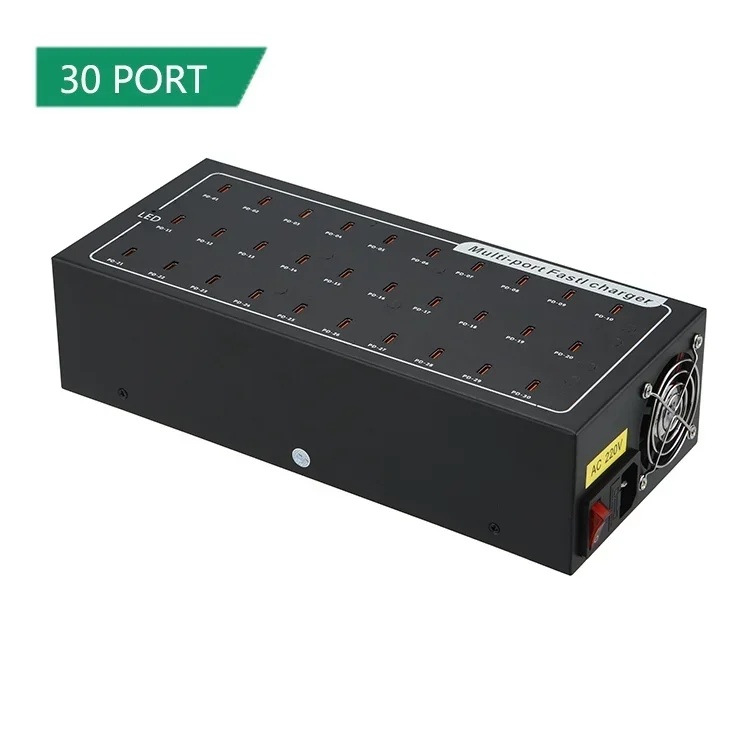

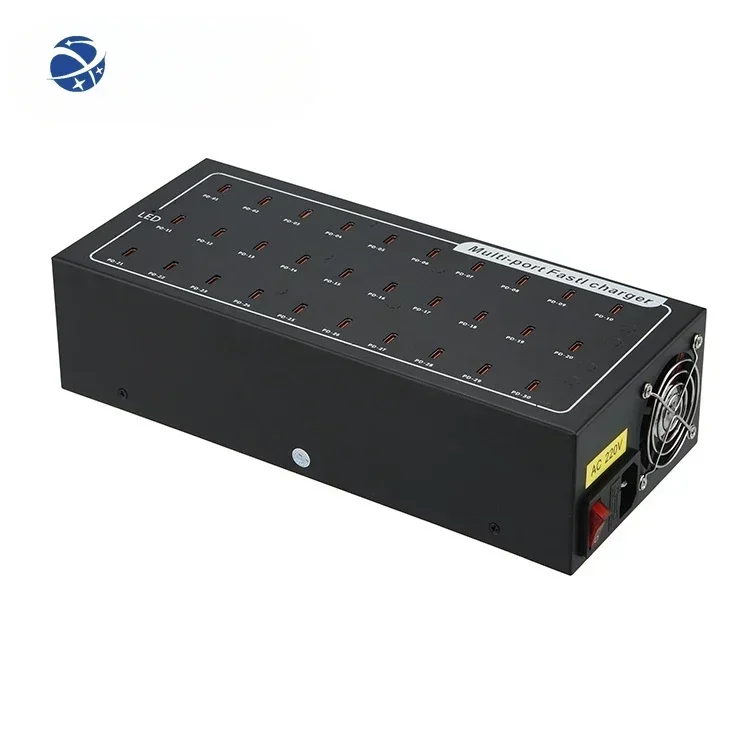

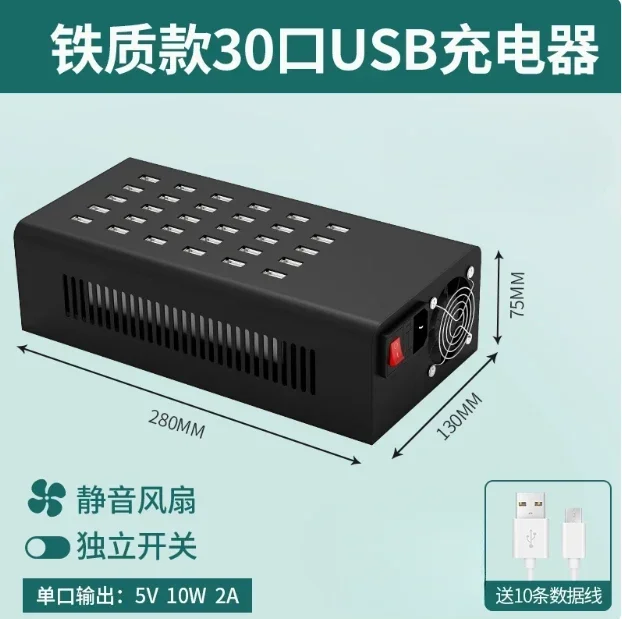

30USB C Ports

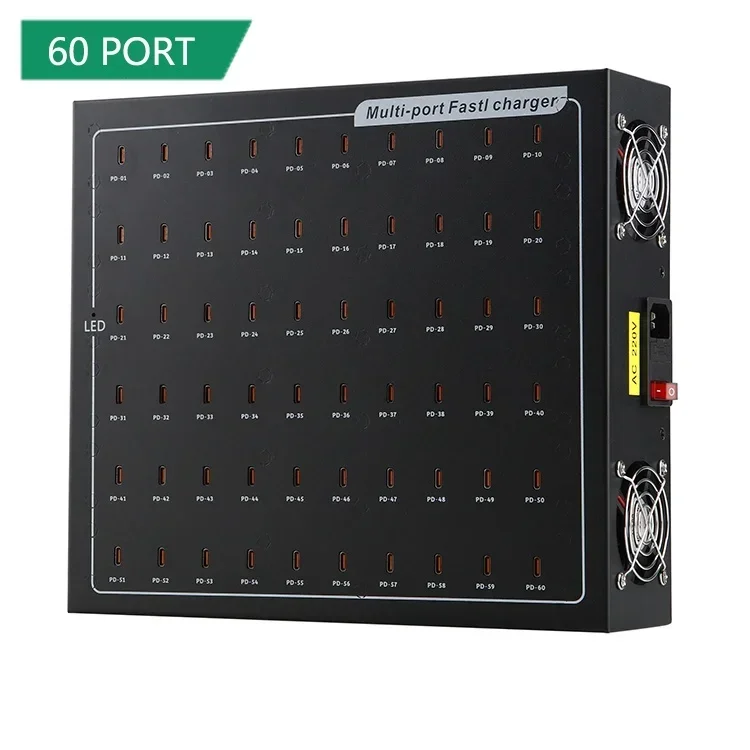

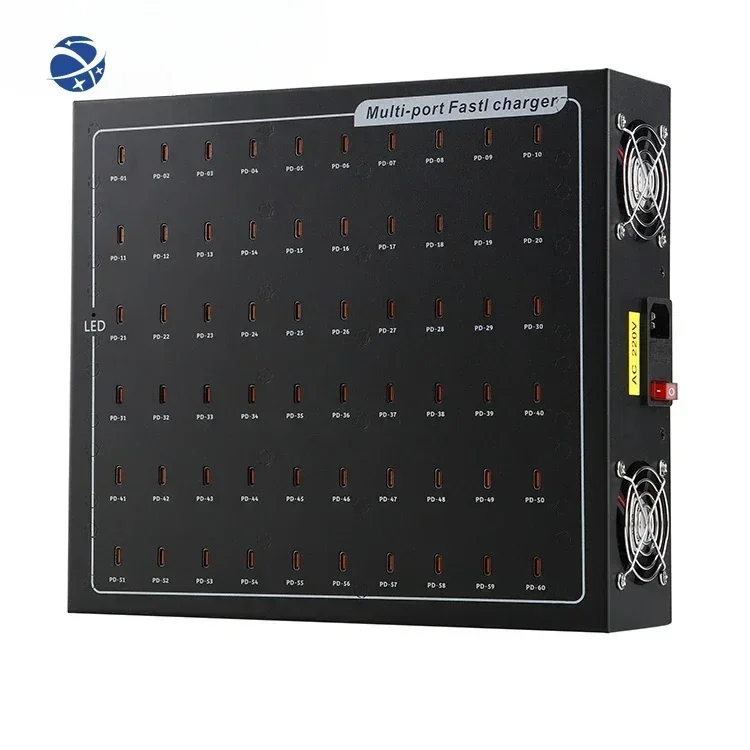

60USB C Ports

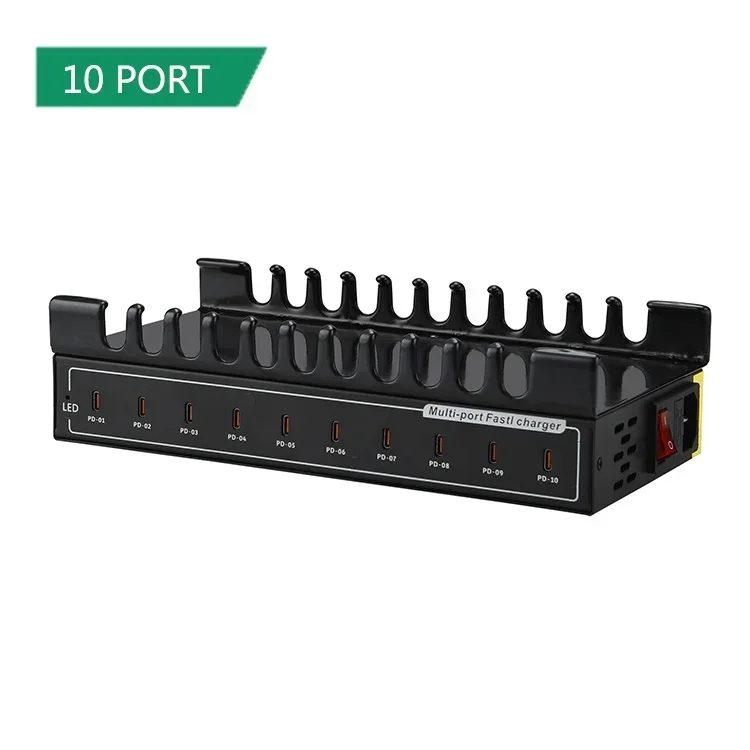

10USB C Ports with Orginizer

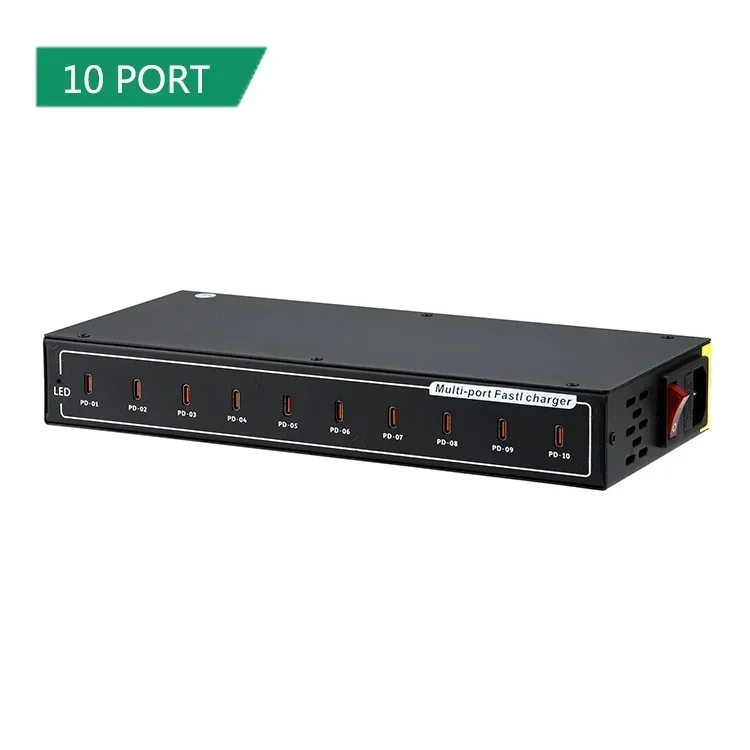

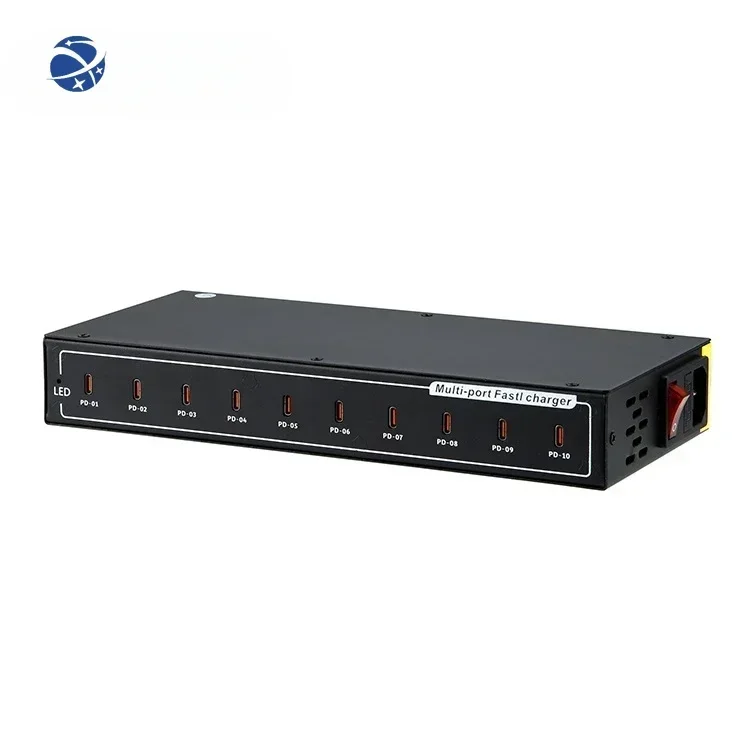

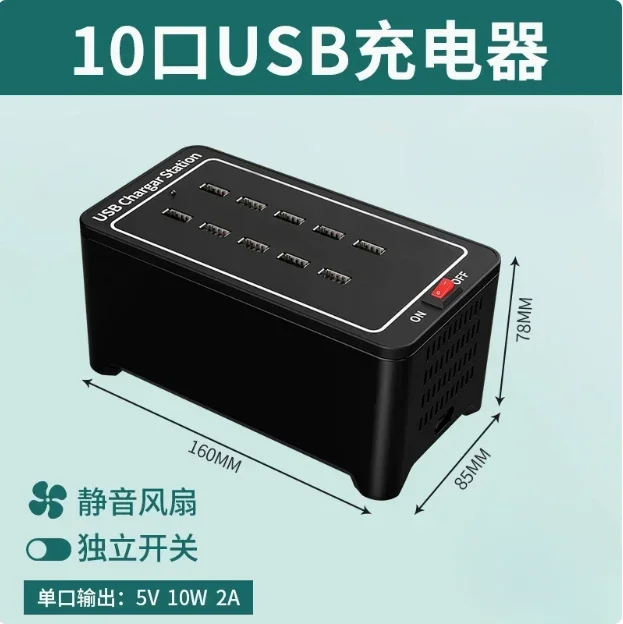

10USB C Ports


| Product Name | USB C Fast Charger Block | Brand | OEM |
| Ports | 20 | Material | Aluminum alloy |
| Siz | 29*13*7.5cm | Weight | 1.8KG |
| Rated Power | 300W | Input voltage | 110/220VAC |
| Output voltage | DC5v/9v/12v/20v | Max input current | 2.4A |
| Max rated current | 2.4A | Customization | Available |
Our USB C Fast Charger Block Advantage
New Technology, Adopt Latest generation USB HUB controller technology, ismart technology, no worried about safe charger.
Independent work: each interface has independent chip, effectively prevent the mutual interference between each port, ensure the safety of charging equipment.
Industrialstrength:Impressive 300w Power Output, Massive power to charge 20 tablets or phones simultaneously at full speed.

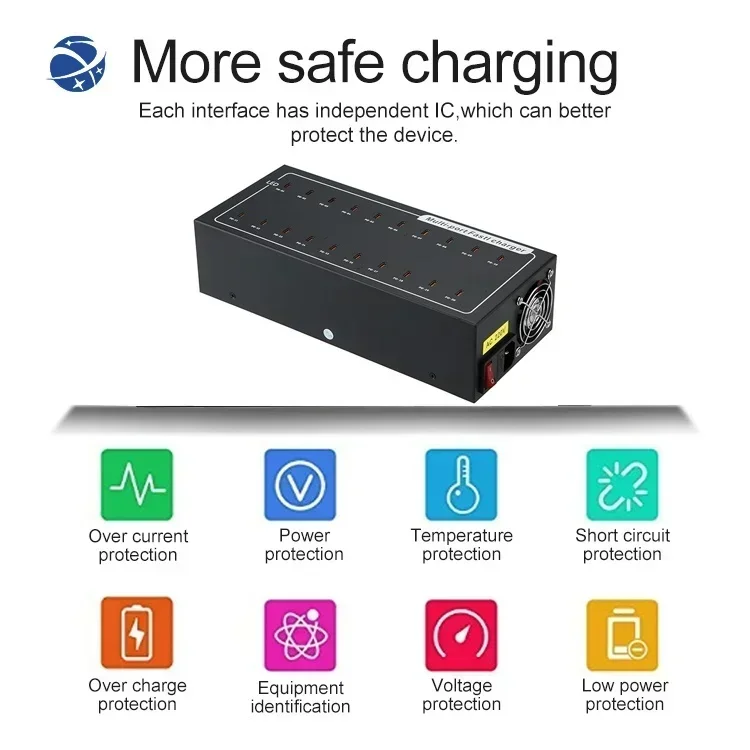

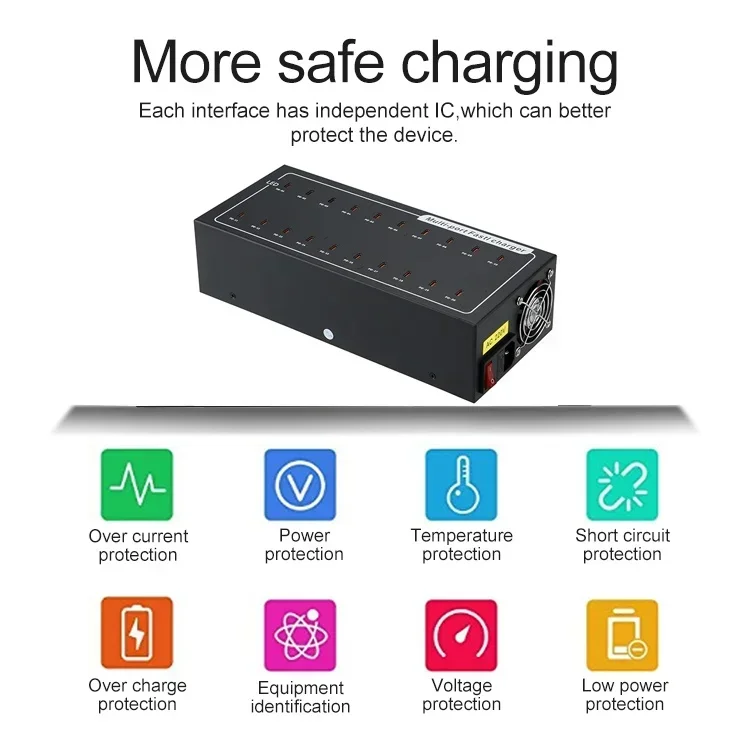

Advanced protection, protecting your devices from electric leakage, shortcircuit, overheating, input and output overvoltage, output over current, enter antireverse, flame retardant, overcharge and over discharge.
>>>Click here to get more information from us now

Charger not working
1.AC switch light is not on: please check the input voltage if matched to rated working voltage.
2.AC switch light is not on: power input line is not plugged in correctly, please check and unplug and plug it.
3.AC switch light is not on: please check the switch fuze, and replace it with backup fuze.
4.AC switch light is on but charging indicator is not on: please check if there is any shortcircuit for USB output end.
5.USB port looses contact: please double unplug and plug charging cable or replace the charging cable with new one.
Charging speed is low or some ports can'T charge
Core of charging cable is too small(can'T be seen from outside), which leads poor electricity conduct. Please choose standard 1A or 2A charging cable.
USB charging cable is too long, which cause big electricity loss. Please try shorter cable, 0.5m is recommended.
USB port of cable is wore out or dirty, please try new cable.
Charging power is out of range of rated power.
Other problems which are not mentioned
Please contact our sales team, we will offer after sales service and technical guide promptly.
If you have special demand on the product, it could be communicated and OEM produced.
